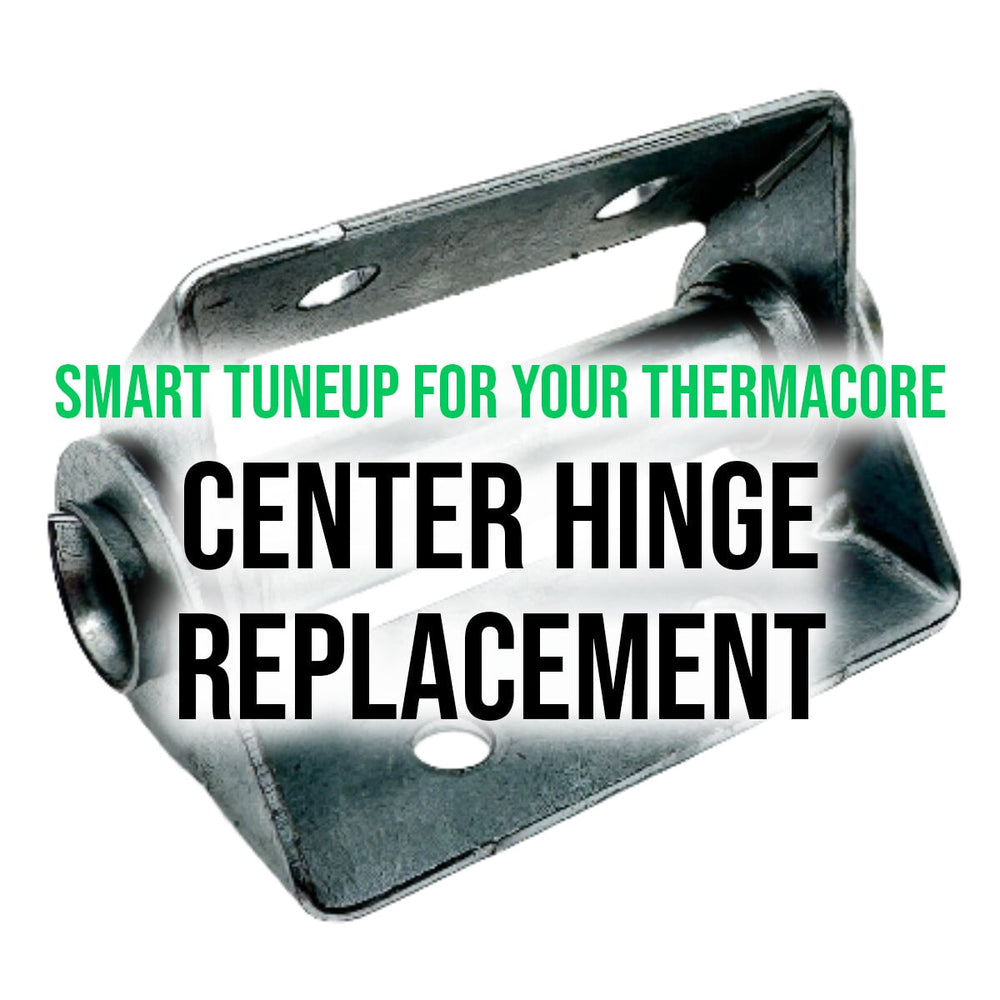

Your Thermacore insulated steel door was engineered for decades of reliable service—but only if its hinges keep every panel tightly aligned. The Center Hinge Assembly (Part # WD‑407533.1001) is the workhorse that joins middle sections that don’t carry rollers. When that hinge fatigues or corrodes, you’ll feel the door shake, hear metal rub, and watch precious heated or cooled air leak out.
Meet the 14‑Gauge Galvanized Upgrade
- Commercial‑grade 14‑gauge steel: 33 % thicker than many OEM hinges, so it resists flex and cracking under high‑cycle use.
- Exact Thermacore fit: 2 ¼″ L × 2 ⅝″ W × 1 ⅛″ H matches the original hole pattern—no drilling, no shims.
- Galvanized & zinc‑coated: Guards against salt, humidity, and daily wash‑downs in auto shops, warehouses, and agricultural bays.
- Tighter panel seal: Restores factory‑spec spacing to curb air leakage and maintain the door’s published R‑value.
- Budget saver: Swap a $10 hinge in 10 minutes instead of paying $300+ for an emergency service call or warped‑panel replacement.
Why You Might Need a New Center Hinge
- Visible cracks or elongation around the barrel—often the first sign of metal fatigue.
- Door “smiles” or “frowns” as it opens, indicating misaligned middle panels.
- Louder operation after a spring change; fresh torsion force exposes weak hinges.
- Energy bills creeping up because panels no longer seal flush.
DIY‑Friendly Installation (No Pro Required)
All you need is a 7/16″ nut driver or socket and a pair of locking pliers:
- Unplug or lock out the opener and clamp the track above a roller for safety.
- Open the door waist‑high so the hinge you’re replacing is eye‑level.
- Remove the two carriage bolts holding the old hinge and lift it off the pin.
- Slide the new hinge into place, reuse the original bolts, and snug them down.
- Cycle the door twice to confirm smooth travel and quiet operation.
Total time: 5–10 minutes per hinge. Replace both center hinges on a 12‑foot door in under half an hour—before the next coffee break.
How this Saves You Real Money
- Prevents panel bowing: Stiffer hinges distribute wind load so sections stay true.
- Extends roller & track life: Proper alignment means less lateral stress on bearings.
- Maintains insulation value: A tight hinge line reduces conditioned‑air loss, cutting HVAC runtime.
- Reduces emergency calls: Catching hinge wear early keeps you off the weekend‑rate service schedule.
Pro Tip: If one center hinge shows hairline cracks, the others aren’t far behind. Order spares now and swap the set in one visit to avoid downtime.
Frequently Asked Questions
Q: Will this hinge fit my residential Thermacore door?
A: Yes—Thermacore uses the same 2 ¼″ bolt‑spacing on residential and commercial models. Just confirm your existing hinge is stamped “Center” or has no roller barrel.
Q: How many center hinges does my door have?
A: Count the horizontal panel seams that don’t have rollers. A typical 4‑panel door has two center hinges per side, but wide commercial doors may use three.
Q: Do I need new bolts?
A: No. The factory carriage bolts are Grade‑2 steel and can be reused unless threads are stripped.
Q: Is lubrication required?
A: The hinge pivots on a fixed barrel, not a pin, so a light annual spray of garage‑door lubricant is plenty.
Q: What if my door is still noisy?
A: Check your rollers and top/bottom brackets. Replacing worn rollers alongside new hinges delivers the biggest noise reduction.
