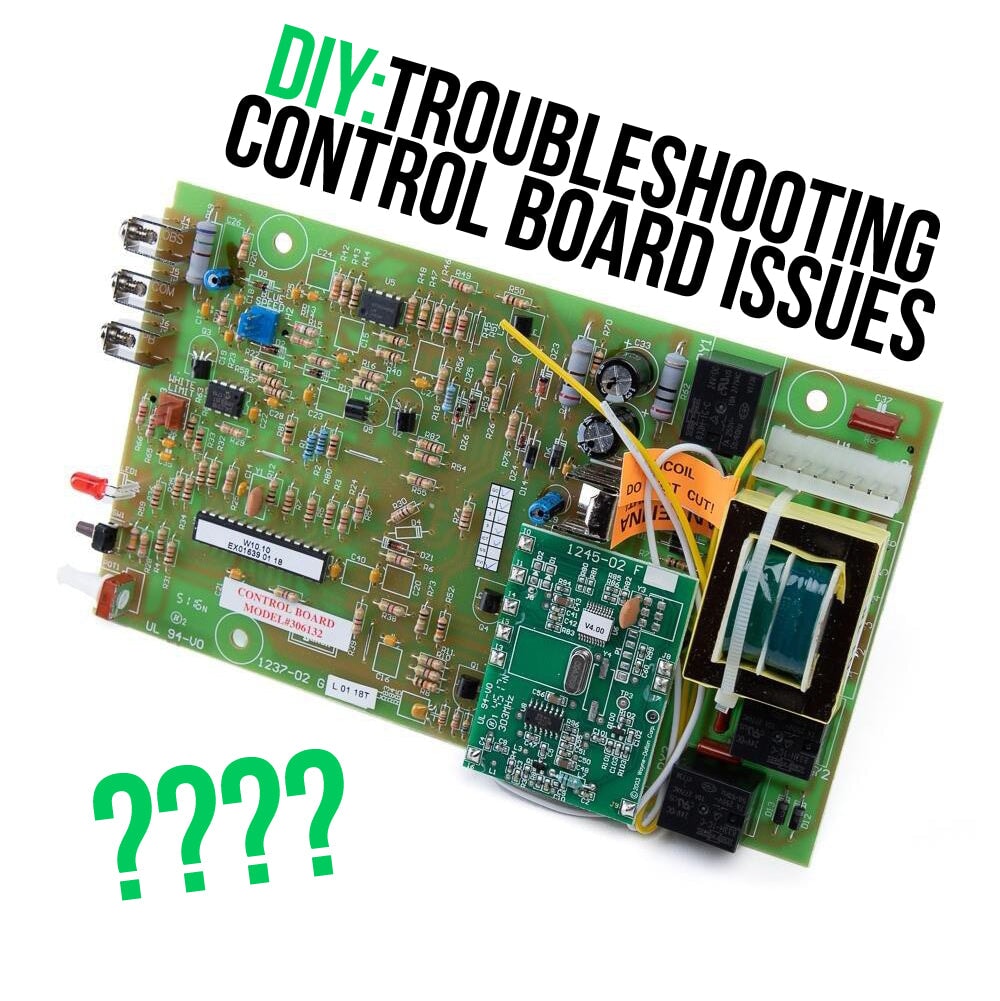

Wayne Dalton Logic Motor Control Board Common Issues

March 20, 2023 4 min read

Introduction

A malfunctioning garage door opener can be a major inconvenience, and often the root of the problem lies in the motor control board. In this article, we'll discuss the Wayne Dalton Logic Motor Control Board (303 and 372 Mhz), a dependable replacement option for your garage door opener system. We'll also explore common problems caused by a failing motor control board and how to diagnose and resolve these issues.

Wayne Dalton: A Trusted Brand

Wayne Dalton was a reputable manufacturer of garage doors and garage door openers are known for their quality and innovation but no longer manufacturers garage door openers. The Wayne Dalton Logic Motor Control Board is another testament to their commitment to providing reliable and efficient solutions for homeowners.

Wayne Dalton Logic Motor Control Board: Key Features

Here are the main features of this impressive product:

Compatibility

The Wayne Dalton Logic Motor Control Board is compatible with various Wayne Dalton brand garage door openers, including all Quantum, Classic Drive, and Prodrive Openers (303 and 372 Mhz). Its compatibility ensures that you can find the right fit for your garage door system.

Frequency Range

Operating on both 303 and 372 Mhz frequencies, this motor control board offers versatility and adaptability. This ensures seamless functionality within the optimal frequency range.

Ease of Installation

Designed for easy installation, the Wayne Dalton Logic Motor Control Board is perfect for DIY enthusiasts or professionals alike. With straightforward instructions and minimal tools required, you'll have your garage door opener working properly in no time.

Common Problems Caused by a Failing Motor Control Board

A failing motor control board can lead to several issues with your garage door opener, including:

Intermittent Operation

A faulty motor control board may cause your garage door opener to operate inconsistently or stop working at random times.

Failure to Open or Close

If your garage door opener doesn't open or close when prompted, a malfunctioning motor control board could be the culprit.

Unresponsive Remote Controls and Wall Switches

When your garage door opener fails to respond to remote controls or wall switches despite having power, a failing motor control board might be responsible.

Motor Running Continuously

If the motor in your garage door opener continues to run even after the door has reached its open or closed position, a faulty motor control board may be to blame.

Inconsistent Travel Limits

A malfunctioning motor control board can cause your garage door opener to stop before it fully opens or closes, or to close too far, potentially causing damage.

Diagnosing a Faulty Motor Control Board

To determine if your motor control board is causing the issues you're experiencing, consider the following steps:

Check for any visible signs of damage or wear on the motor control board.
Inspect the wiring connections for any loose or frayed wires.
Test other components, such as the remote control, wall switch, and sensors, to rule out any issues with these parts.
Reset or reprogram your garage door opener to see if the problem persists.

If you've tried troubleshooting your garage door opener and still experience problems, it might be time to replace the motor control board.

When to Replace Your Garage Door Opener's Motor Control Board

Consider replacing your motor control board if you notice any of the following signs:

Inconsistent operation or complete failure
Garage door opener motor humming but not moving the door
Remote controls and wall switches not working despite having power
Unresponsive garage door opener even after resetting or reprogramming

How to Install the Wayne Dalton Logic Motor Control Board

Follow these steps to install your new motor control board:

Disconnect Power: Always disconnect the power to your garage door opener before working on it. This ensures your safety during installation.
Remove Old Control Board: Locate the old motor control board, which is typically housed inside the garage door opener's main unit. Remove any screws or fasteners securing the board and carefully disconnect any wires connected to it.
Install the New Control Board: Position the new Wayne Dalton Logic Motor Control Board in place and secure it with screws or fasteners. Reconnect any wires, ensuring they're properly attached and secure.
Reconnect Power: Restore power to your garage door opener and test its functionality. If everything is working correctly, your new motor control board is successfully installed.

Frequently Asked Questions

1. How do I know if my garage door opener is compatible with the Wayne Dalton Logic Motor Control Board?

Check your garage door opener model to see if it is a Quantum, Classic Drive, or Prodrive Opener (303 and 372 Mhz). If it is, the Wayne Dalton Logic Motor Control Board should be compatible.

2. Where can I purchase the Wayne Dalton Logic Motor Control Board?

You can find this product through online retailers, garage door opener suppliers, or authorized Wayne Dalton dealers.

3. Can I install the Wayne Dalton Logic Motor Control Board myself, or should I hire a professional?

While the installation process is relatively simple, it's essential to have a basic understanding of garage door opener systems and their components. If you're confident in your abilities, you can attempt the installation yourself. Otherwise, consider hiring a professional technician.

4. How long does the Wayne Dalton Logic Motor Control Board typically last?

The lifespan of a motor control board can vary depending on factors like usage and maintenance. However, Wayne Dalton products are known for their quality and durability, so you can expect a long-lasting product.

5. Are there any special maintenance requirements for the Wayne Dalton Logic Motor Control Board?

There are no specific maintenance requirements for this motor control board. However, regular maintenance of your overall garage door opener system will help ensure its longevity and optimal performance.

Conclusion

The Wayne Dalton Logic Motor Control Board (303 and 372 Mhz) is a reliable and efficient solution for homeowners experiencing issues with their garage door openers due to a failing motor control board. By understanding the common problems associated with a malfunctioning motor control board and knowing how to diagnose and replace it, you can ensure the smooth and safe operation of your garage door opener for years to come.
