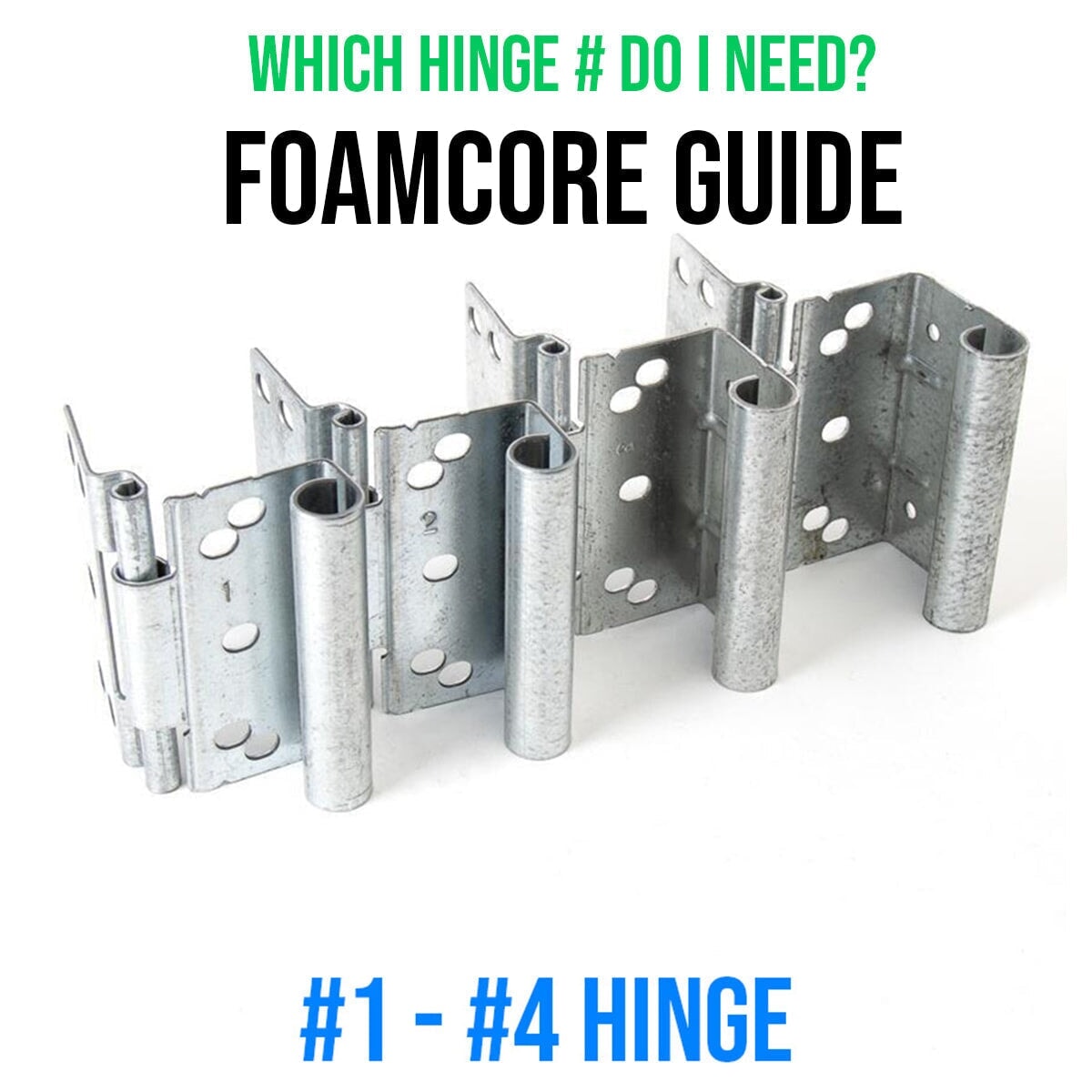

Which Wayne Dalton Anti-Pinch Hinge Do You Need? (9100 & 9600 Guide)
When it comes to replacing anti-pinch hinges on a Wayne Dalton 9100 or 9600 garage door, it’s all about location. Each hinge is numbered based on where it’s installed on your door—get it wrong and your rollers may not sit correctly in the track. Luckily, figuring it out is super simple.
Where Do Anti-Pinch Hinges Go?
These hinges are mounted on the outer edge of your garage door panels and help secure the rollers in the track while reducing the risk of pinched fingers as the door operates. The key to choosing the right one? Know your panel position:
- #1 Hinge: Between the bottom and second panel
- #2 Hinge: Between the second and third panel
- #3 Hinge: Between the third and fourth panel
- #4 Hinge: Between the fourth and fifth panel
Pro Tip: Check the Stamped Number
Wayne Dalton hinges typically have the number stamped right into the metal—no guesswork required. If the stamp is worn or hard to see, just count your panels from the bottom up and match the position to the hinge number above.
Thinking About Roller Upgrades?
While you’re swapping hinges, it’s the perfect time to upgrade to premium garage door rollers for a smoother, quieter ride. Trust us—your ears (and your opener) will thank you.
Watch the Hinge Number Guide
Ready to Replace Your Hinges?
Shop the correct hinge for your Wayne Dalton 9100 or 9600 model here:
Shop Wayne Dalton Anti-Pinch Hinges
Other Helpful How-To Videos
FAQs
Q: How do I find my hinge number if it’s not stamped?
A: Just count your door panels from the bottom up. The space between each panel corresponds to a specific hinge number (see list above).
Q: Can I use any anti-pinch hinge on any panel?
A: No—hinges are designed with specific angles and roller positions depending on panel location. Using the wrong one can cause misalignment or binding.
Q: Are these hinges compatible with other Wayne Dalton models?
A: These are specifically designed for foamcore-style Wayne Dalton 9100 and 9600 models. For other models, reach out and we can help you find the right part.
Q: Do these hinges come with screws?
A: Hinges are sold individually without hardware. You can reuse your existing screws or upgrade to hex head self-tapping screws for easier installation.
