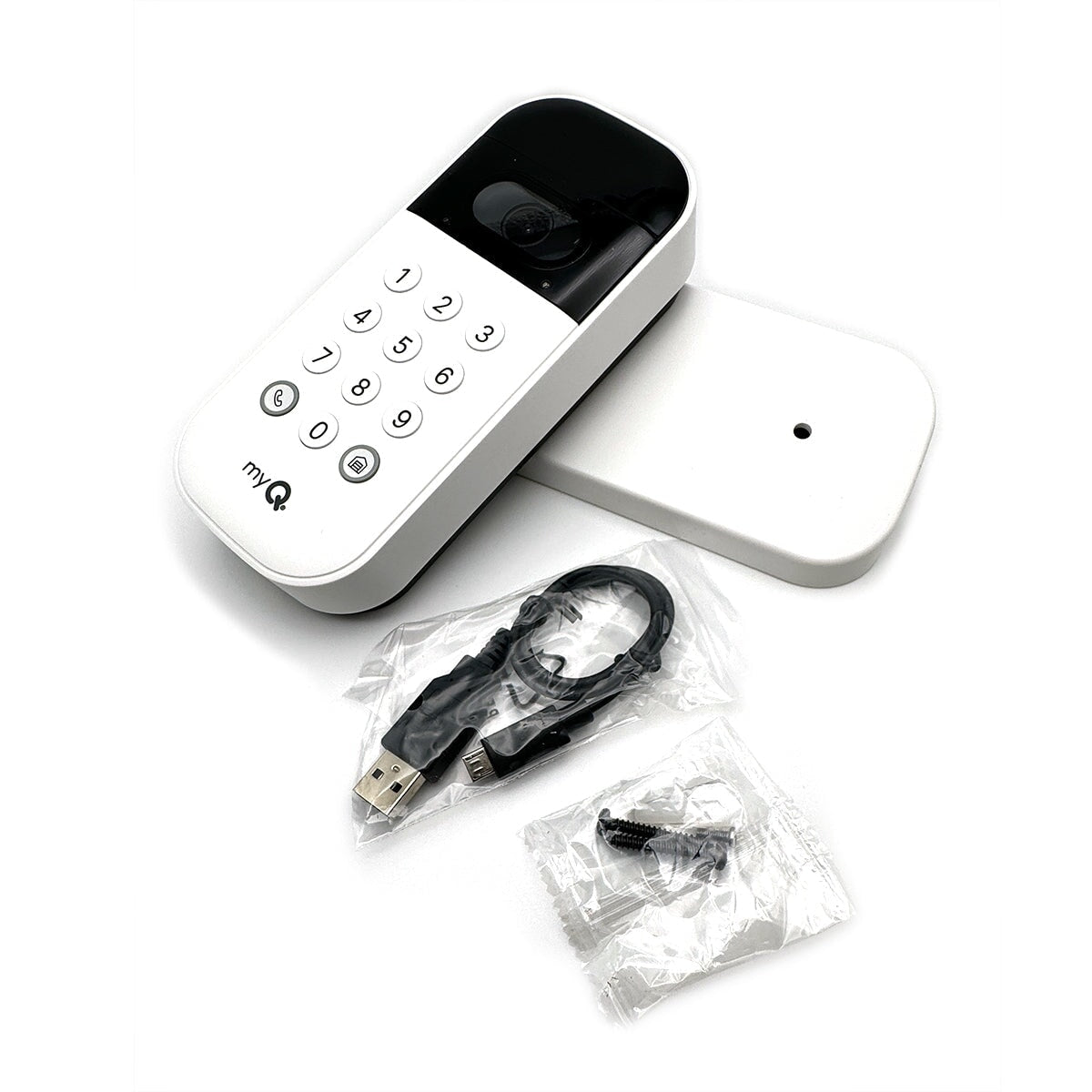

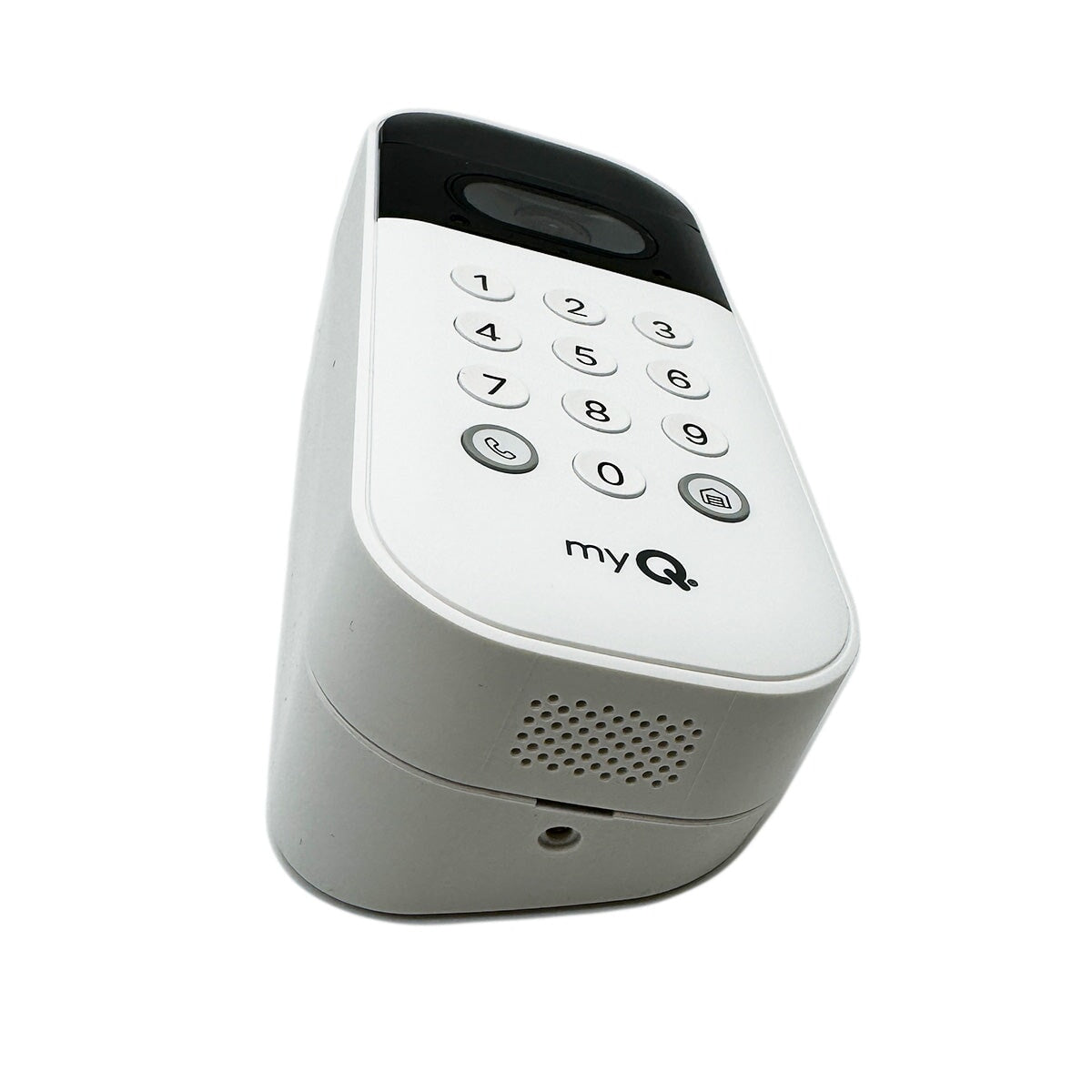

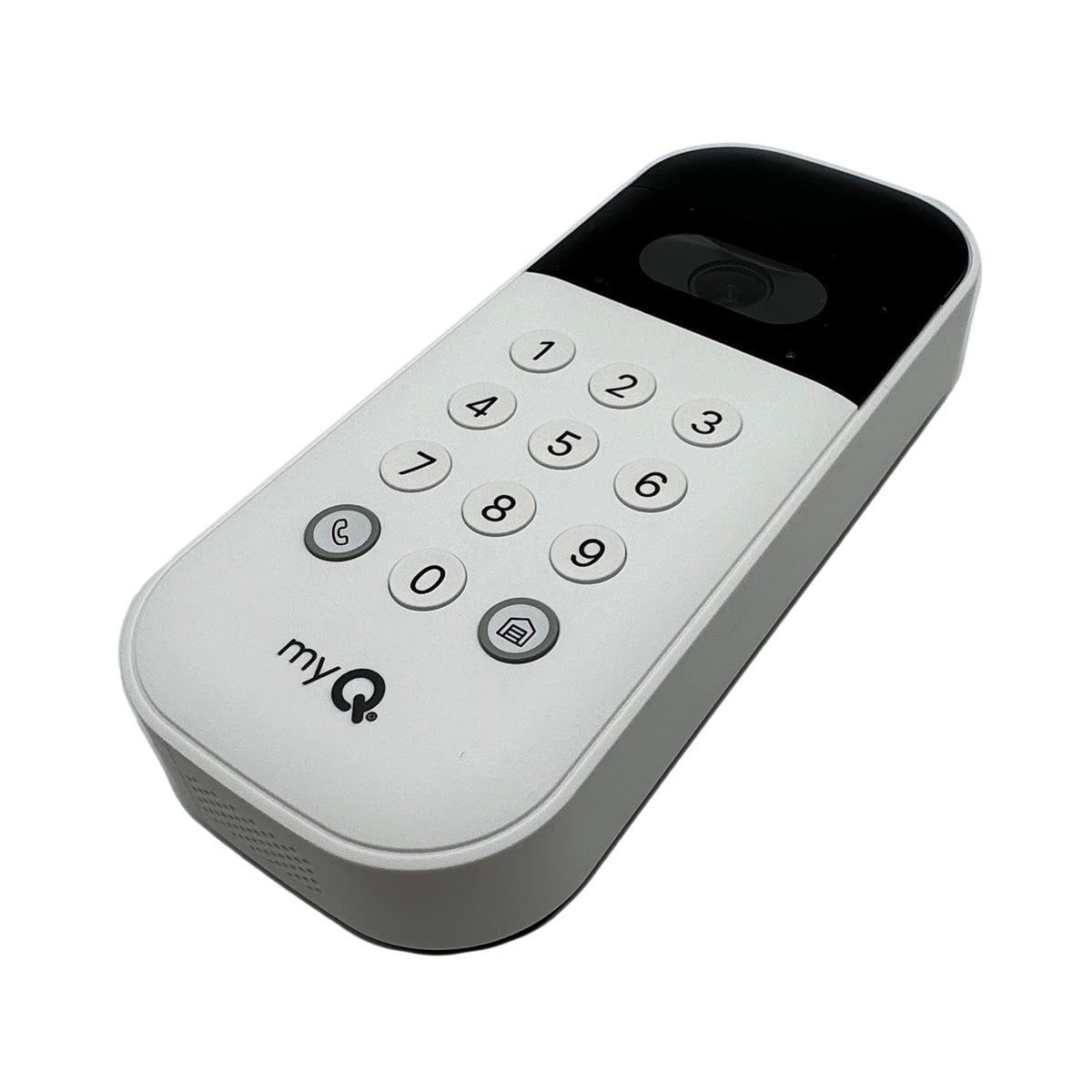

Liftmaster MyQ Smart Garage Video Keypad VKP1

SKU: LM-VKP1-LM

Description

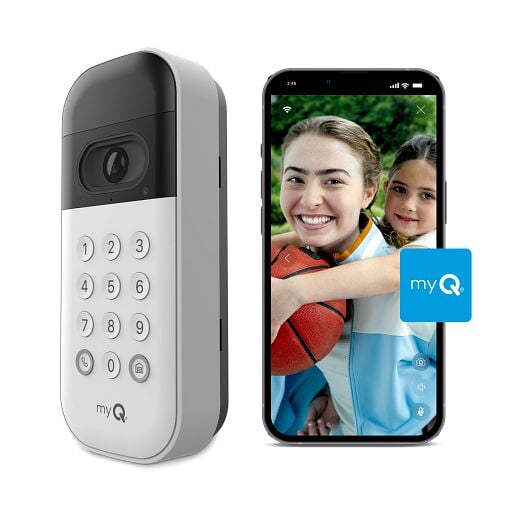

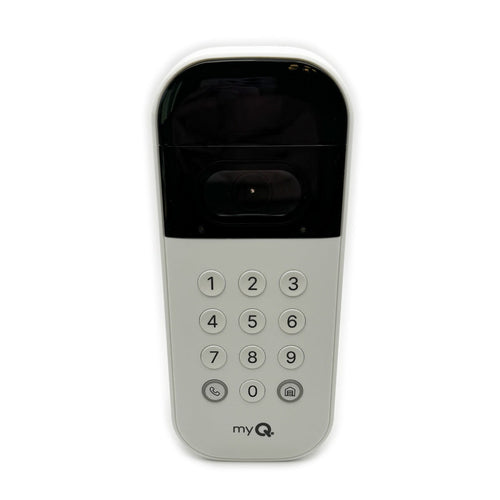

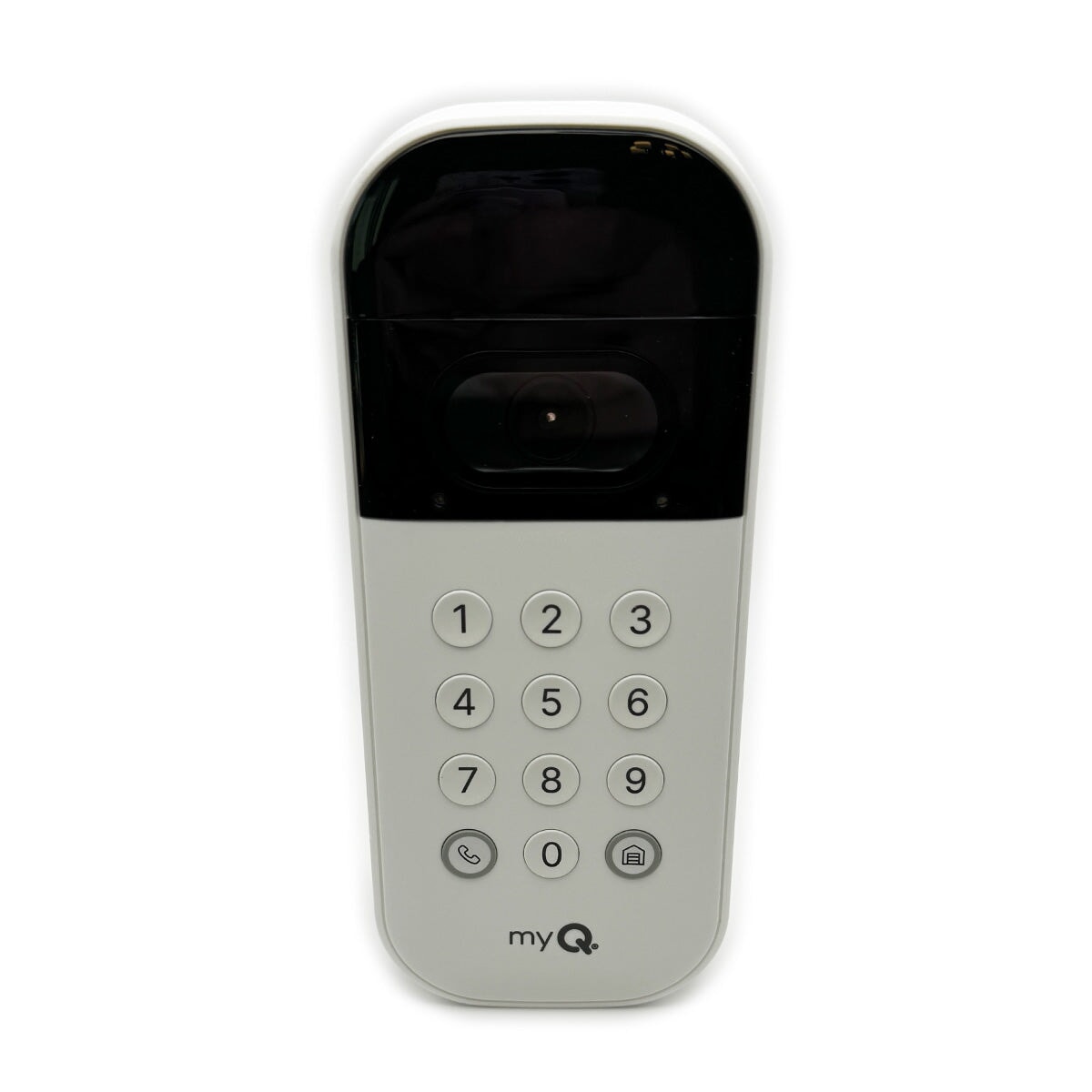

The LiftMaster MyQ Smart Garage Keypad VKP1 offers enhanced security and convenience for garage access. This keypad includes HD video streaming, and the ability to create and manage up to 16 unique PINs for different users. It also provides real-time alerts for garage access and features advanced motion detection for added security. Additionally, it has two-way audio communication capabilities. This device is compatible with myQ-connected garage door openers and can work with most post-1993 garage door opener brands when paired with myQ Smart Garage Control.

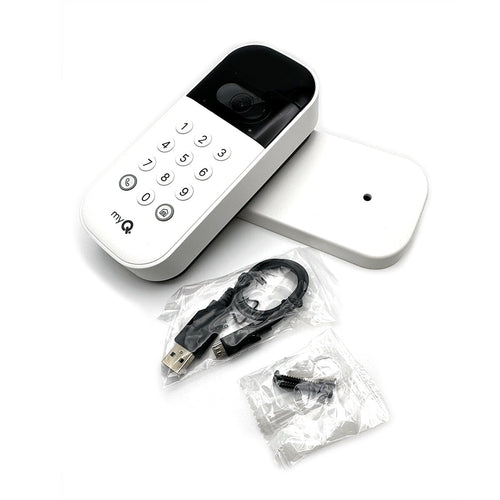

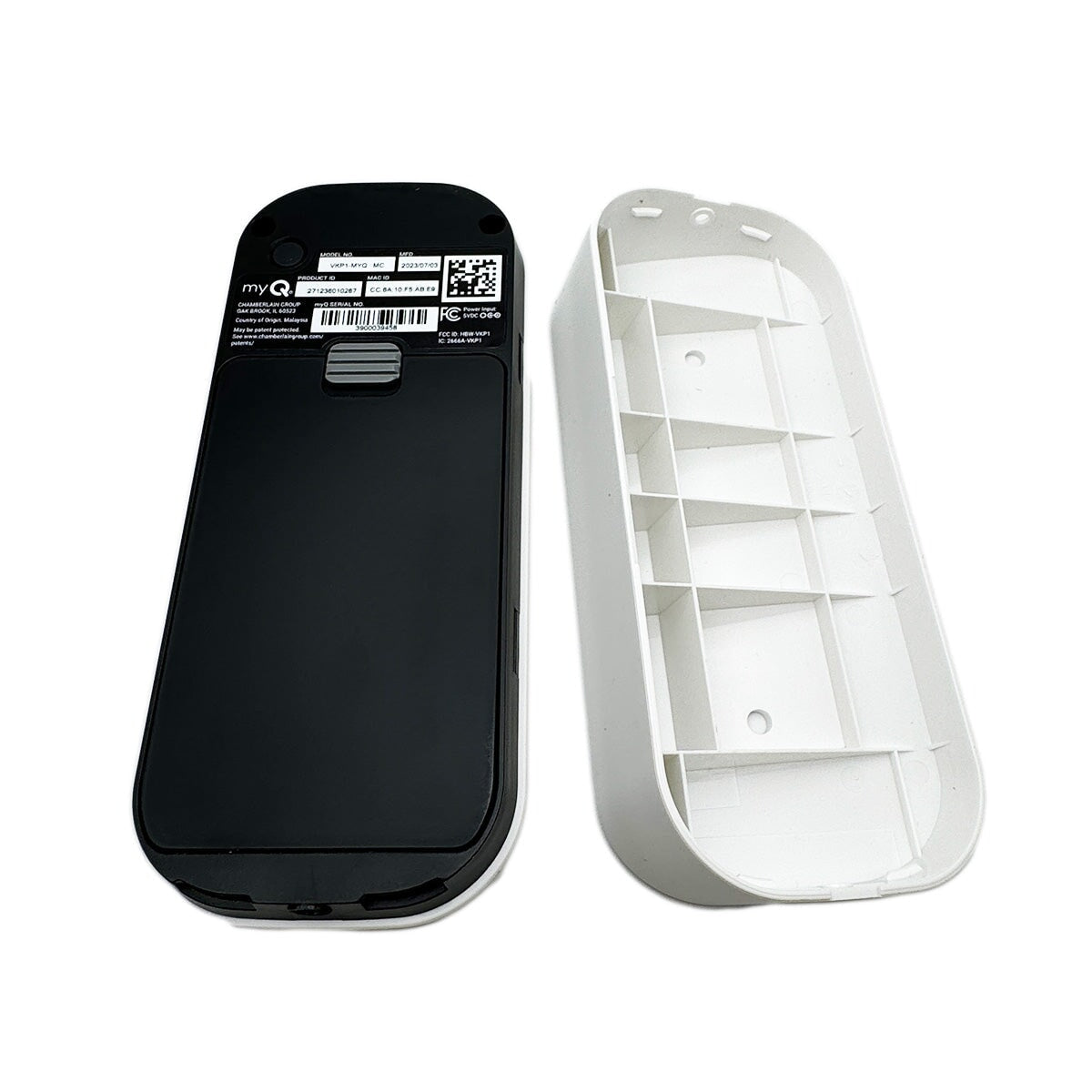

This item has two different mounting configurations. Select the dropdown option preferred:

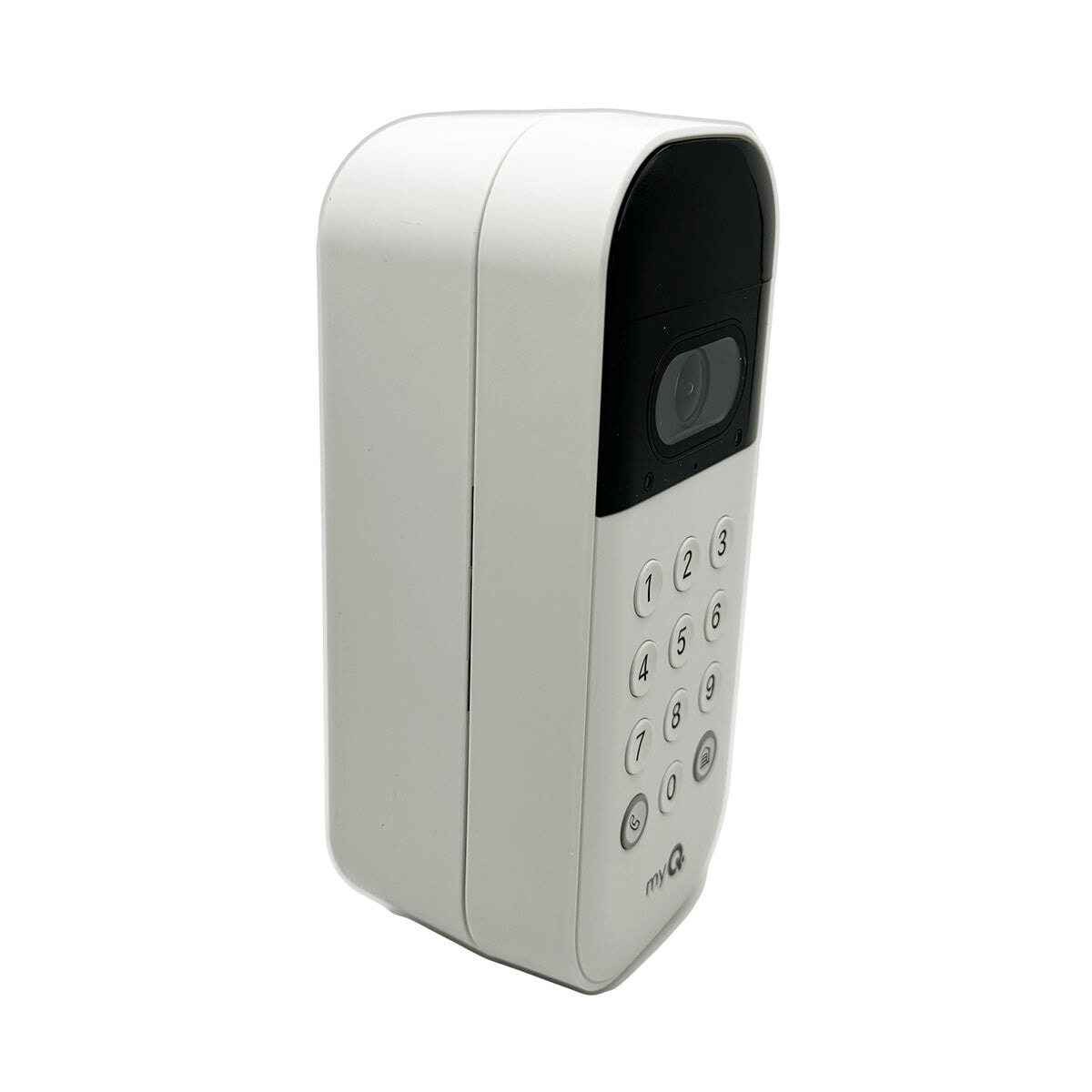

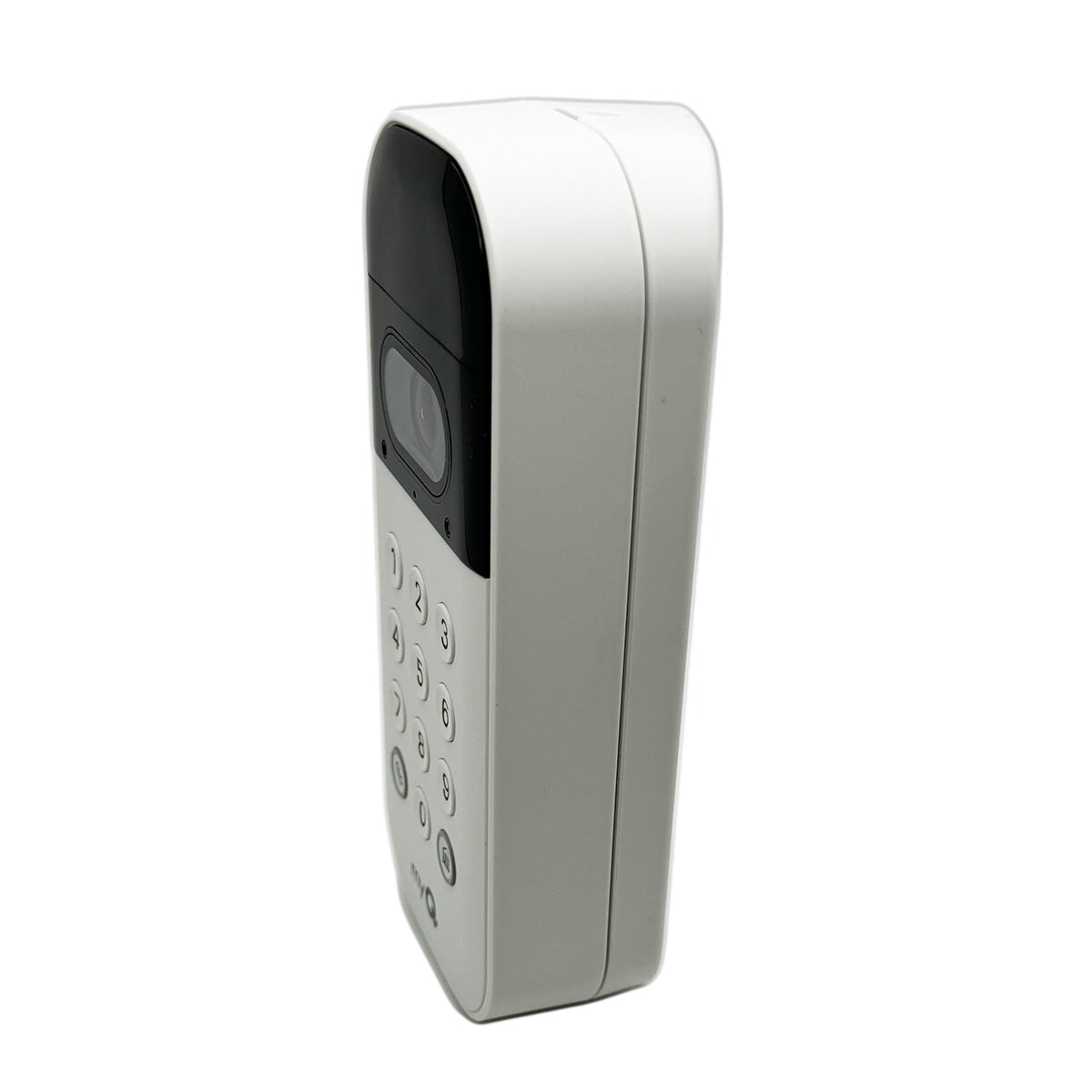

  • 100° Swivel Mount with Adjustable View: With the Pro Bundle, customers can adjust the angle of their keypad for a full view of the driveway.

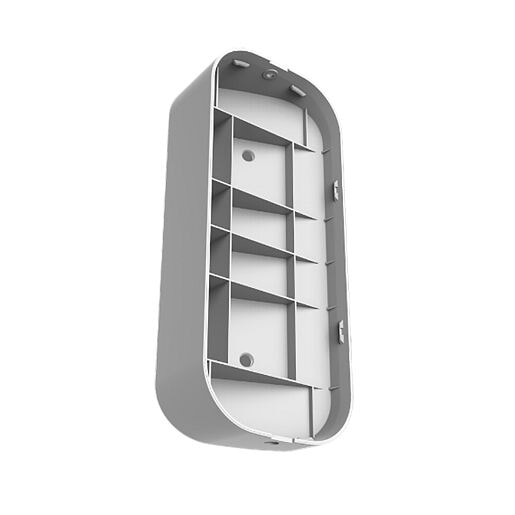

  • 20° Fixed View Mount: See the garage door and a partial view of the driveway.

Key features:

  • Professional Installation: Recommended for setup and Wi-Fi connectivity.

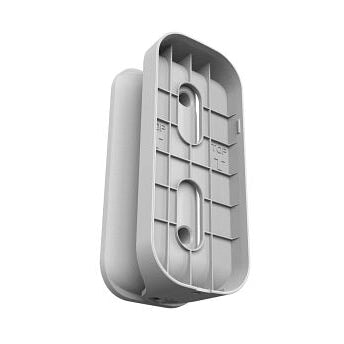

  • Mounting Options: 20° fixed mount and 100° swivel rotation for optimal viewing.

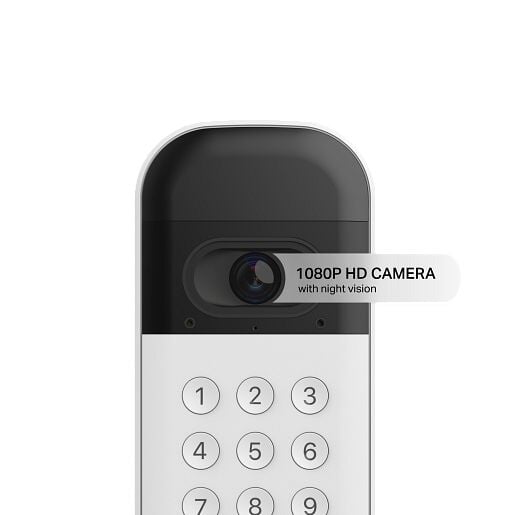

  • HD Video Streaming: Live stream and record with a myQ Video Storage Plan.
  • Custom Access Codes: Create and schedule up to 16 unique PINs.
  • Real-Time Alerts: Notifications of garage access.
  • Motion Detection: Monitors safe arrival of family.

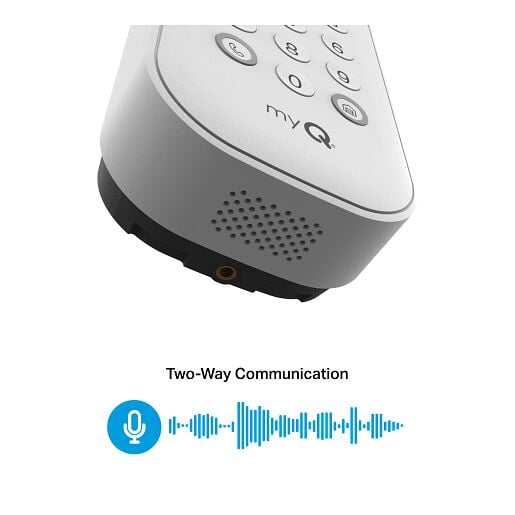

  • Two-Way Audio: Direct communication via a dedicated call button.

Technical Specifications:

  • Keypad Illumination
  • GDO Learn Button Color Compatibility: Green, Orange/Red, Purple, Yellow
  • Code Type Compatibility: Billion code 390 MHz, Security+ 390/315 MHz, Security+ 2.0®
  • Wi-Fi Connectivity: 802.11 a/b/g/n (2.4GHz, 5GHz)
  • Dimensions: 6.30 x 2.71 x 1.36 inches
  • Operating Temperature: -4°F to 122°F

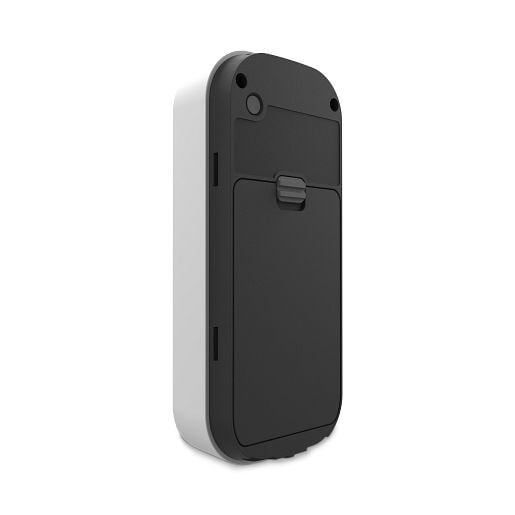

  • Power Supply: Rechargeable Lithium-ion Battery
  • Field of View: 160° Wide Angle
  • Audio: Integrated Speaker and Microphone
Compatibility

The keypad is compatible with all myQ-connected garage door openers and works with LiftMaster openers having Wi-Fi logo. It also pairs with most garage door opener brands manufactured after 1993 using a myQ Smart Garage Control. (821LMC-S).
