Garage Door Uni-Lock Inside Slide Lock Endstile 7 1/2" v7647

SKU: WD-346213

Description

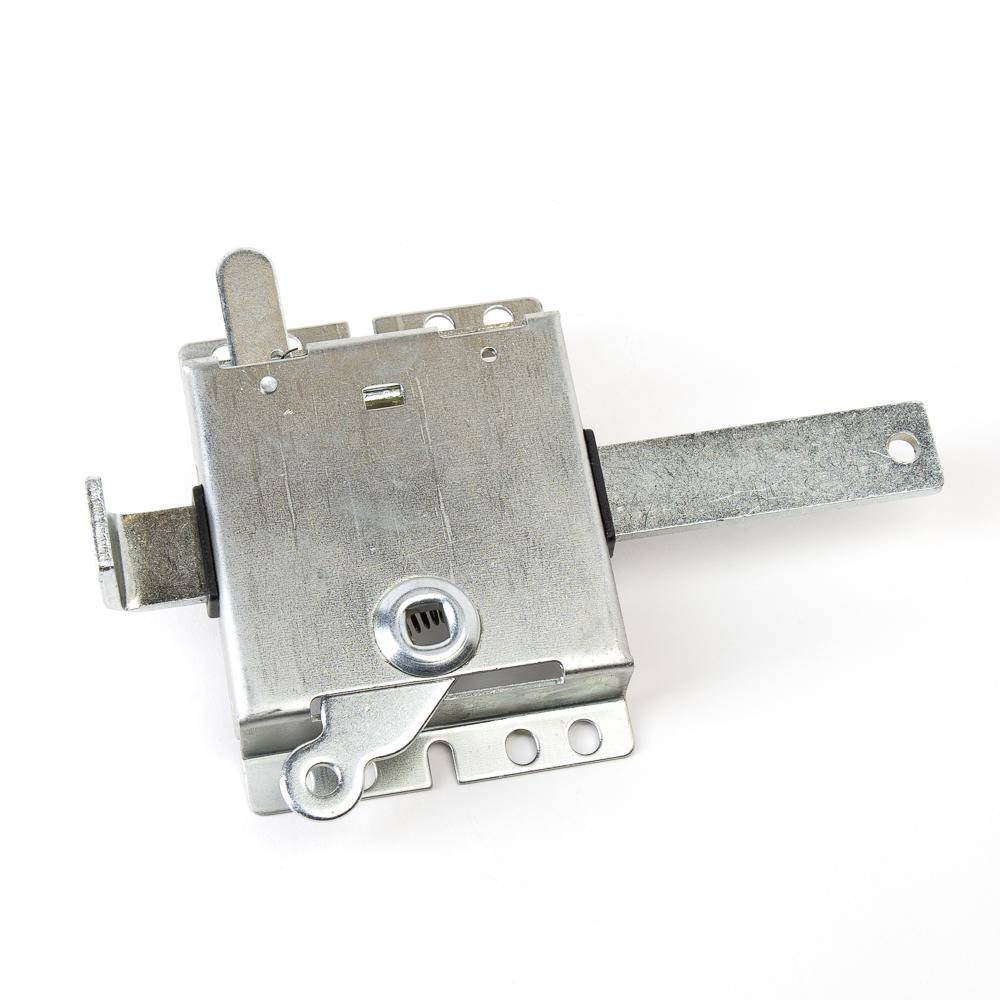

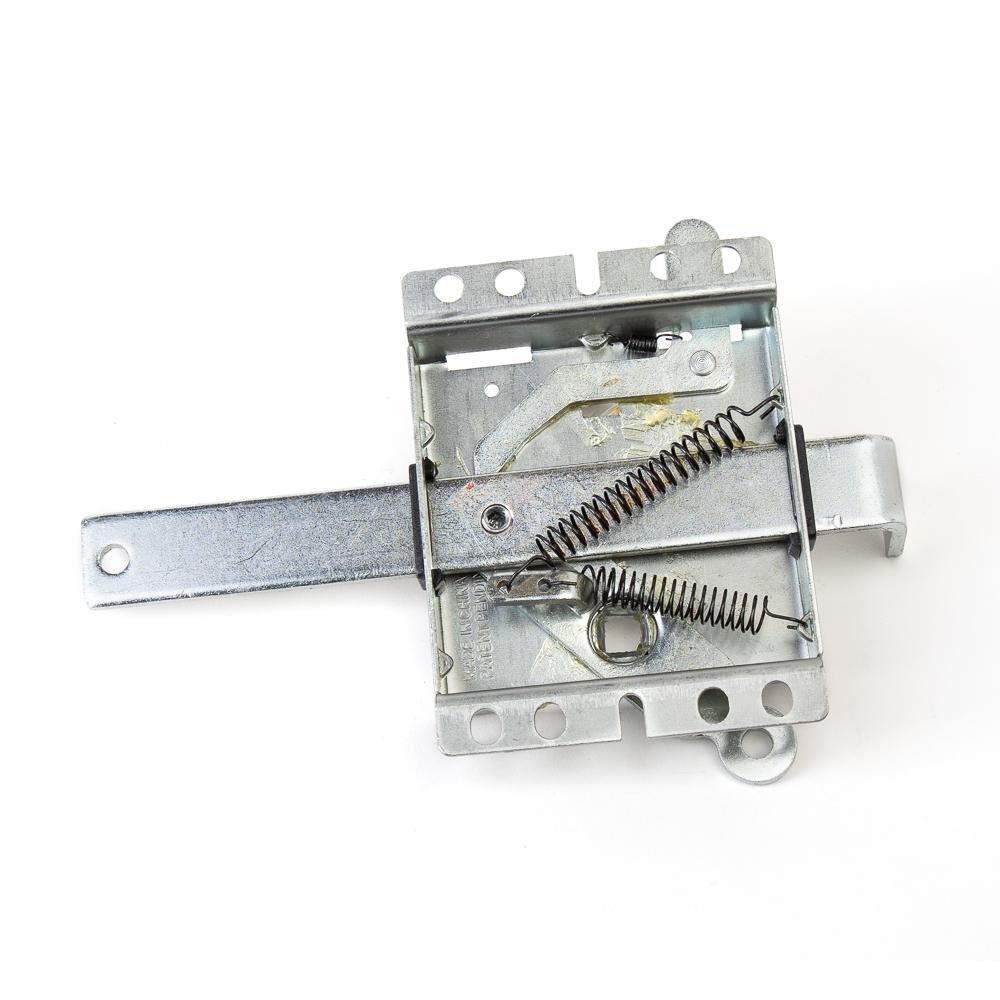

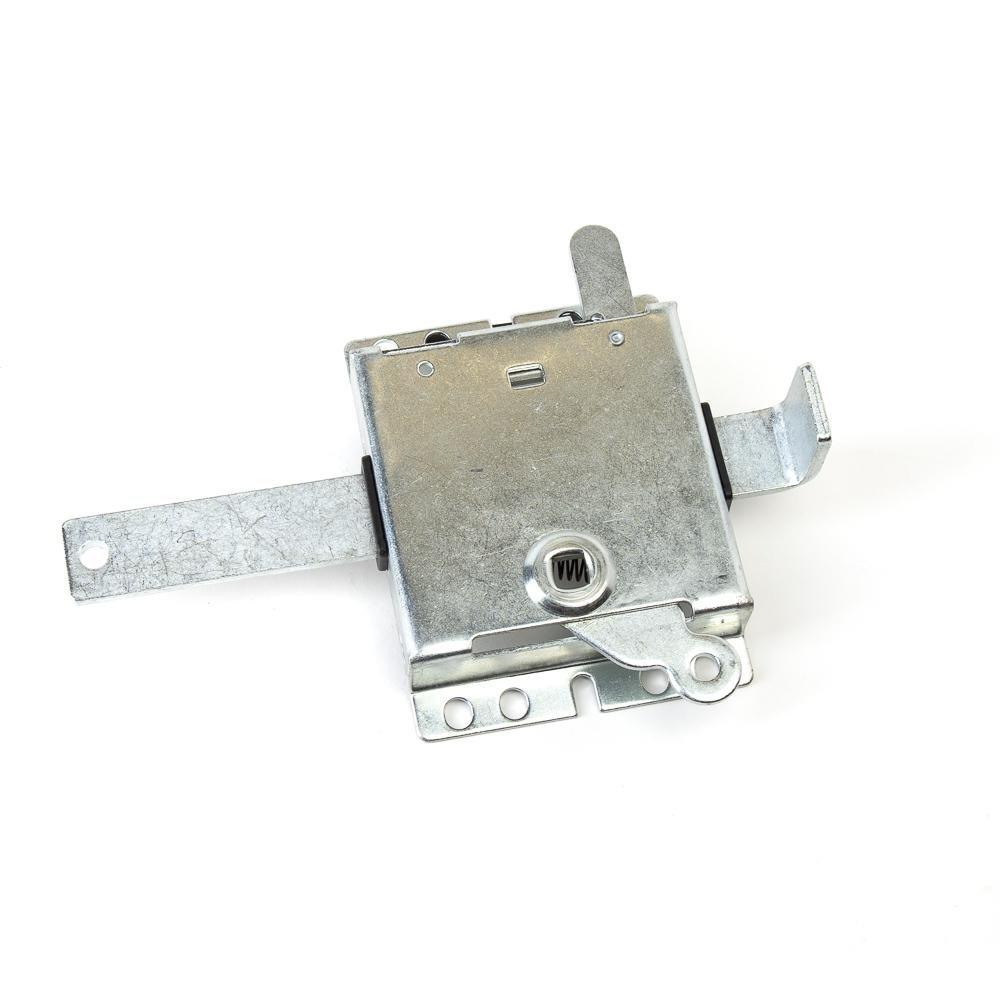

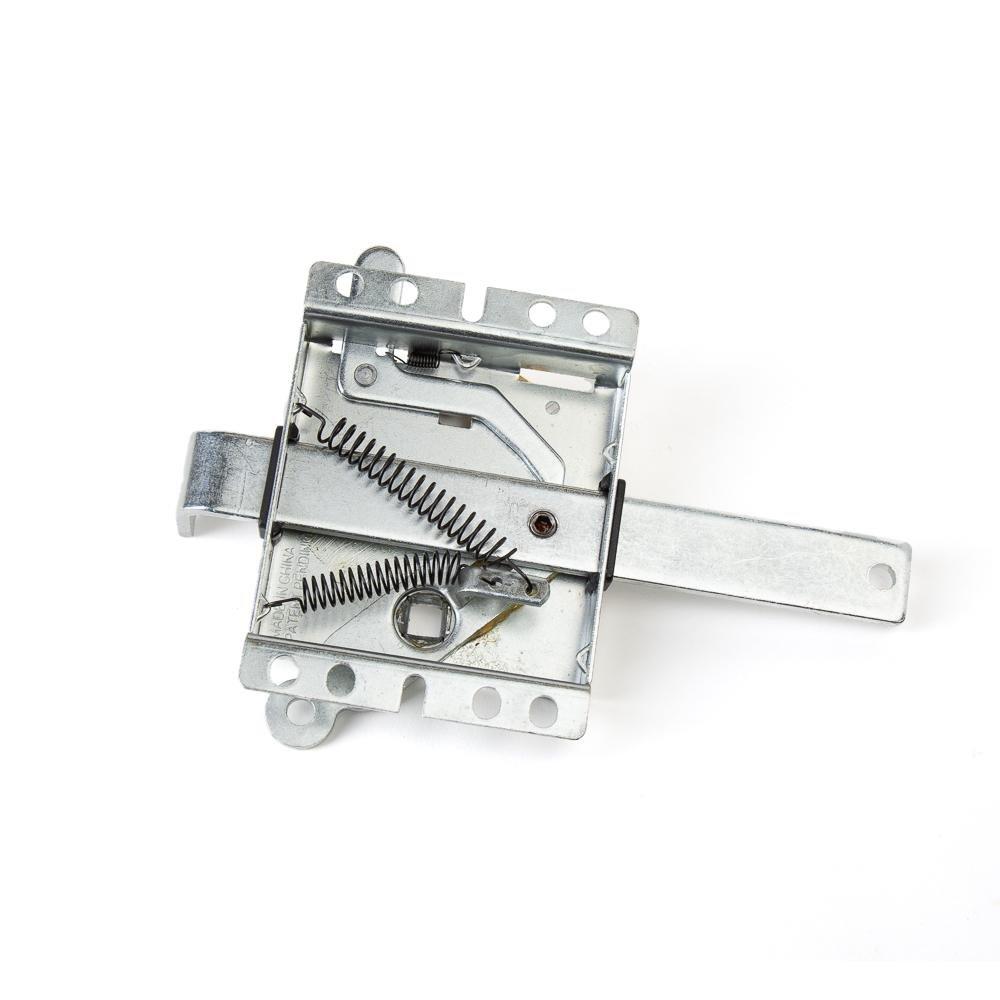

Garage Door Uni-Lock Inside Slide Lock Endstile

Zinc interior garage door side slide lock v7647 is 7-1/2" wide. This slide lock can be used with locking handle v7642 to open from outside of the garage door. It can also be used as a stand alone dead bolt lock from inside the garage. Right hand and Left Hand Mount available. Is compatible with wood and metal doors.

  • Box size on the lock is 3 3/8" x 4 1/2"
  • 4" center to center on screw holes
  • Box height 5/8"

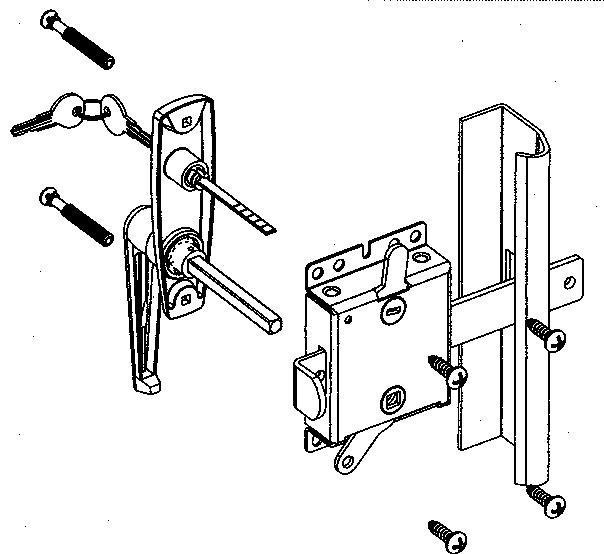

View installation diagram to see how this inside sliding lock installs with the compatible outside locking L handle v7642.

Purchase the compatible locking handle here - Exterior Locking Handle v7642
