Wayne Dalton Trolley Arm Attachment Operator Bracket

106 reviews

SKU: WD-322984

Old Part Number: 320787
Description

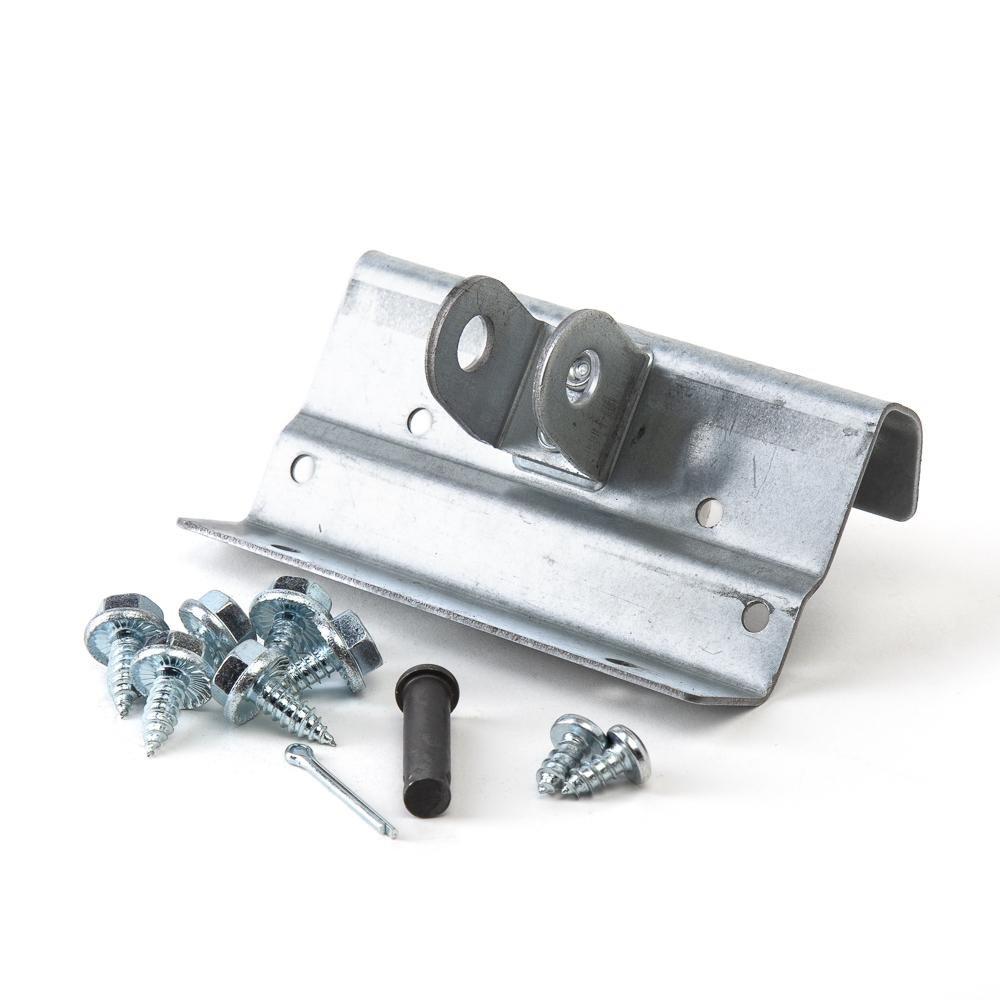

Wayne Dalton Trolley Arm Attachment Operator Bracket

Wayne Dalton garage door opener bracket for connecting your chain, screw or belt drive garage door opener to your door. Fits directly over top section of garage door and attaches to built in strut. For models 9100, 9600, 5120, 5140.

Includes:
  • Garage door opener bracket 320787
  • Hardware bag 321475
  • Installation instruction manual

Specs:

  • 4-1/2" Wide
  • 2-3/4" Tall, with 15/16" flange at bottom
  • 6 - 13/64" drilled bolt holes on back of bracket
  • 2 - 11/64" screw holes on front top lip of bracket
  • Riveted clevis with 13/32" diameter clevis pin hole
  • Constructed of 16 gauge galvanized steel.
Compatibility
Compatible with:
  • Compatible with all Wayne Dalton 9100, 9600, 5120, and 5140 doors
Instructions
Installation Instructions - Click here to download manualOld Part Number: 320787
