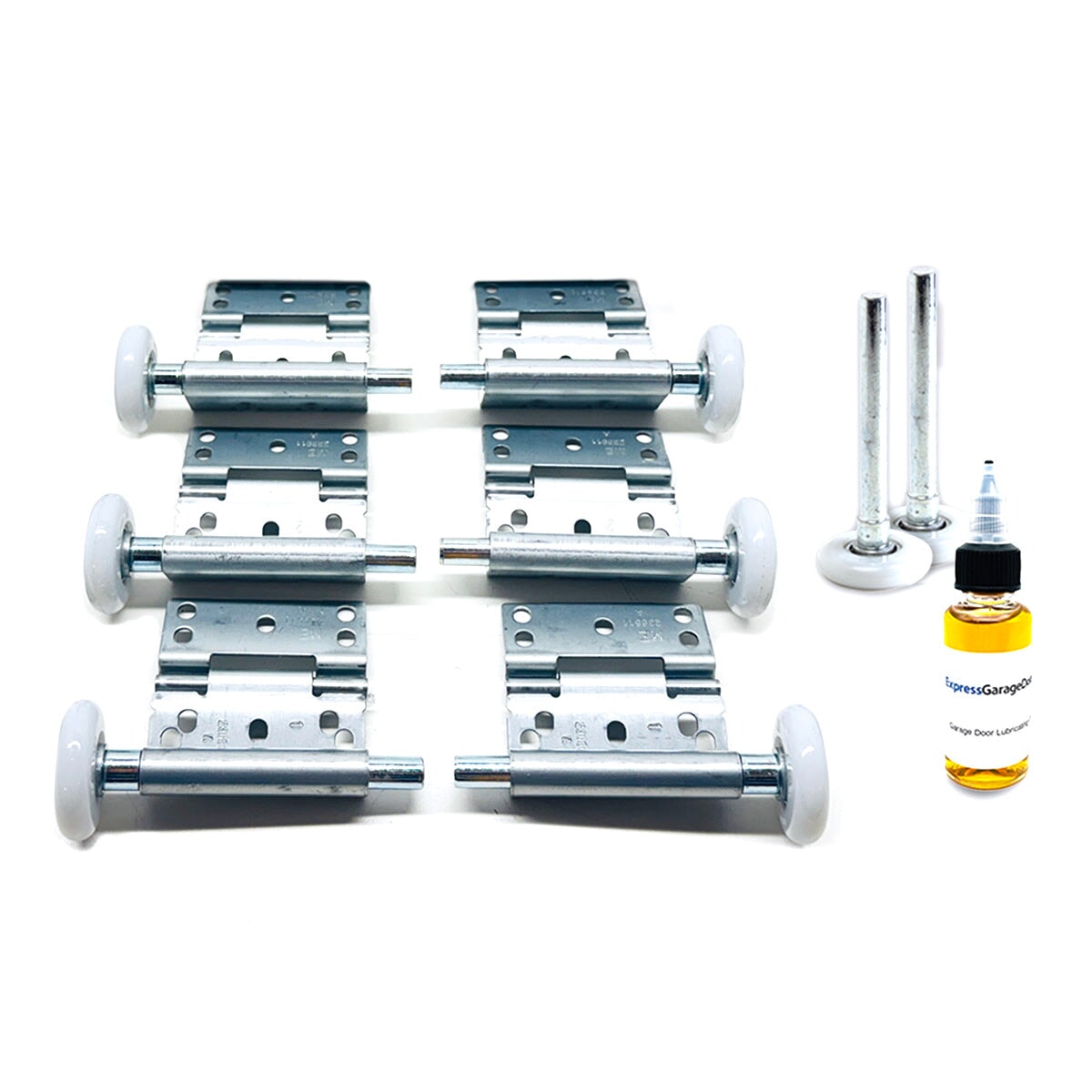

    • Wayne Dalton 9100 9600 4-panel garage door hinge and nylon roller kit quiet operation

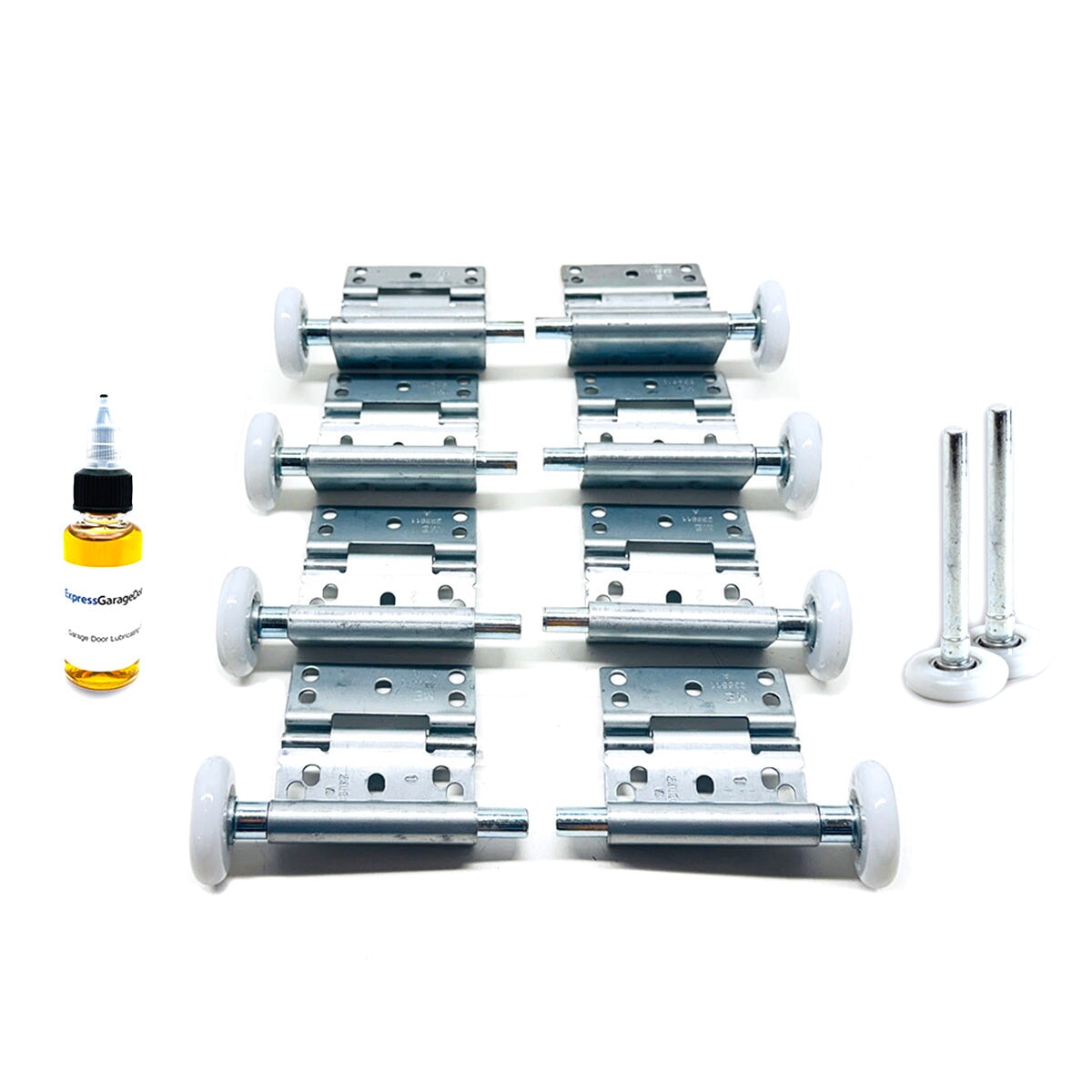

    Wayne Dalton 9100 9600 5-panel garage door hinge and roller replacement kit anti-pinch design
    wayne dalton 9600 door hinges - 4 hinge set
    Wayne Dalton 9100 & 9600 Hinge and Roller Replacement Kit
    Bottle of garage door lubricating oil with a white background
    Wayne Dalton 9100 9600 4-panel garage door hinge and nylon roller kit quiet operation
    Wayne Dalton 9100 9600 5-panel garage door hinge and roller replacement kit anti-pinch design
    wayne dalton 9600 door hinges - 4 hinge set
    Wayne Dalton 9100 & 9600 Hinge and Roller Replacement Kit
    Bottle of garage door lubricating oil with a white background

    Wayne Dalton 9100 & 9600 Hinge and Roller Replacement Kit

    Express Garage Doors

    SKU: EGD-9100KIT-4P-RLR

    $79.99 - $89.99$95.99 - $107.99
    Description

    Reduce noise and vibration while restoring smooth travel on your Wayne Dalton 9100 or 9600 door. This upgrade kit pairs OEM-fit anti-pinch outer hinges with heavy-duty 2" nylon rollers (11 ball bearings) plus our 1 oz high-performance lubricant. Everything you need for a quieter, more reliable door.

    ⚠️ SAFETY WARNING: Do not replace rollers on the bottom bracket. That area holds full spring tension and can cause severe injury. Only replace rollers above the bottom brackets.

    What’s Included

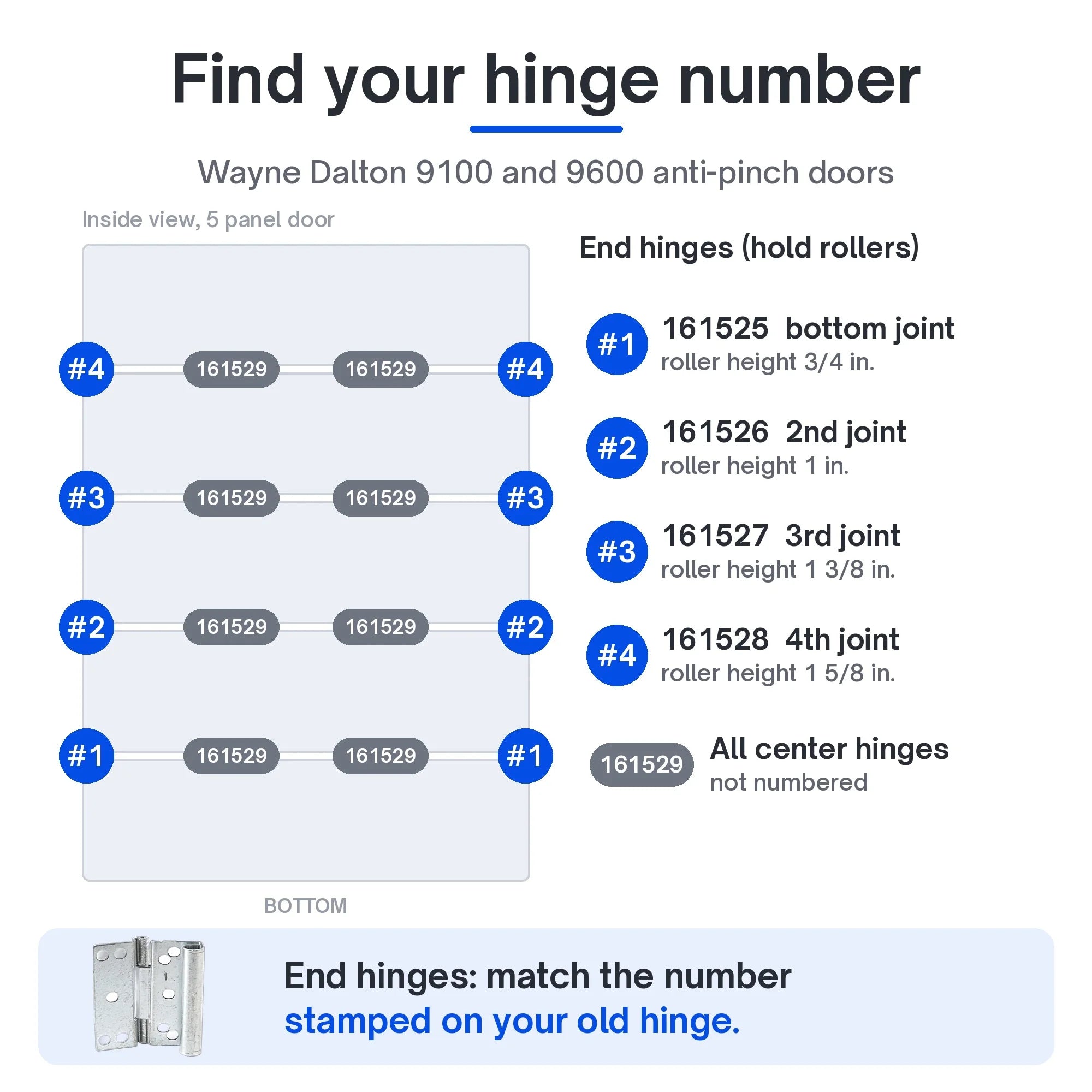

    • Outer Anti-Pinch Hinges (2 each):
      • 4-Panel doors: 161525, 161526, 161527
      • 5-Panel doors: 161525, 161526, 161527, 161528

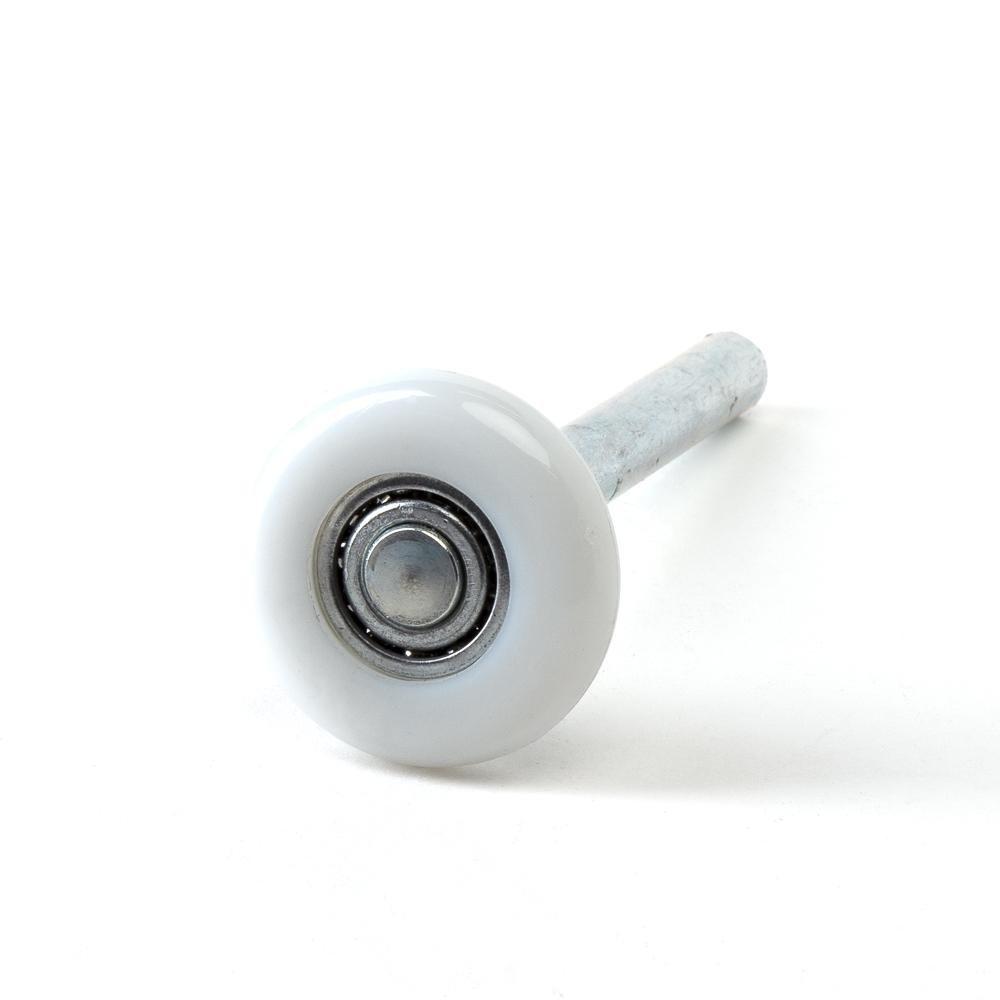

    • Rollers: 2" nylon, 11 ball bearings, 4" zinc-plated stem
      • 4-Panel = 8 rollers
      • 5-Panel = 10 rollers
    • Lubricant: 1 oz Express Garage Doors High-Performance Garage Door Lubricant

    Roller Features & Specs

    • Compatible with 2" tracks; 75 lb load rating per roller
    • Quiet Glide nylon wheel with bulged shoulders
    • 11 steel ball bearings for smooth, long service life
    • Zinc-plated, rust-resistant 4" stem; 4.5" overall length
    • Estimated life: ~15,000 8 ft door cycles (open/close)

    Why This Kit

    • Quiets the door and reduces opener strain
    • Restores proper panel alignment with OEM-style anti-pinch hinges
    • Includes lubricant to finish the job right

    Compatibility

    Designed for Wayne Dalton 9100 and 9600 foamcore pinch-resistant steel doors. Choose your Panel (4 or 5) to set roller quantity and hinge mix. Selecting Door Width helps confirm fit for your specific door size.

    Install Tips

    • Work with the door fully closed and secured. Replace one hinge/roller assembly at a time.
    • Match hinge positions to the originals; do not overtighten fasteners.
    • After install, apply the included lubricant to hinge knuckles and roller bearings.
    • Need hardware? Add our 1/4"-20 x 7/8" self-drilling Tek screws.

    Video Guide

    See hinge replacement steps here:

     

    About the Lubricant

    Our 1 oz high-performance formula reduces friction, resists corrosion, and keeps hinges, rollers, tracks, and locks operating smoothly in varied weather.

    How many rollers come in this kit?

    Choose your panel count: 4-panel doors include 8 rollers; 5-panel doors include 10 rollers. The kit also includes the correct outer anti-pinch hinges and 1 oz lubricant.
    Will these rollers fit my tracks?

    Yes. These are 2" nylon rollers designed for standard residential 2" door tracks and are a direct fit for Wayne Dalton 9100/9600 foamcore pinch-resistant doors.
    Do I need to replace all of my rollers at once?

    We recommend replacing all rollers during the same service. This gives the best improvement in noise reduction, smooth travel, and long-term reliability.
    Are nylon rollers really quieter than metal rollers?

    Yes. Nylon absorbs vibration and reduces metal-on-metal noise. The 11-ball bearing design also lowers friction, helping the door glide more quietly and smoothly.
    Does this kit include screws?

    Screws are not included. If your existing fasteners are worn or stripped, add our 1/4"-20 x 7/8" self-drilling Tek screws for a clean, secure install.
    What tools do I need for installation?

    A 7/16" socket or nut driver, Phillips screwdriver, locking pliers, and a step ladder are typically enough. Keep the door fully closed and replace one hinge/roller assembly at a time.
    How long do these rollers last?

    They are rated for about 15,000 cycles on an 8 ft door under typical use. Proper lubrication and alignment help maximize service life.
    Where can I see how to replace the hinges and rollers?

    Watch our step-by-step video here: Wayne Dalton hinge replacement video. Apply the same process when swapping the roller in the hinge leaf.
