Wayne Dalton 9100 9600 4-panel 8-9 ft garage door complete hinge replacement kit

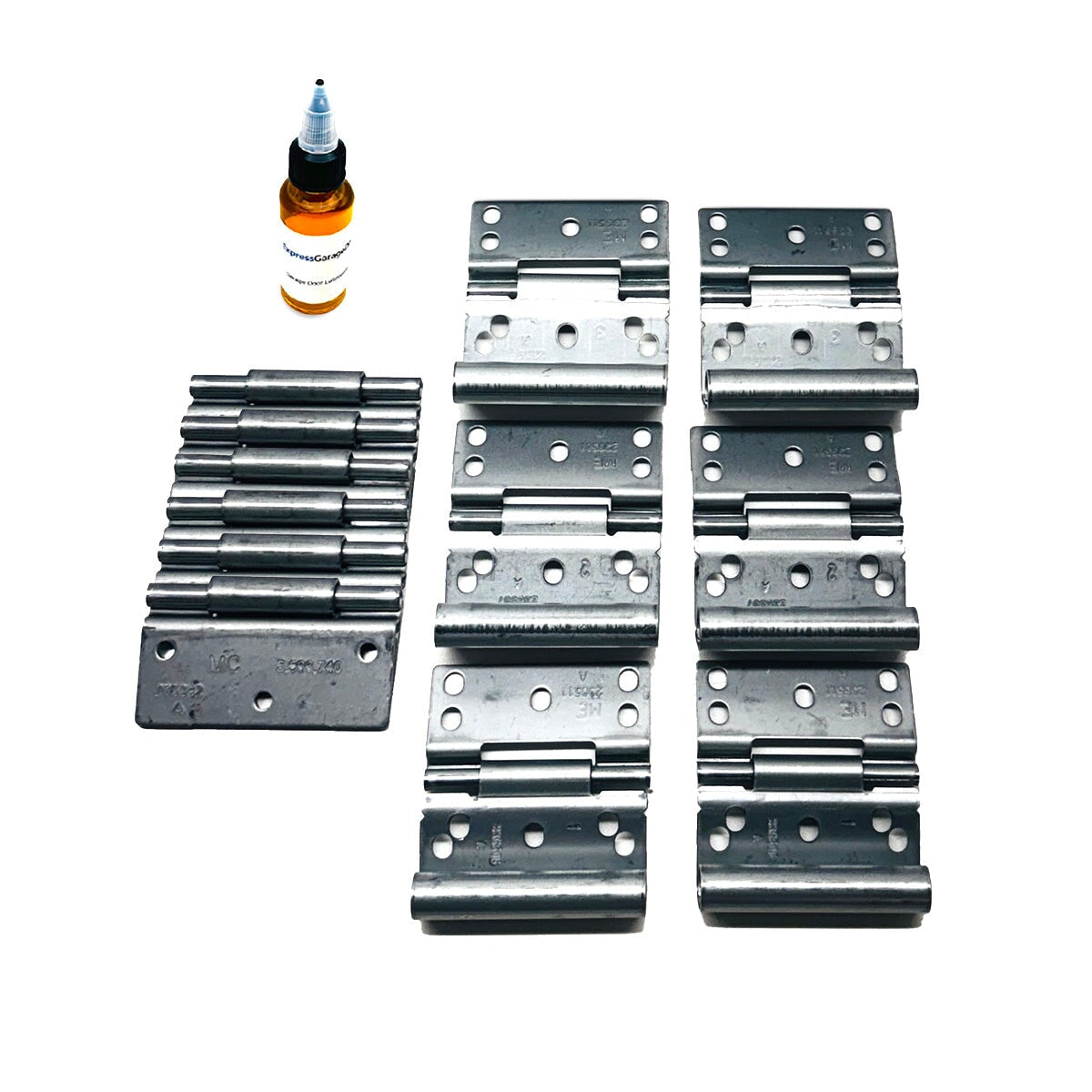

Wayne Dalton 9100 9600 4-panel 10-12 ft garage door complete hinge kit foamcore design

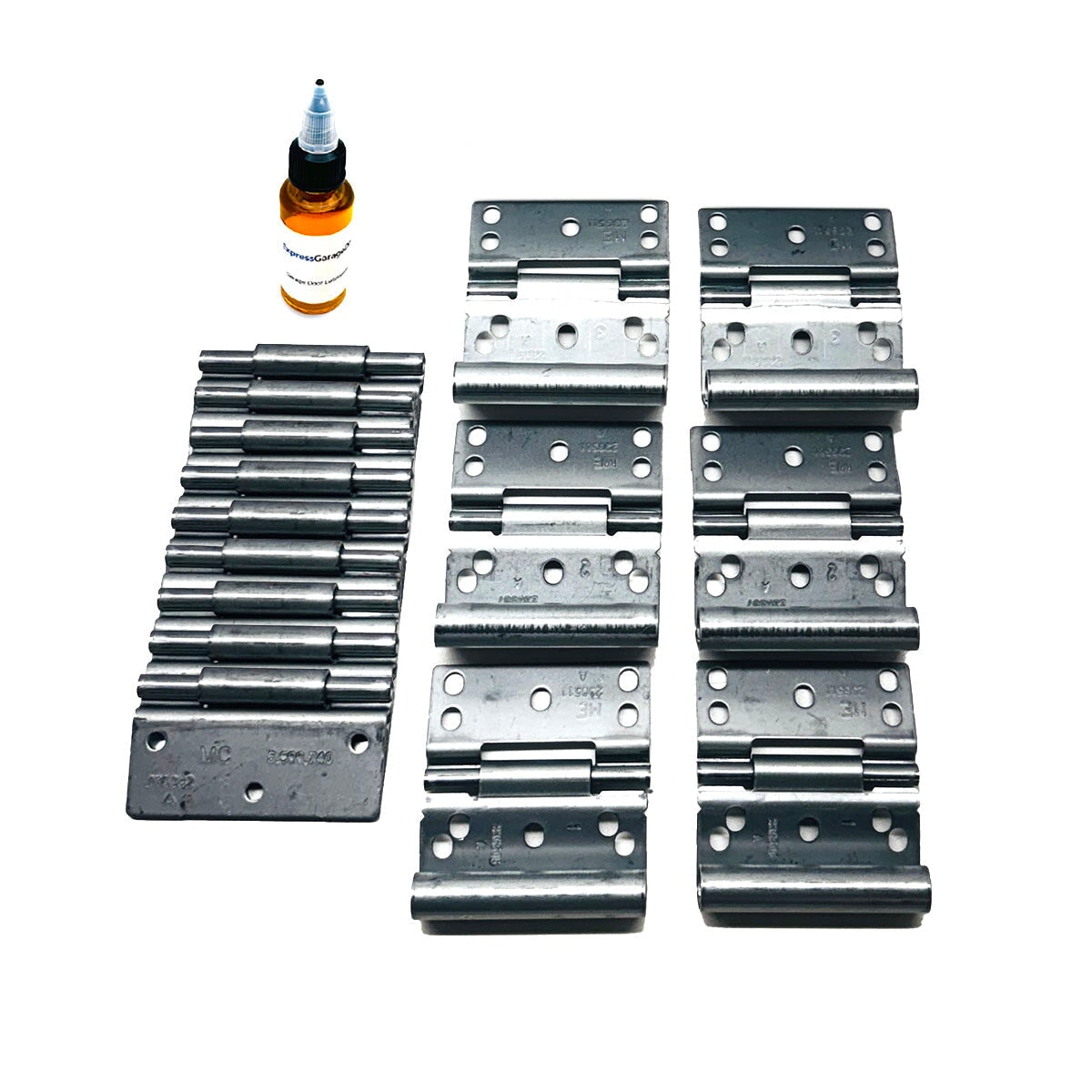

Wayne Dalton 9100 9600 4-panel 16 ft garage door hinge replacement kit with lubricant

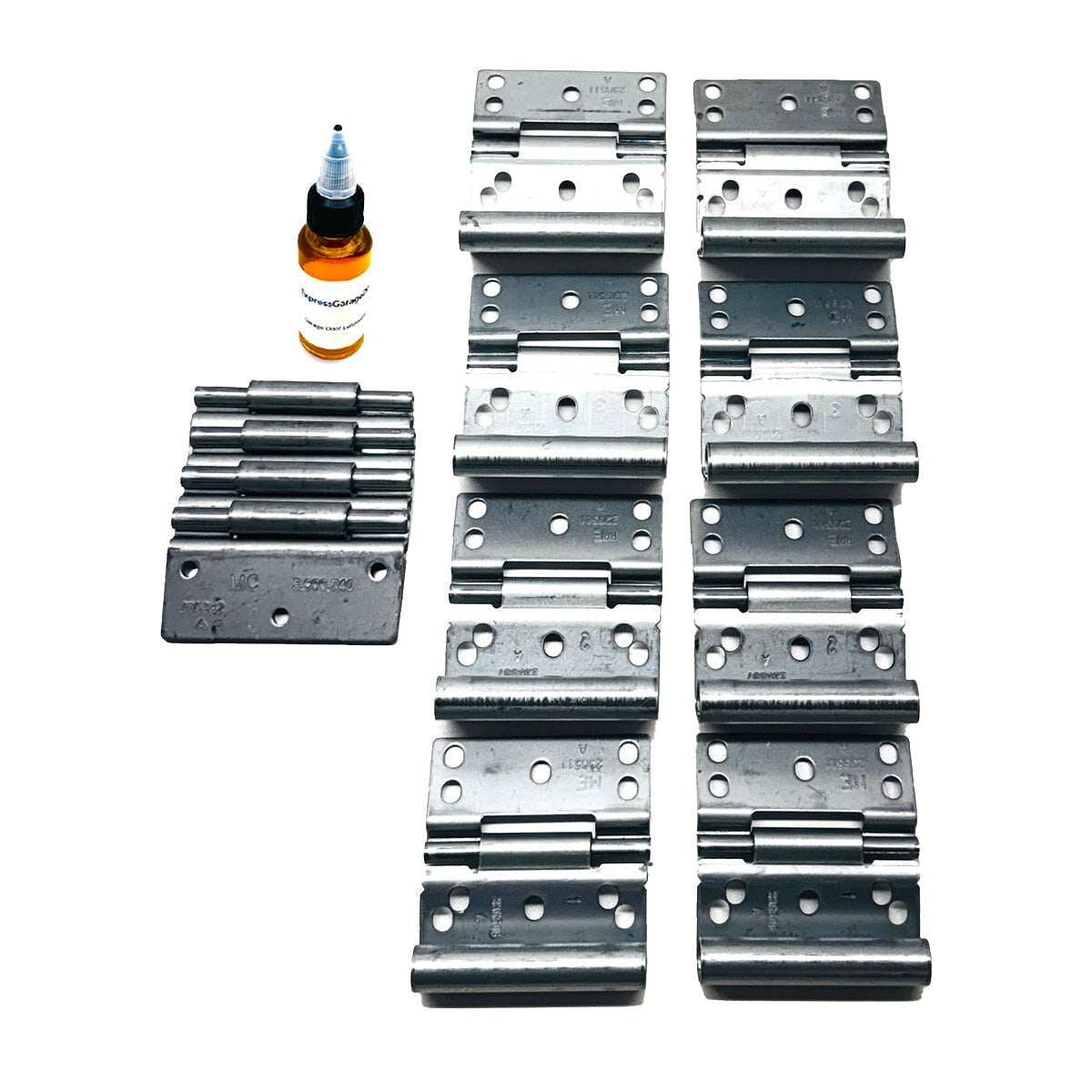

Wayne Dalton 9100 9600 5-panel 8-9 ft garage door complete hinge replacement kit

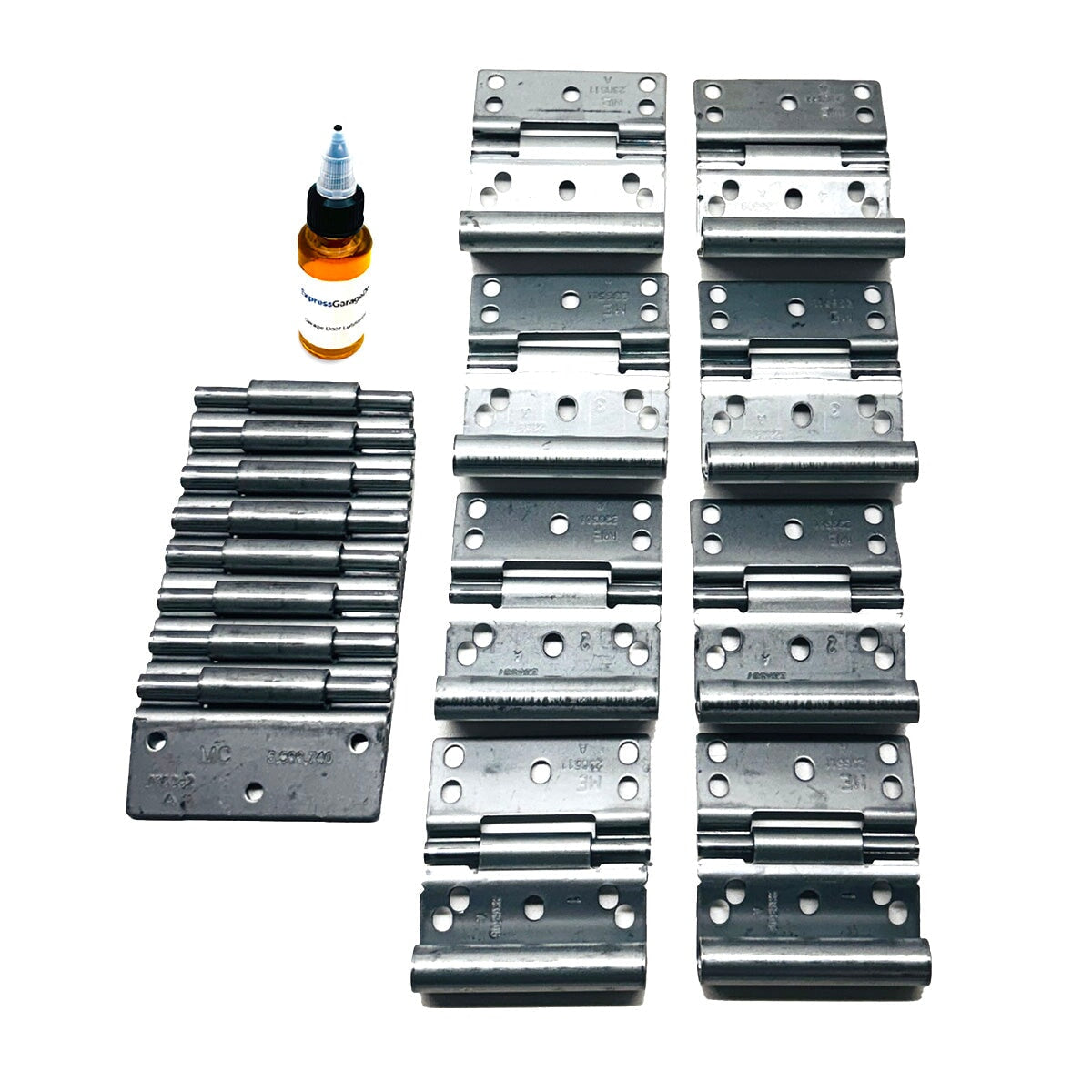

Wayne Dalton 9100 9600 5-panel 10-12 ft garage door hinge kit foamcore anti-pinch

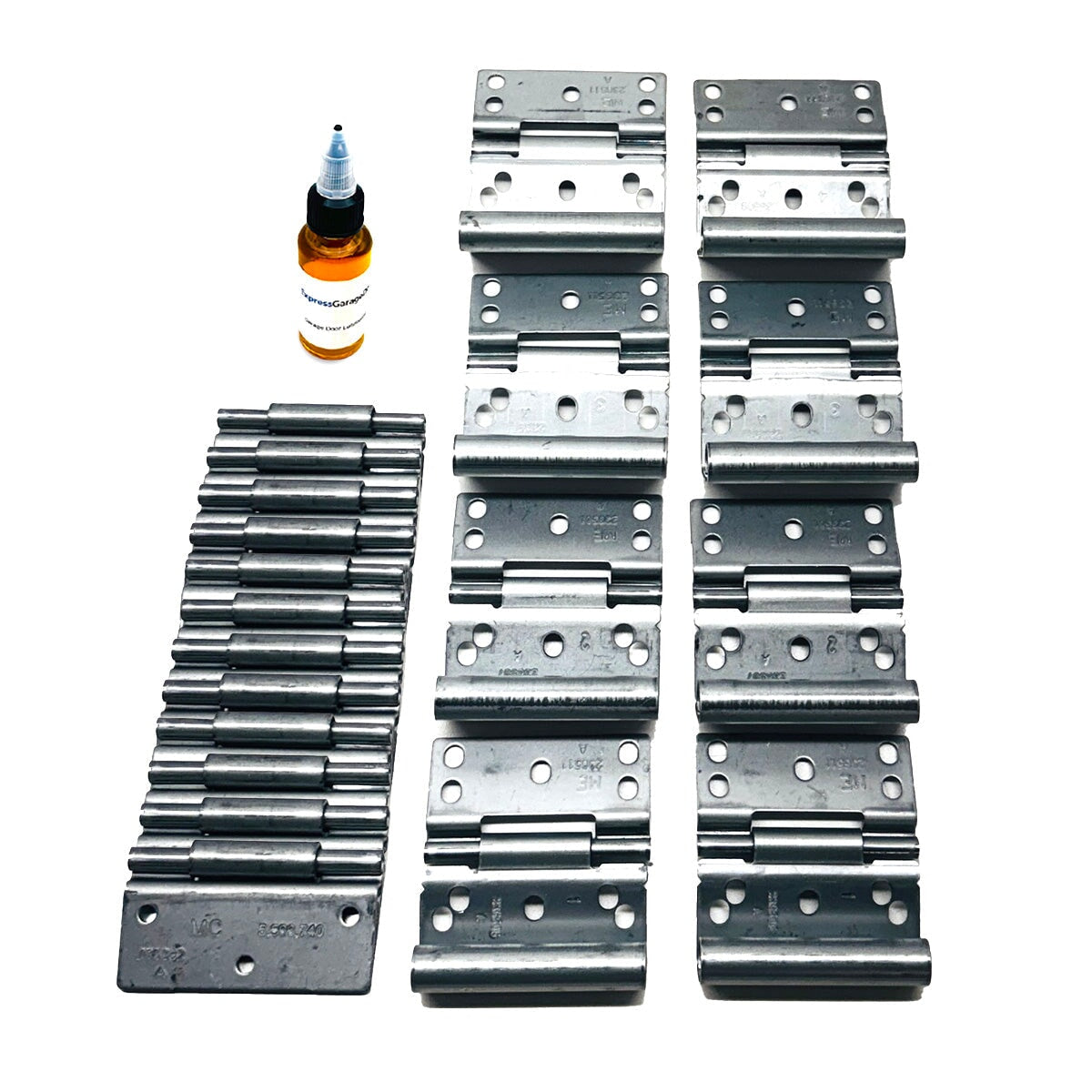

Wayne Dalton 9100 9600 5-panel 16 ft garage door complete hinge replacement set

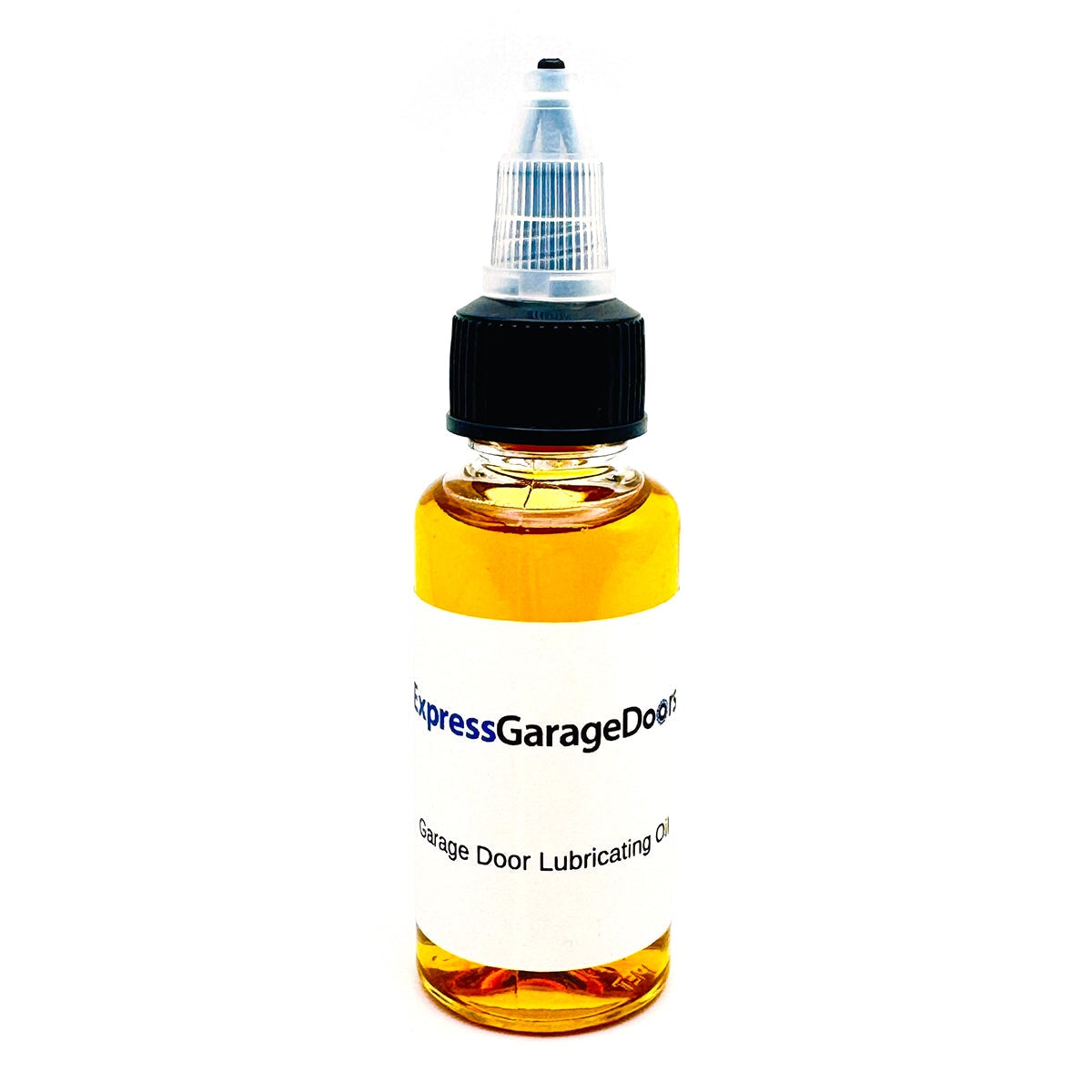

Bottle of garage door lubricating oil with a white background

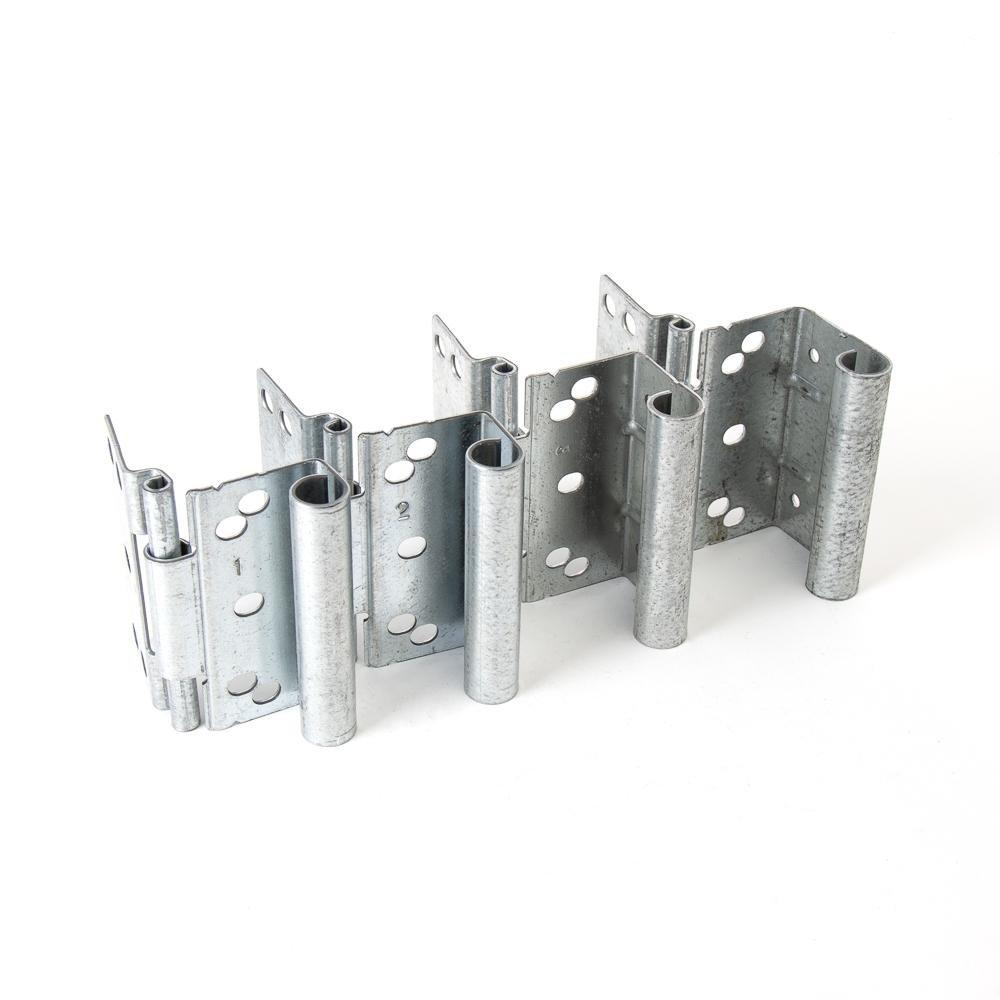

wayne dalton 9600 door hinges - 4 hinge set

Wayne Dalton 9100 & 9600 Complete Hinge Replacement Kit

Q: How many hinges come in this kit?

Quantities depend on door width and panel count. Each kit includes all inner and outer hinges required for 4- or 5-panel Wayne Dalton 9100 and 9600 doors, plus lubricant.

Q: Does this kit include screws?

No. Screws are not included. Add 1/4"-20 x 7/8" zinc-plated self-drilling Tek screws for the best fit: https://www.expressgaragedoors.com/products/tek-screw-self-drilling-1-4-20-x-7-8-length-zinc.

Q: Will this kit fit other Wayne Dalton models?

This kit fits Wayne Dalton 9100 and 9600 foamcore pinch-resistant doors. For other models, contact us before ordering.

Q: What tools do I need for installation?

A 7/16" socket or nut driver, Phillips screwdriver, and locking pliers are enough. Keep the door closed and replace one hinge at a time.

Q: Where can I watch an installation guide?

Watch our step-by-step video: https://youtu.be/LtmAk-c5R4I.

Express Garage Doors

SKU: EGD-9100KIT-4P-S-INT

.price-ui--loading { display: block !important; opacity: 1 !important; }

$79.99 - $178.99$95.99 - $214.99

Description
Reviews
FAQs

Description

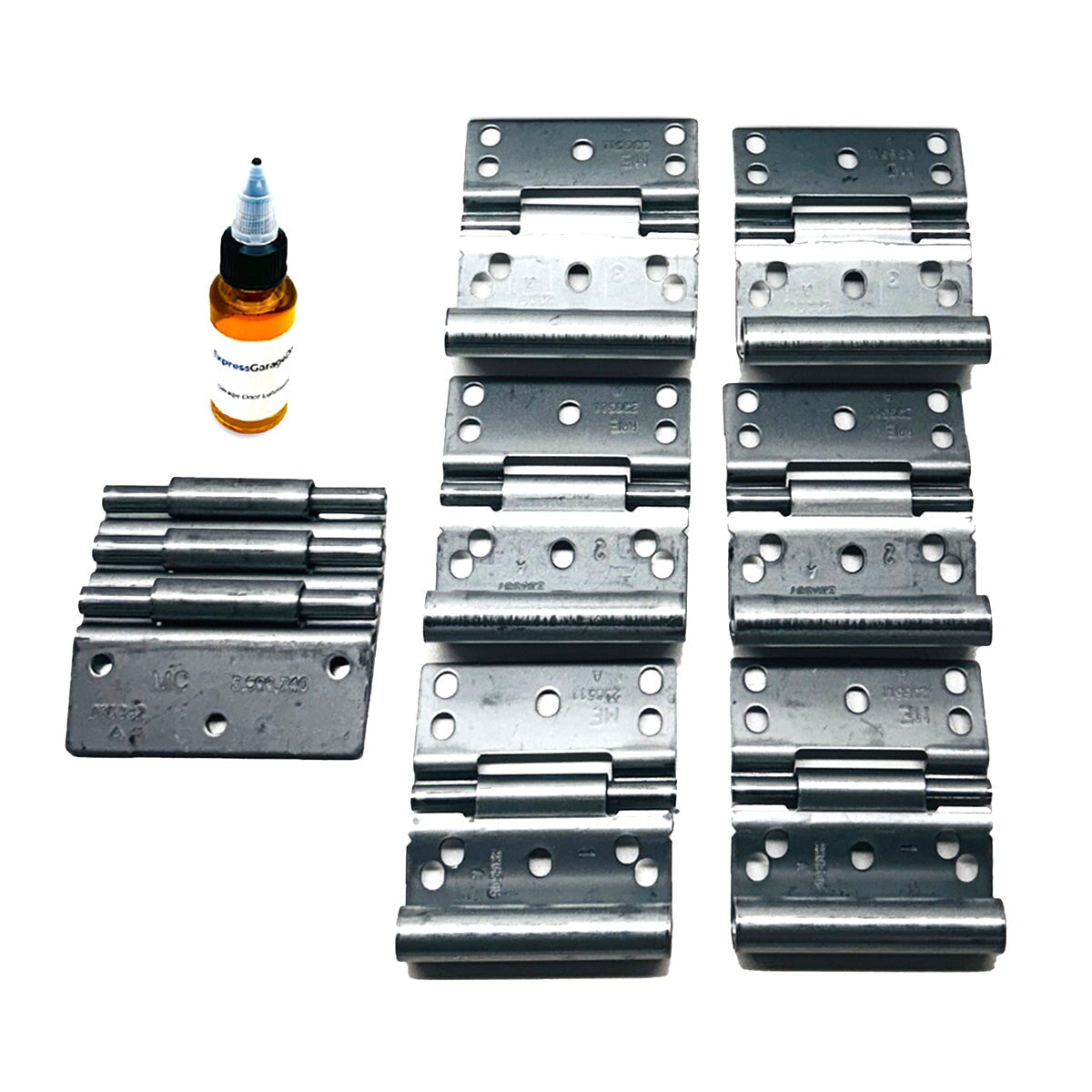

Restore your Wayne Dalton 9100 or 9600 garage door to like-new condition with this Complete Hinge Replacement Kit. Designed specifically for foamcore, pinch-resistant steel doors, this kit includes every hinge needed—both inner and outer—plus lubricant for quiet, balanced operation.

Why Replace All the Hinges?

Hinges bear the constant flex and weight of each door panel. Over time, they can bend, crack, or seize up, causing noisy movement and poor alignment. Replacing all hinges at once ensures even support across the door, eliminates grinding sounds, and restores proper panel spacing.

What’s Included

Outer Anti-Pinch Hinges (2 each):
- 4-Panel doors: 161525, 161526, 161527
- 5-Panel doors: 161525, 161526, 161527, 161528

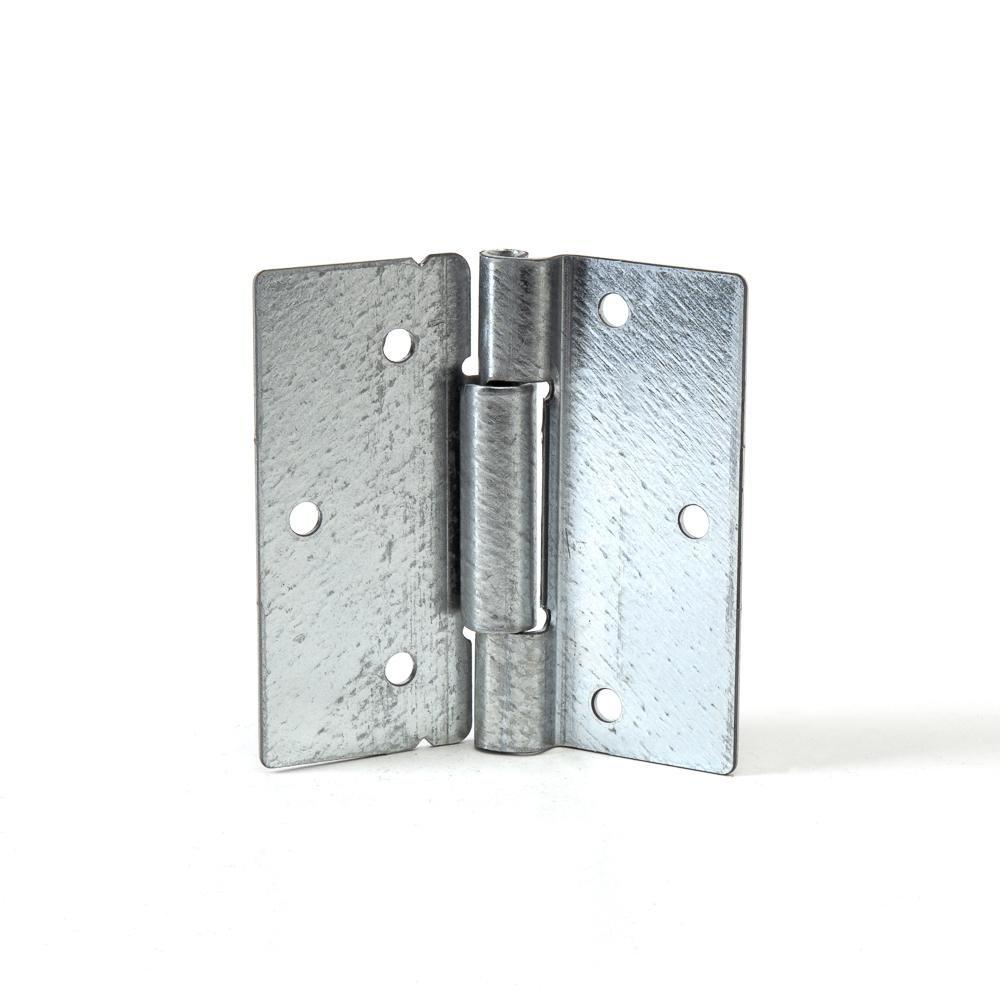

Foamcore Interior Hinges (161529):
- 4-Panel doors – 8–9 ft: 3 hinges, 10–12 ft: 6 hinges, 16-18 ft: 9 hinges
- 5-Panel doors – 8–9 ft: 4 hinges, 10–12 ft: 8 hinges, 16-18 ft: 12 hinges
Lubricant: 1 oz Express Garage Doors High-Performance Garage Door Lubricant

Features & Benefits

Complete set of inner and outer hinges for Wayne Dalton 9100 & 9600 doors
Genuine-spec galvanized steel construction resists corrosion
Restores quiet operation and smooth panel travel
Anti-pinch design improves safety at section joints
Includes lubricant to reduce friction and prevent rust

Compatibility

Specifically designed for Wayne Dalton 9100 and 9600 foamcore pinch-resistant steel doors. Choose your Panel (4 or 5) and Door Width (8–9 ft, 10–12 ft, or 16-18 ft) to receive the correct hinge quantities.

Installation Tips

Keep the door fully closed and secured while working.
Replace one hinge at a time to maintain alignment.
Use a 7/16" socket wrench or nut driver to remove and install bolts.
Add our 1/4"-20 x 7/8" Tek Screws if your current screws are worn or rusted.
Lubricate each hinge knuckle and roller bearings after installation.

Video Guide

Follow our step-by-step hinge replacement video:

About the Lubricant

Each kit includes our exclusive Express Garage Doors 1 oz High-Performance Garage Door Lubricant, formulated to reduce friction, protect against corrosion, and maintain smooth operation across all moving components.

What’s the difference between this Complete Hinge Kit and the Base Kit?

The Complete Hinge Kit includes both the outer anti-pinch hinges and the inner foamcore hinges, along with lubricant. The Base Kit includes only the outer hinge set and lubricant.

How do I know if I need to replace all my hinges?

If your door makes popping or squeaking noises, shows gaps between panels, or if hinges are cracked, bent, or rusted, it’s best to replace all of them at once for even alignment and balanced movement.

How many hinges come in this kit?

Quantities depend on your door width and panel count. The kit includes all inner and outer hinges required for 4- or 5-panel Wayne Dalton 9100 and 9600 doors, plus lubricant.

Does this kit include screws?

No. Screws are not included. If your fasteners are worn or missing, add our 1/4"-20 x 7/8" Zinc-Plated Self-Drilling Tek Screws for a perfect fit with Wayne Dalton hinges.

Will this kit fit other Wayne Dalton models?

This kit is designed specifically for Wayne Dalton 9100 and 9600 foamcore pinch-resistant doors. For other models, contact us to confirm compatibility.

What tools do I need for installation?

Basic hand tools are enough—use a 7/16" socket wrench or nut driver, Phillips screwdriver, and locking pliers. Keep the door closed and replace one hinge at a time.

Should I lubricate the hinges after installation?

Yes. Apply the included 1 oz Express Garage Doors lubricant to each hinge knuckle and roller bearings after tightening the hardware. This prevents squeaks and rust.

Where can I watch an installation guide?

View our step-by-step video tutorial here: Wayne Dalton Hinge Replacement Video.
