Wayne Dalton 9100 & 9600 Anti-Pinch Hinge Replacement Kit

Express Garage Doors

SKU: EGD-9100KIT-4P-BASE

.price-ui--loading { display: block !important; opacity: 1 !important; }

$49.99 - $69.99$59.99 - $83.99

Description
Reviews
FAQs

Description

Refresh your Wayne Dalton 9100 or 9600 garage door with this complete outer hinge replacement kit from Express Garage Doors. Designed for foamcore, pinch-resistant doors, this kit replaces the critical outer hinge hardware that connects your rollers and supports smooth panel movement.

Restore Safe, Quiet Door Operation

Over time, garage door hinges can wear, bend, or corrode, causing noisy operation and uneven travel. This kit includes genuine-spec anti-pinch hinges to restore your door’s original performance and help prevent finger injury between panels. The included 1 oz High-Performance Garage Door Lubricant reduces friction and protects against rust for long-term reliability.

Included Parts

Outer Anti-Pinch Hinges (2 each):

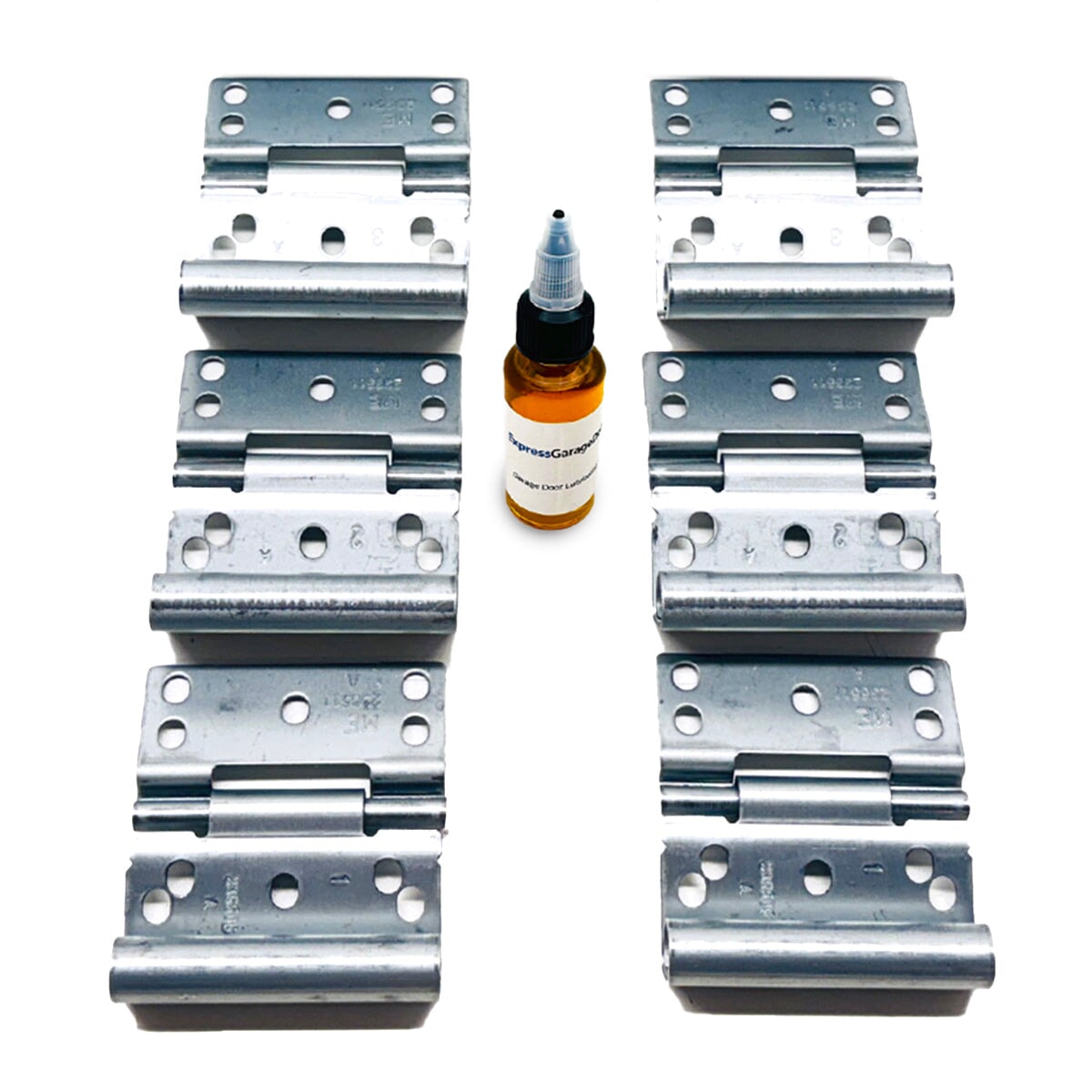

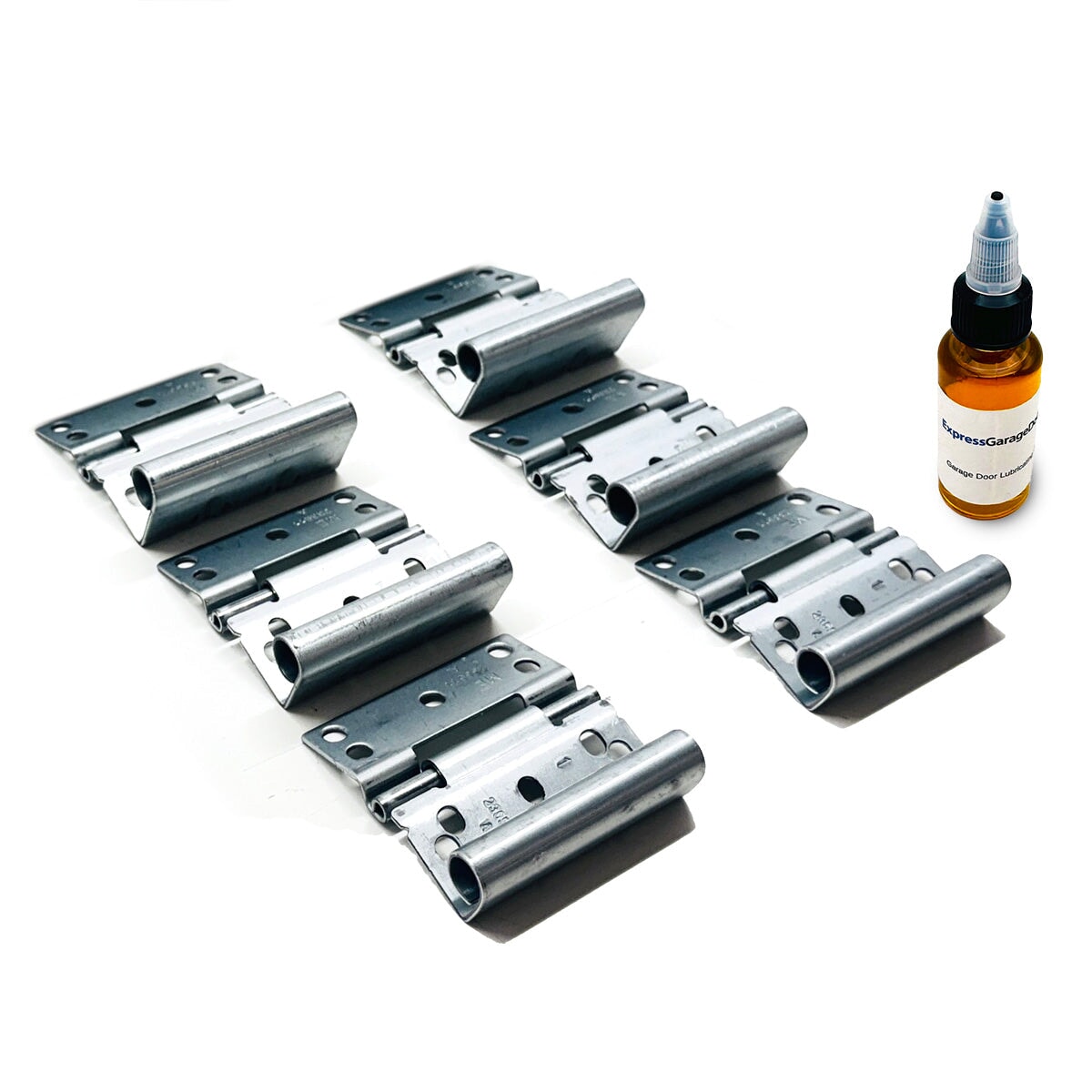

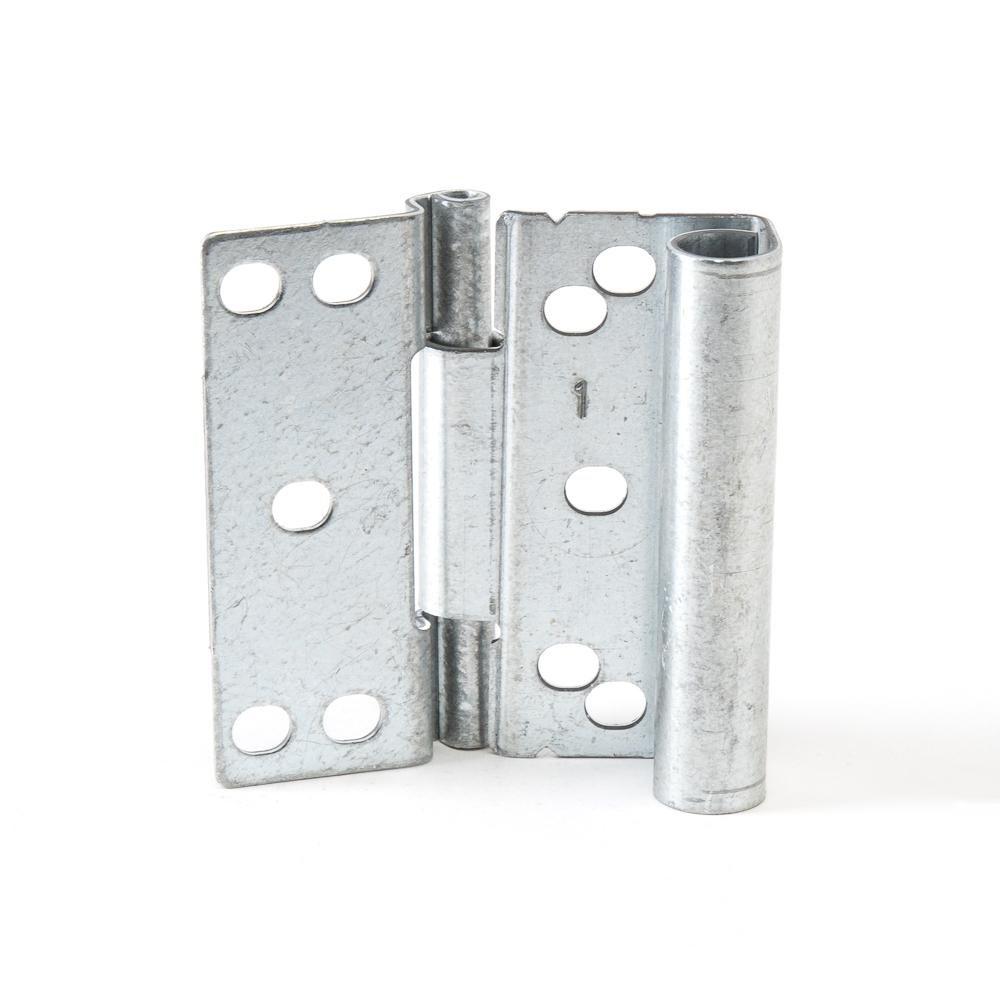

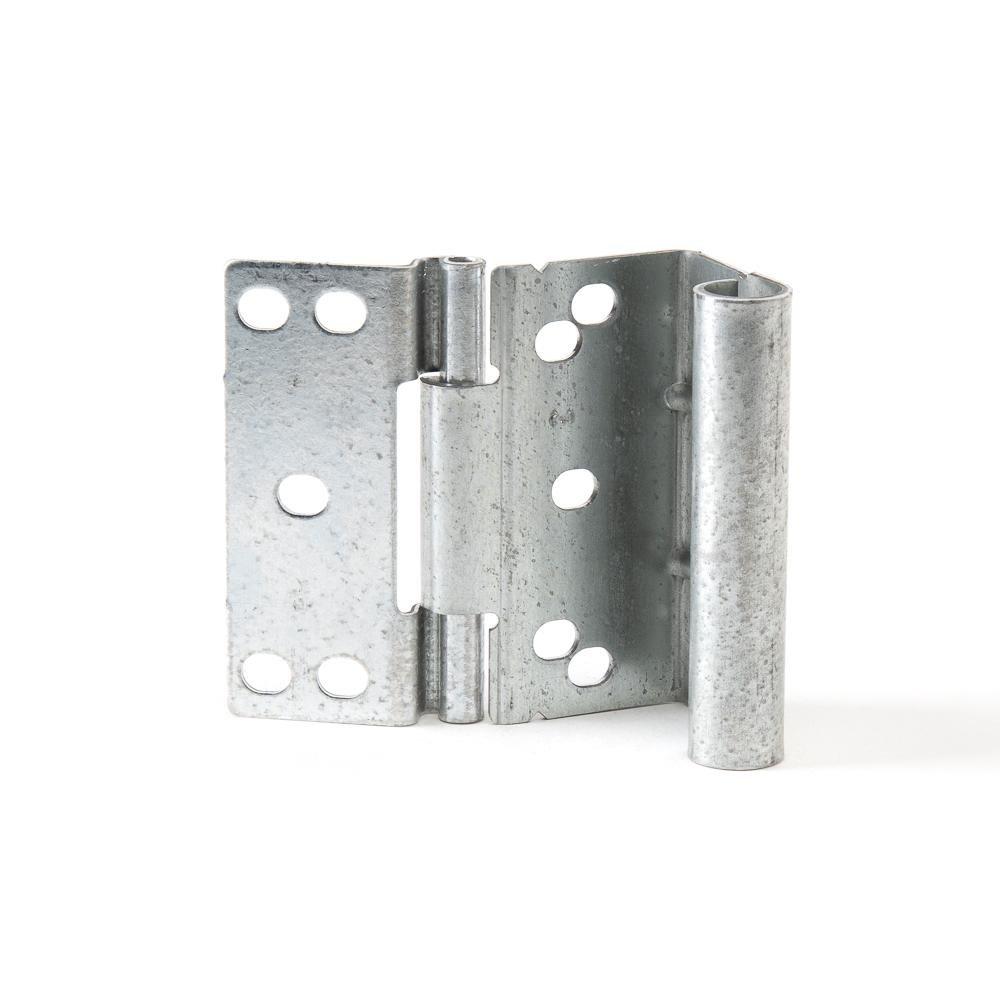

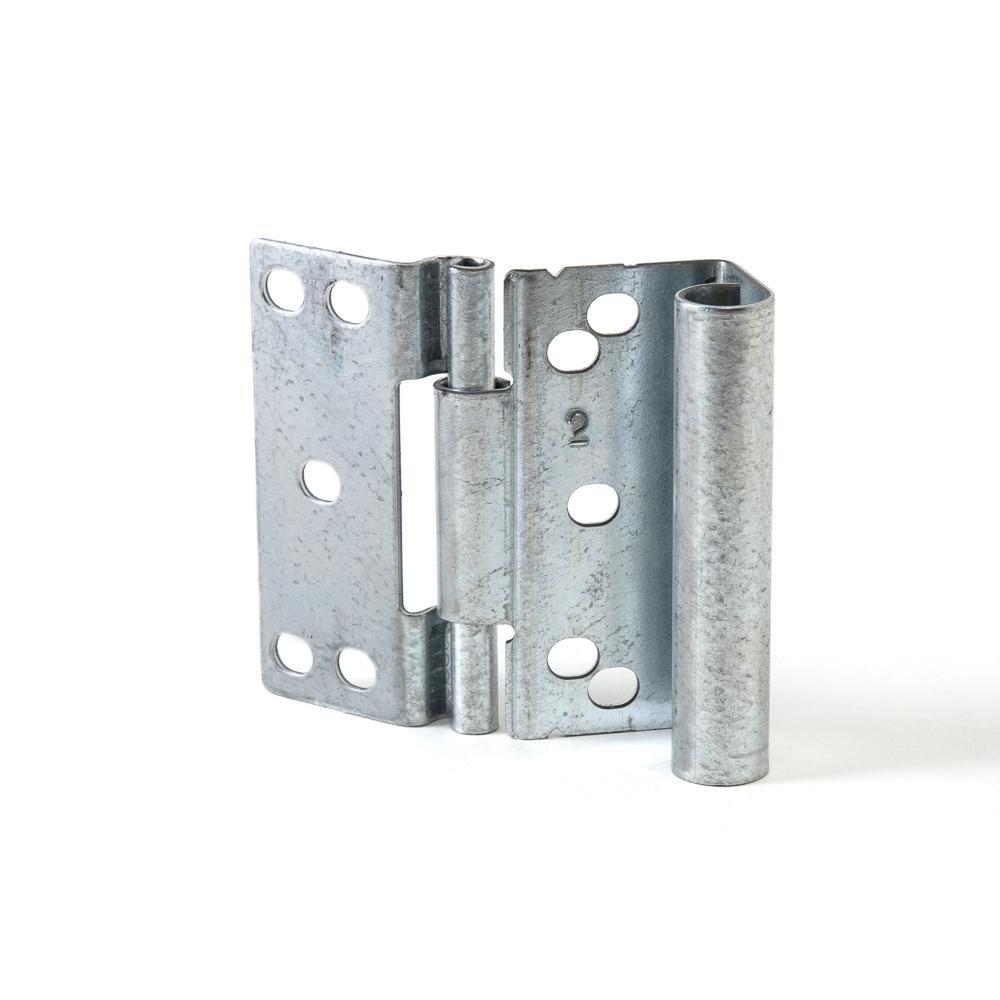

- 4-Panel doors: 161525, 161526, 161527

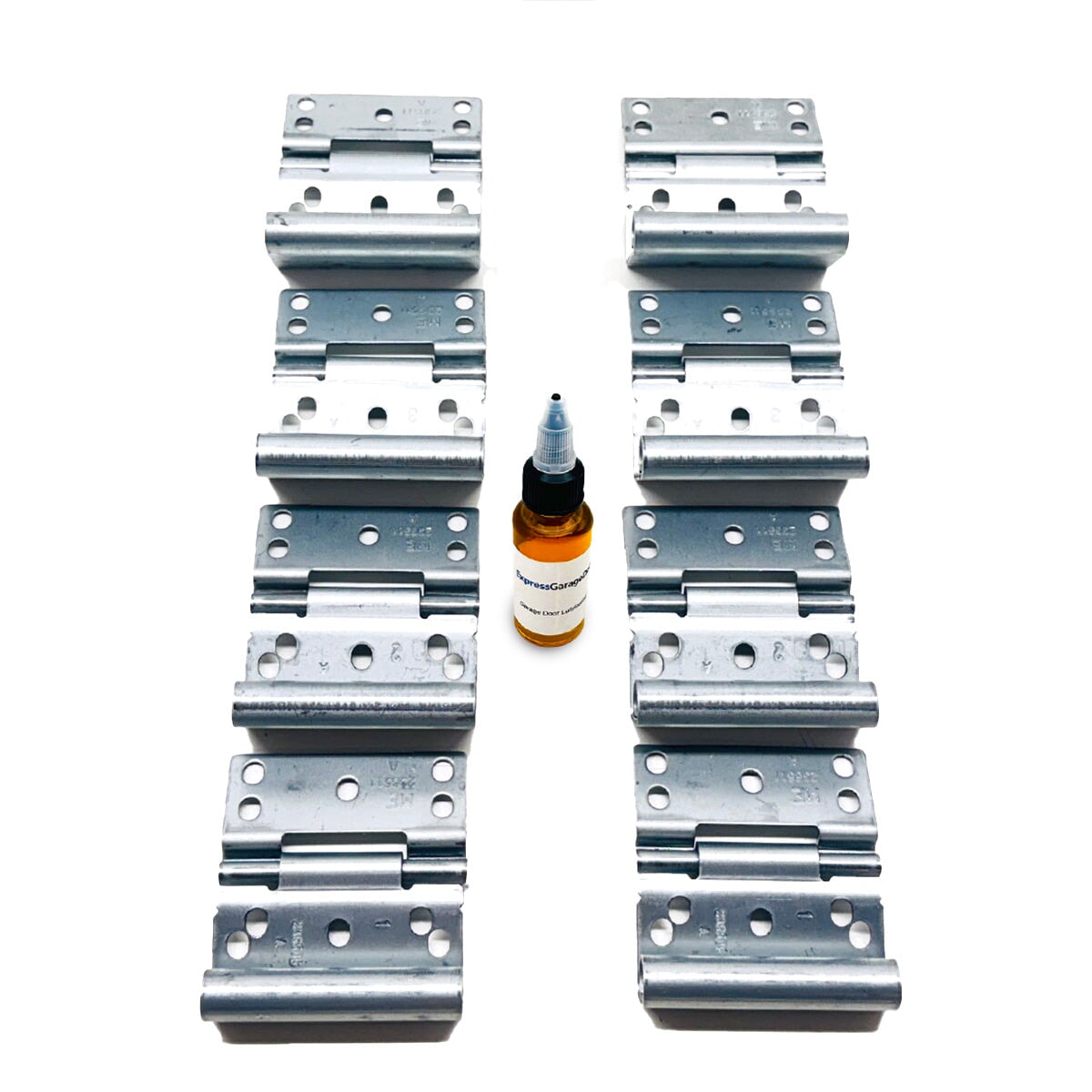

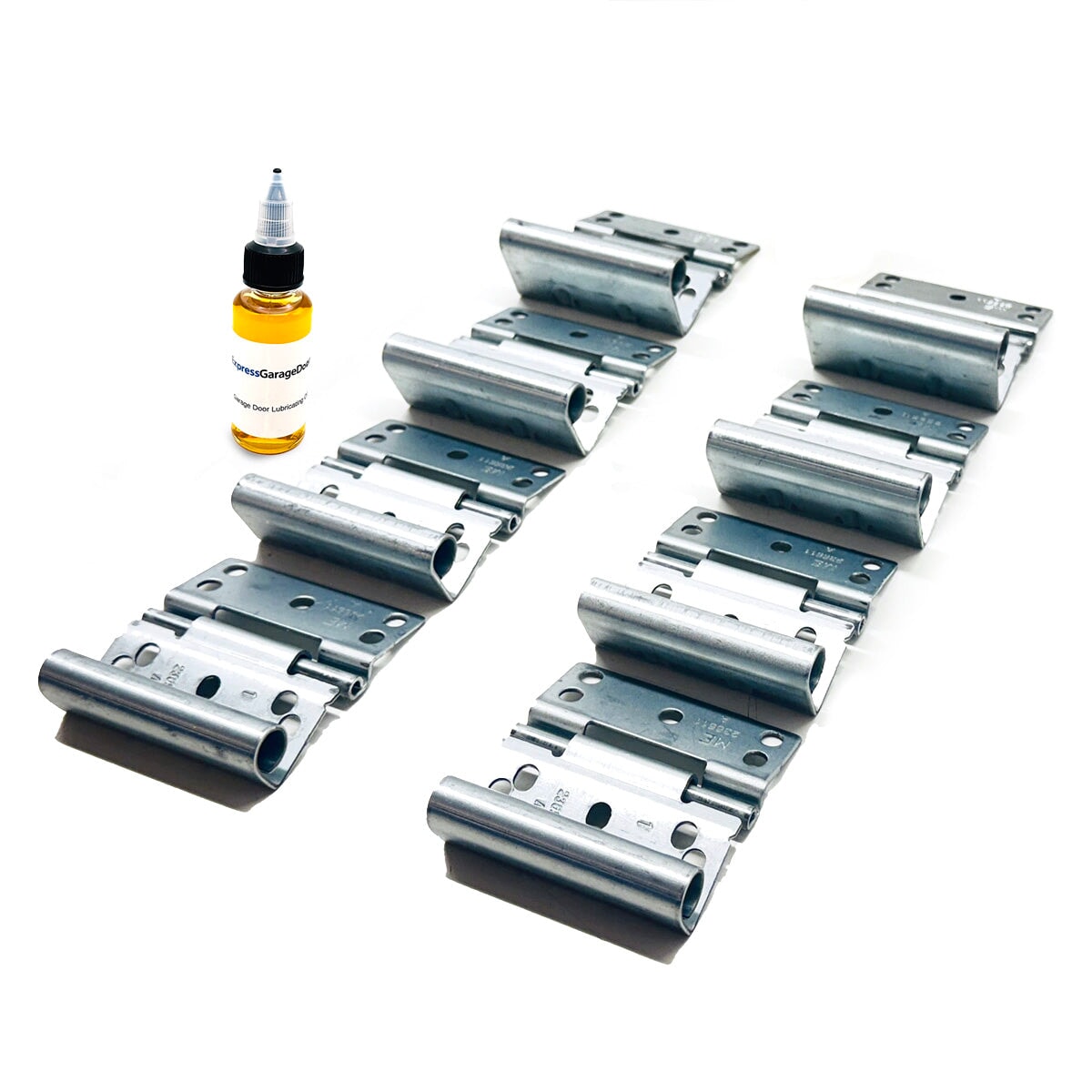

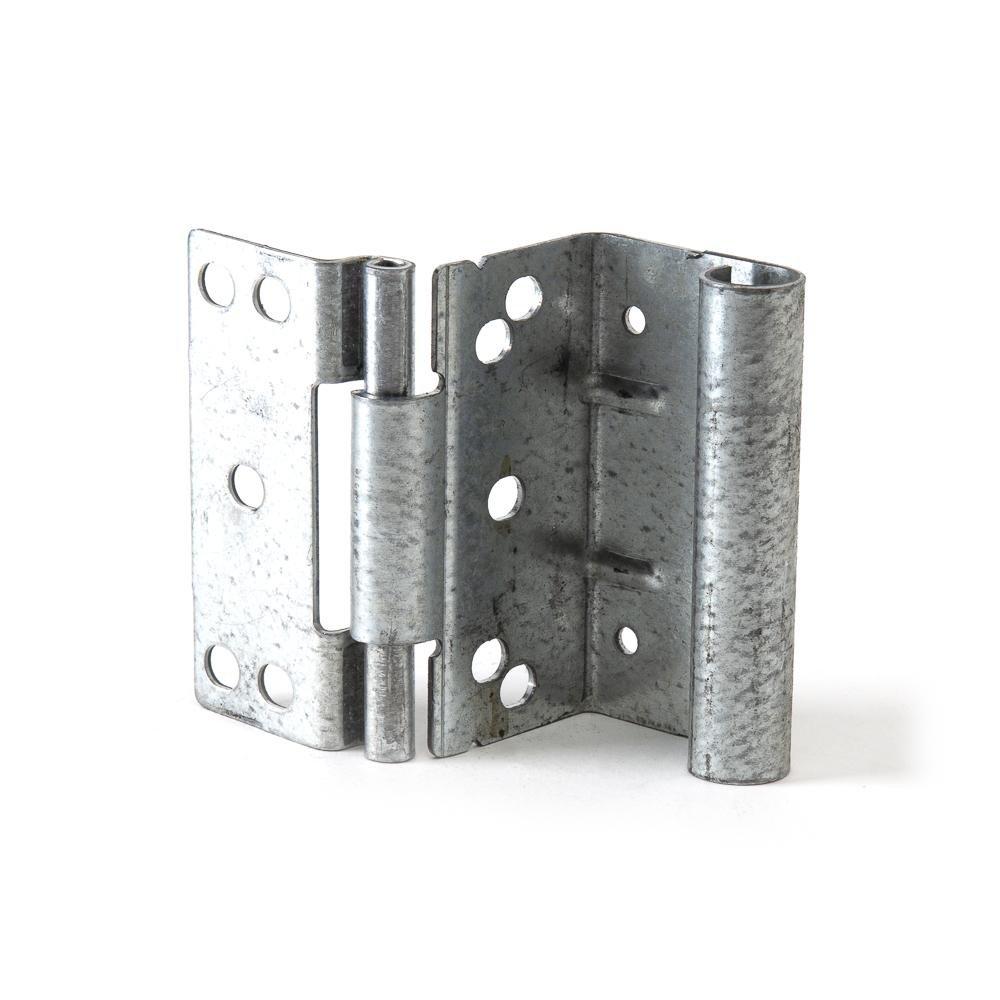

- 5-Panel doors: 161525, 161526, 161527, 161528
Lubricant: 1 oz Express Garage Doors High-Performance Garage Door Lubricant

Features

Direct replacement for Wayne Dalton 9100 and 9600 foamcore pinch-resistant doors
Top-quality galvanized steel construction
Precision-fit hinge sizing ensures proper panel alignment
Anti-pinch design for safer operation
Corrosion-resistant finish for long service life

Compatibility

This hinge set is designed for all Wayne Dalton 9100 and 9600 steel foamcore doors. Confirm your hinge numbers (stamped on existing hinges) before ordering.

Installation Video

Watch our step-by-step guide here:

Pro Tips

Replace one hinge at a time while the door is closed and secured.
Lubricate hinge knuckles and roller stems after installation.
Inspect rollers and cables while you work—replace if worn.

Why Choose Express Garage Doors

We specialize in Wayne Dalton parts and DIY kits. Every hinge kit is built with authentic components, clear instructions, and reliable support—helping homeowners save time, noise, and repair costs.

How do I know if my garage door hinges need replacement?

Common signs include loud squeaking, jerky door movement, or visible bending or cracking in the hinge metal. If the door feels uneven or binds while moving, it's time to replace the hinges.

How do I choose between the 4-panel and 5-panel kit options?

Count the number of horizontal panels on your garage door. A standard 7 ft door usually has 4 panels, while some wider or taller doors have 5. Select the kit that matches your panel count—each includes the correct hinge combination for that style.

Do I need any special tools to replace the hinges?

Basic hand tools are enough—use a 7/16" socket wrench or nut driver, Phillips screwdriver, and locking pliers. For safety, keep the door fully closed while replacing one hinge at a time.

Does this kit include screws?

No. Screws are not included. If your old screws are stripped or corroded, we recommend adding our 1/4"-20 x 7/8" Zinc-Plated Self-Drilling Tek Screws for the perfect fit with Wayne Dalton hinges.

Is this kit compatible with other Wayne Dalton door models?

This hinge set is specifically designed for Wayne Dalton 9100 and 9600 foamcore pinch-resistant steel doors. For other Wayne Dalton models, please contact us before ordering.

How do I install the new hinges?

Work with the door closed. Remove one hinge at a time, unbolt the old hinge, and align the new hinge in the same position. Re-use existing bolts or install new Tek Screws. Tighten snugly and lubricate the moving joints. See our video guide here: Watch installation video.

Should I lubricate the hinges after installation?

Yes. Apply a few drops of the included 1 oz Express Garage Doors lubricant to each hinge knuckle and roller stem after tightening the hardware. This helps prevent rust and squeaking.
