Residential Wide Body Hinge 14 Gauge #1-#6

Residential 14-gauge wide body hinges for heavier residential and light commercial doors. Use the stamped number (#1-#6) to match end vs center positions. Pair with matching rollers when refreshing a door.

Related: 2" Nylon Roller with 11 Ball Bearings - 4" Zinc Plated Stem, Universal Quieting Garage Door Kit, Residential Wide Body Hinge 16 Gauge.

• Quality 14 Gauge (about the thickness of a nickel) Galvanized Steel.
• Used on Heavy Residential and Light Commercial applications.
• Assorted hinge bracket hole combinations.
• Look at your existing garage door hinge and find the number stamped on hinge to determine correct number size.

These hinges are approximately 2.75" wide and 7.25" long. Overall leaf size is the same across numbers; the stamped number (#1-#6) sets roller carrier height for the door's track angle.

Sizes:

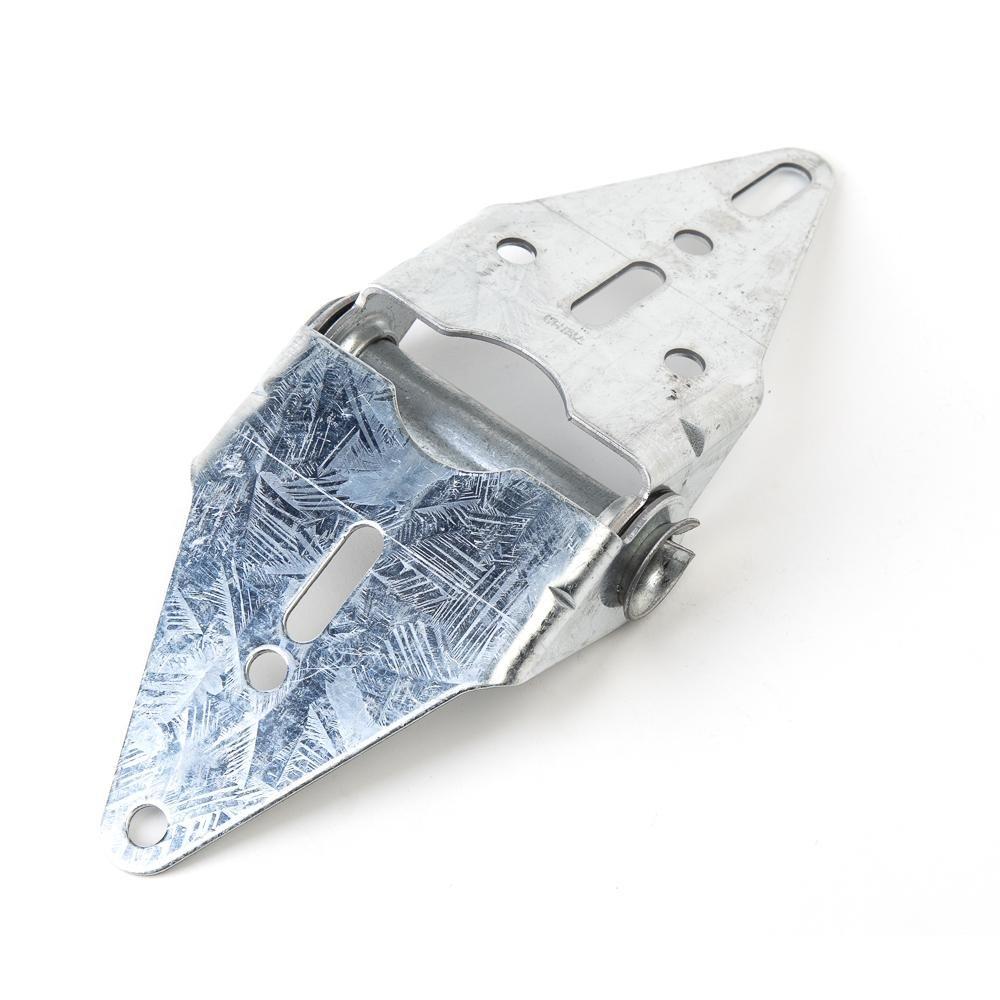

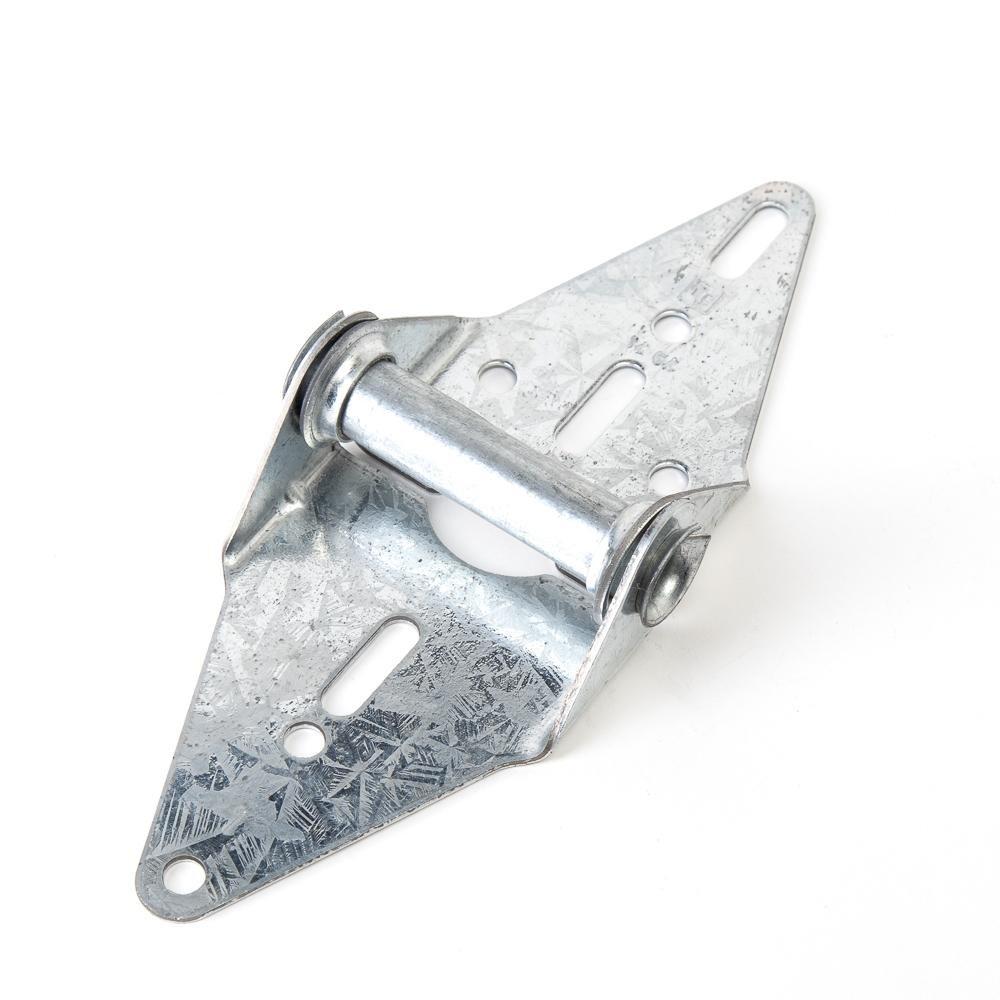

• #1 (RS-300-10020) - Center hinges; often end hinge on bottom section.

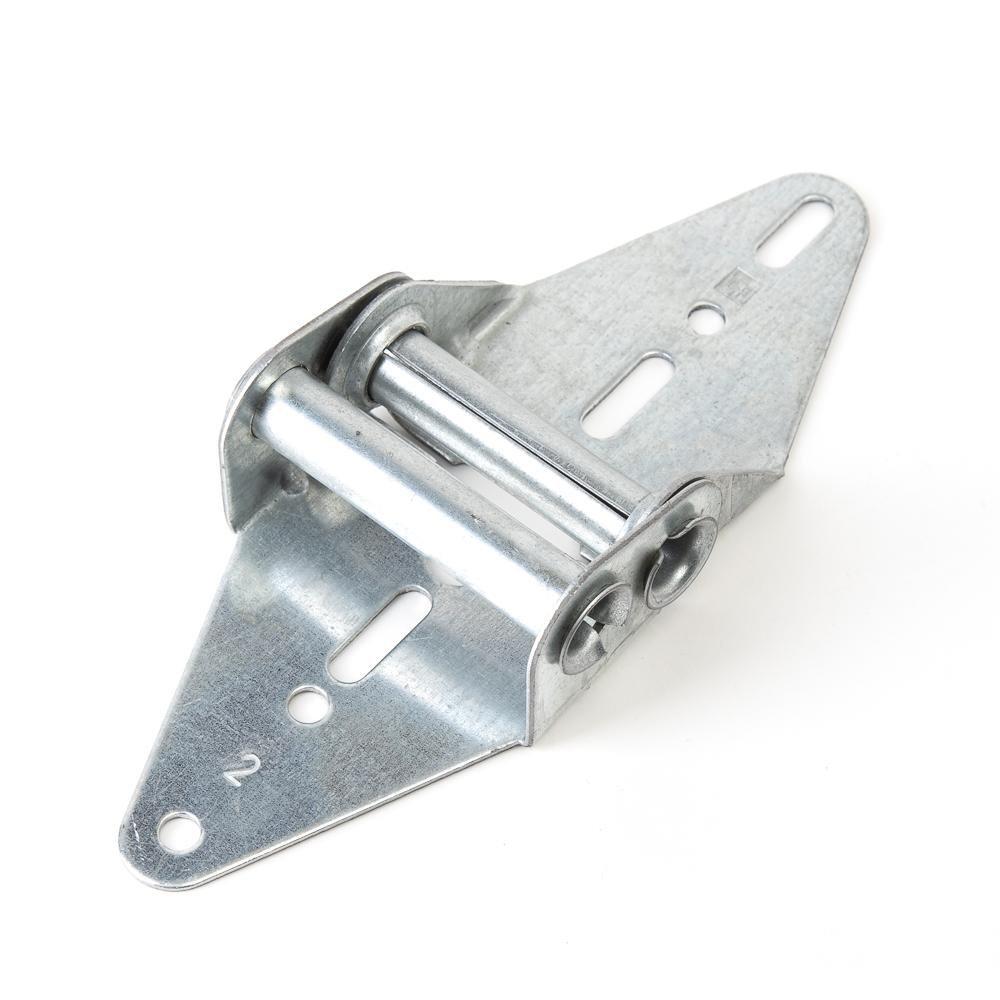

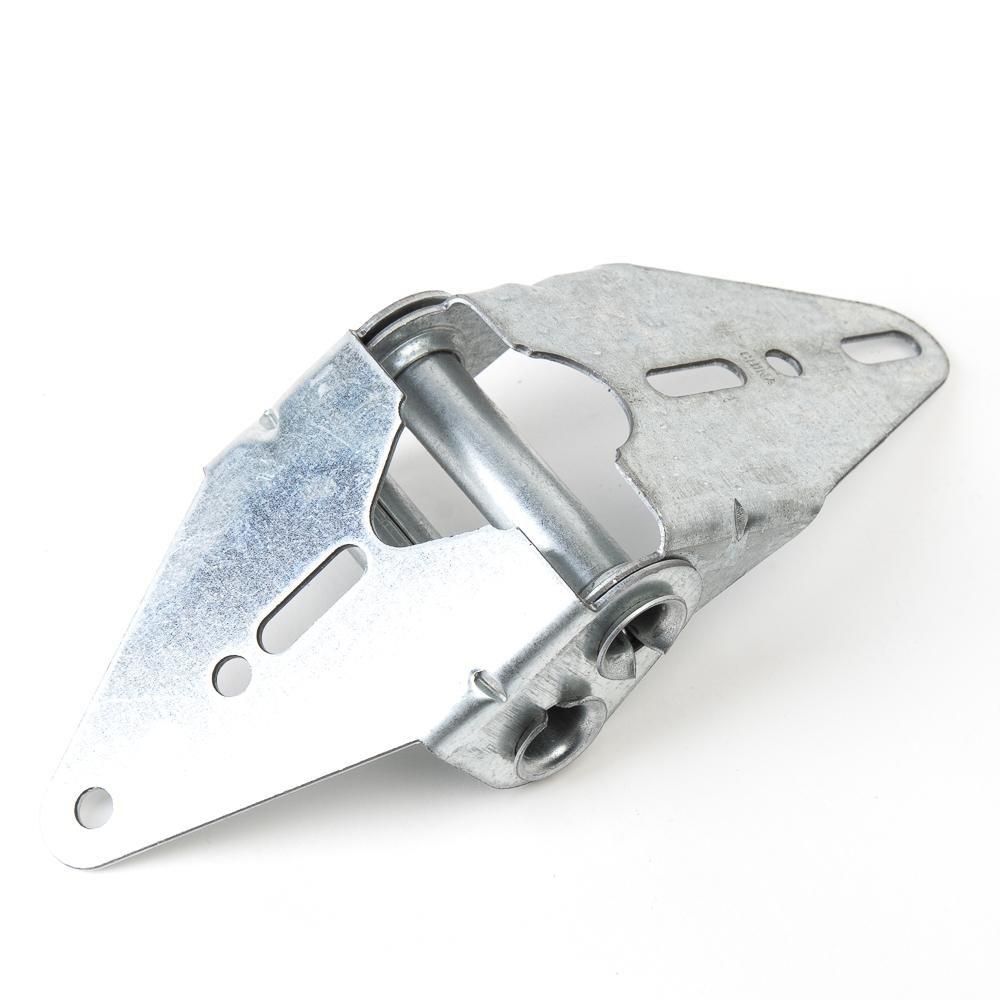

• #2 (RS-300-10021) - End hinge between 2nd and 3rd panels (higher roller stand-off than #1).

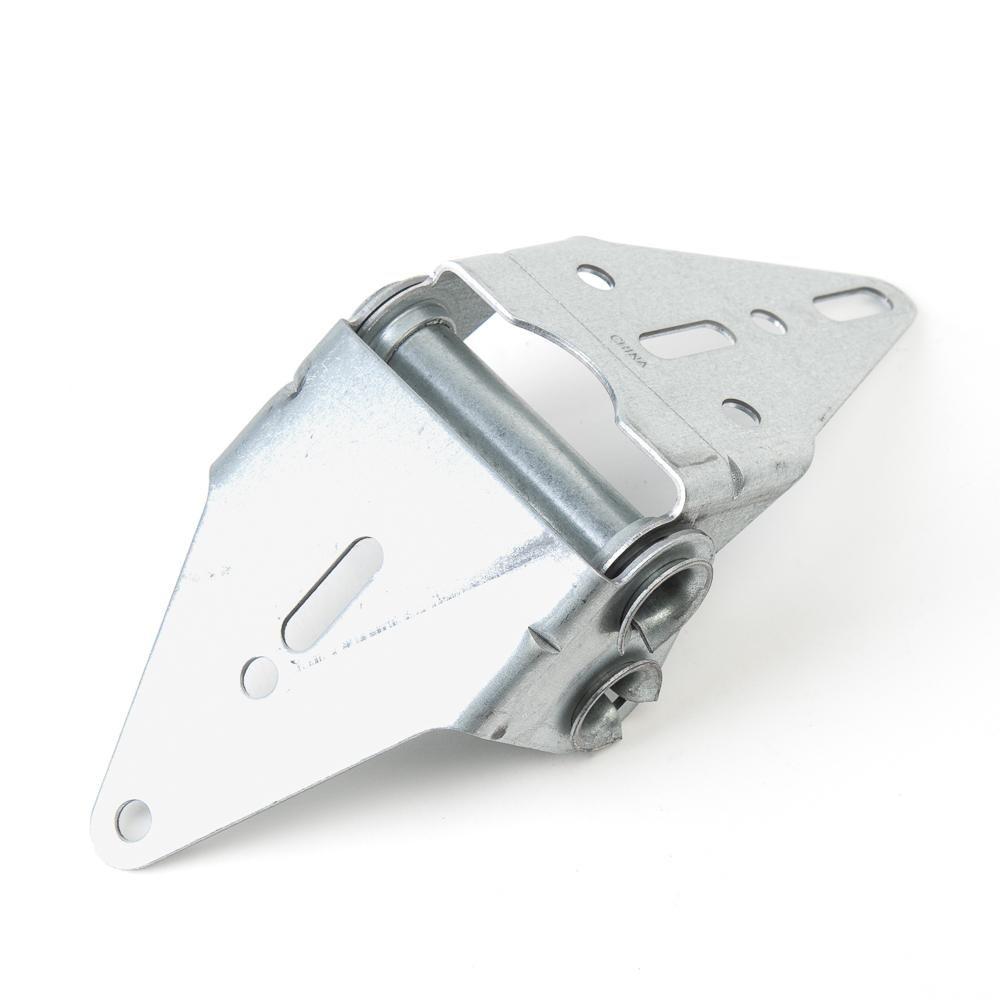

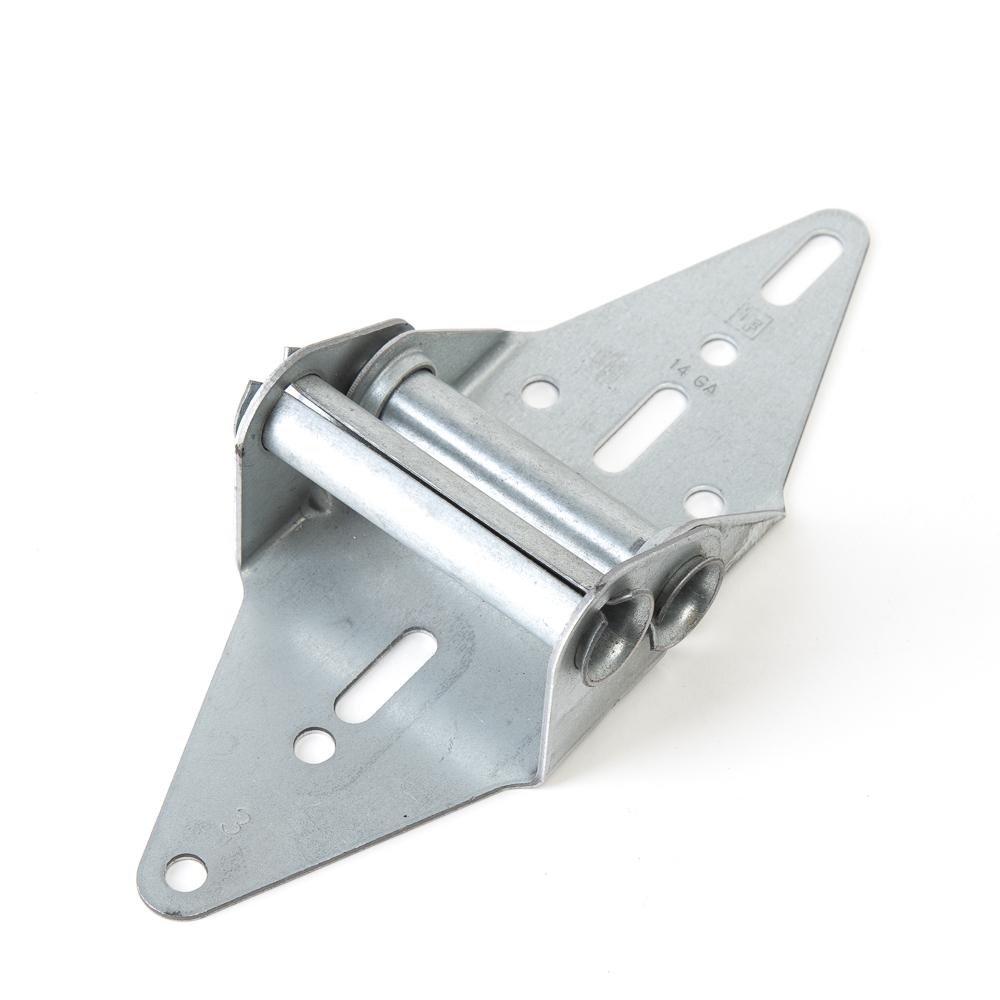

• #3 (RS-300-10022) - End hinge between 3rd and 4th panels.

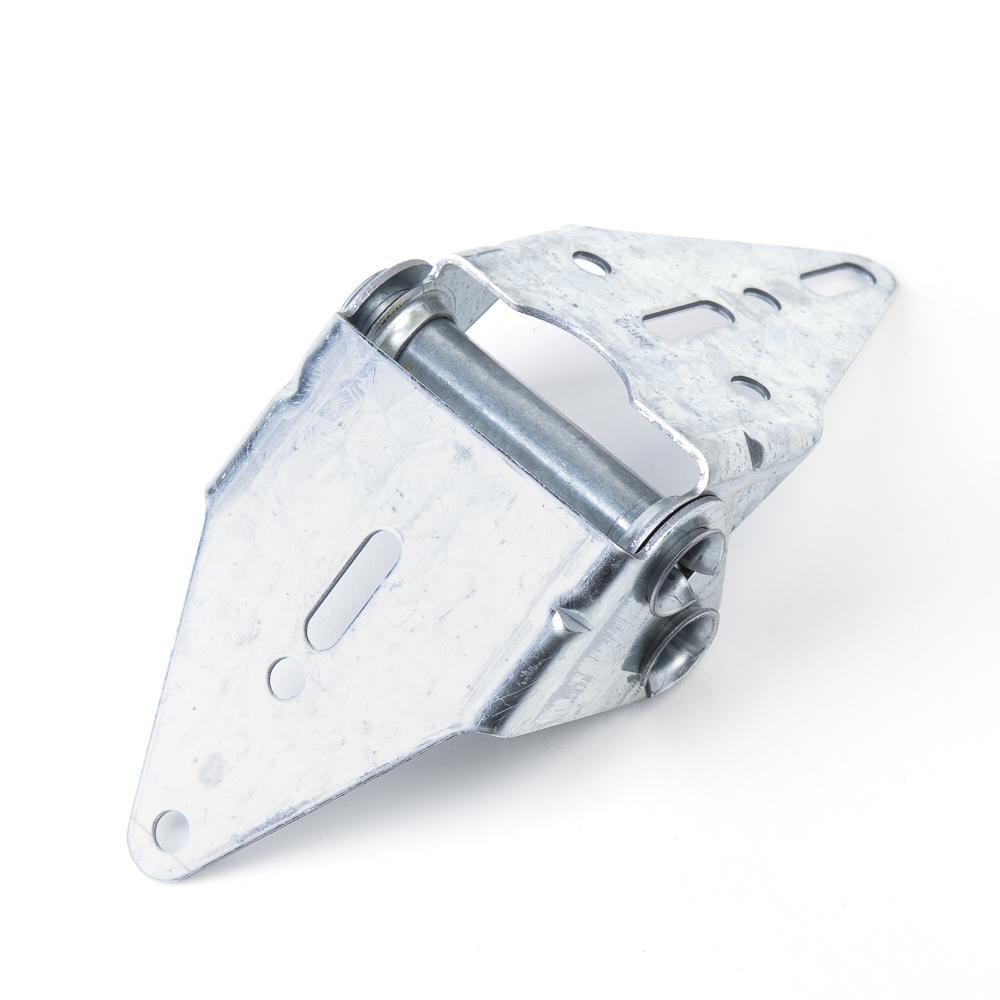

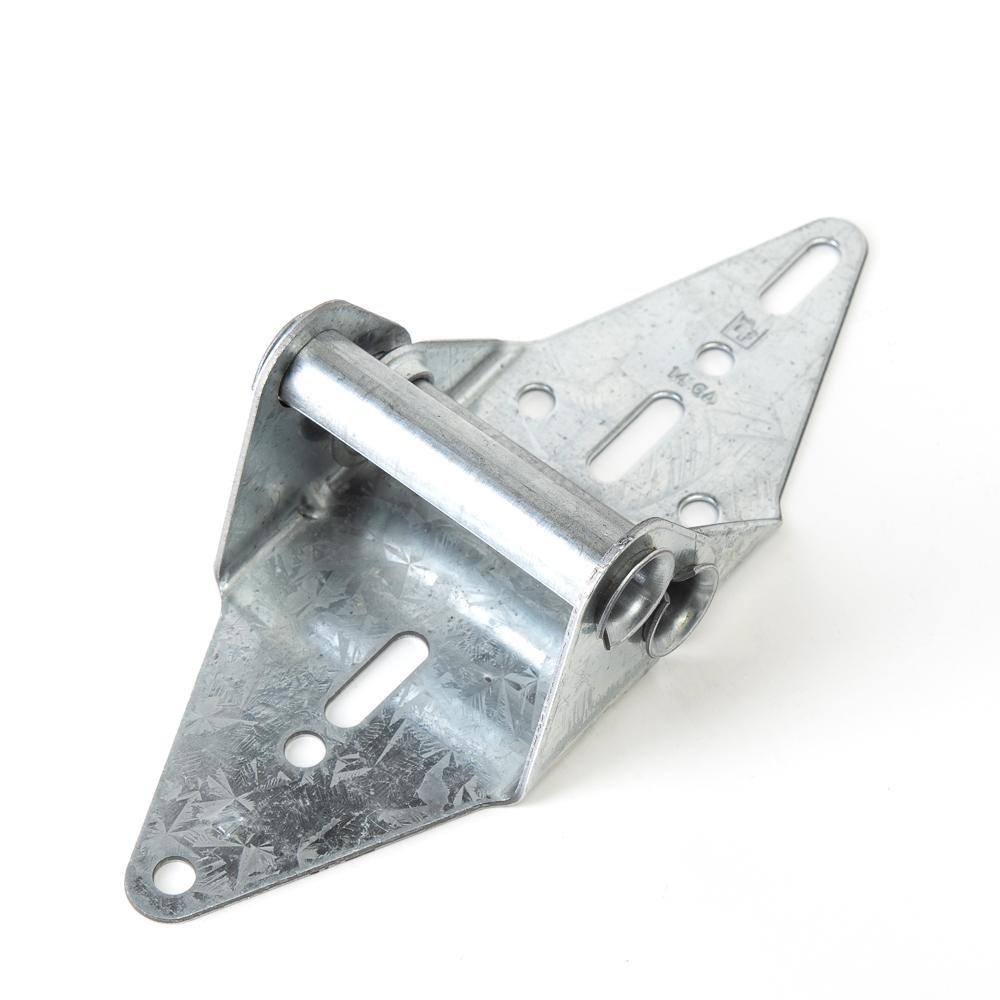

• #4 (RS-300-10023) - End hinge on taller door stack.

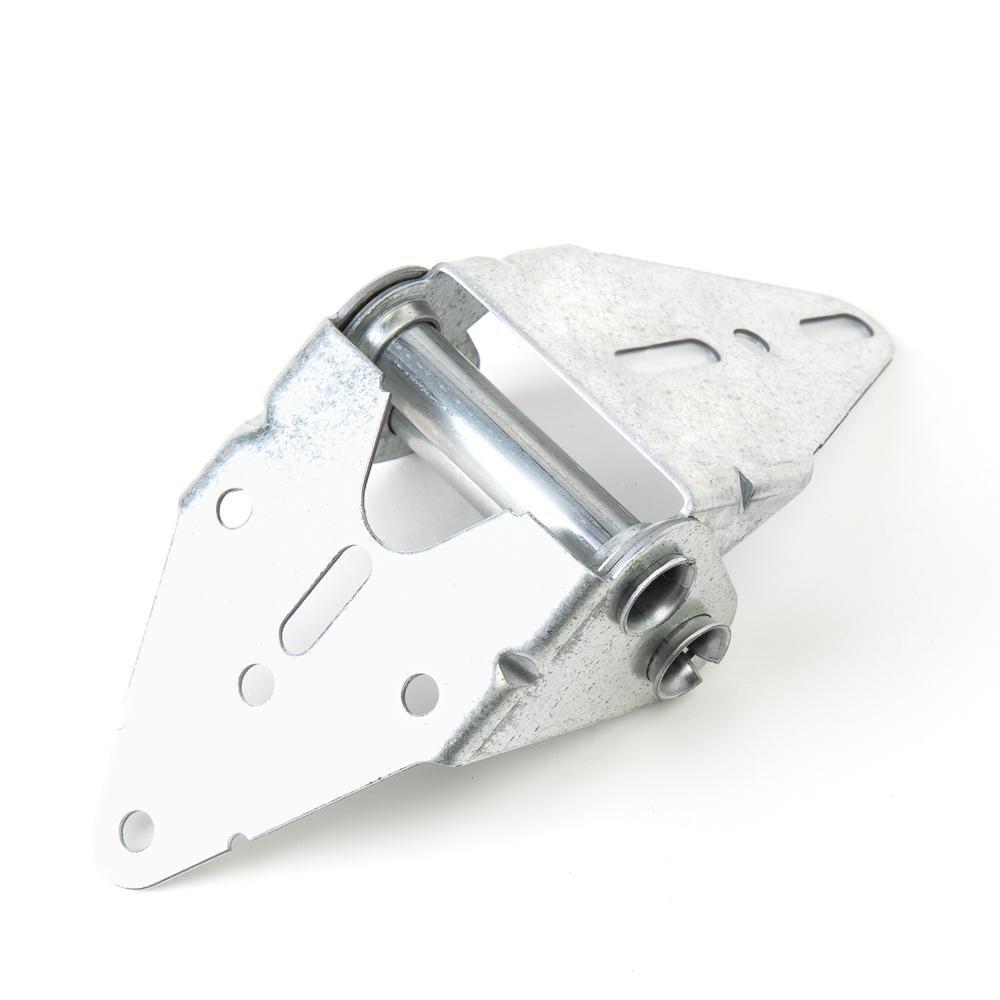

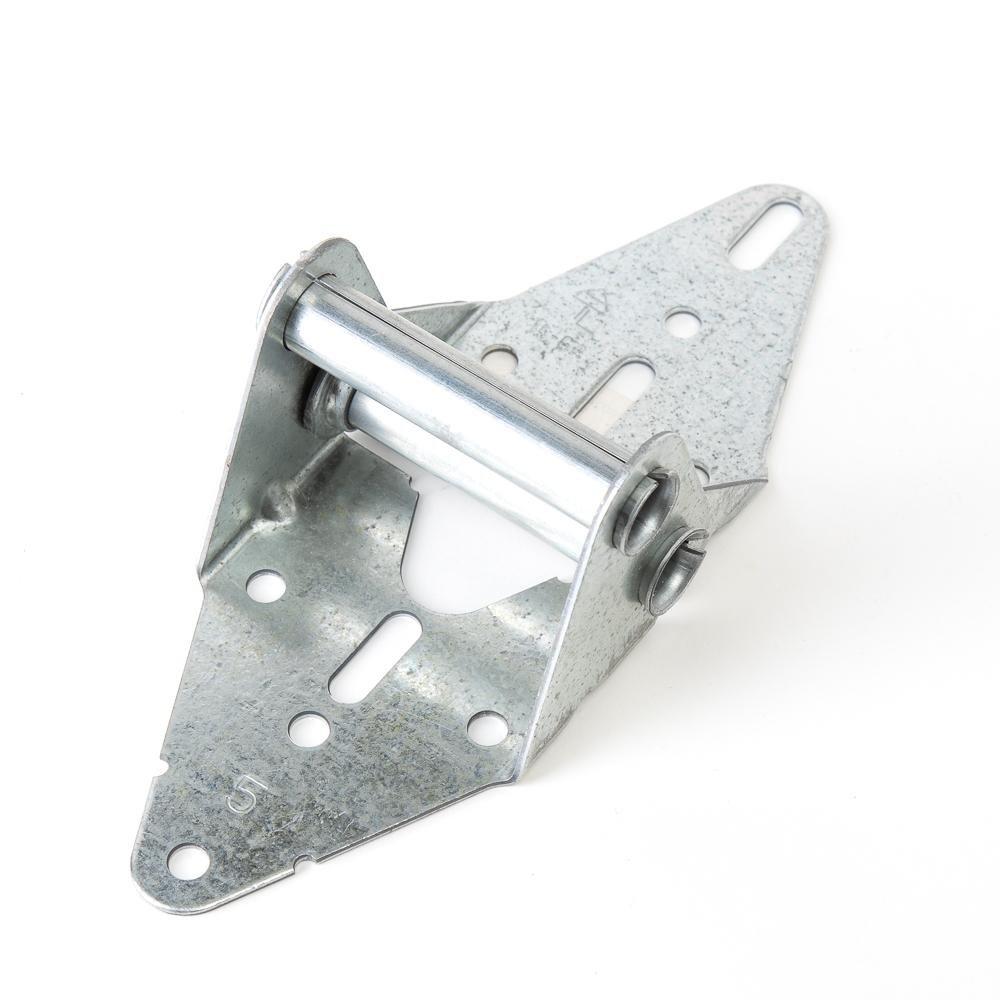

• #5 (RS-300-10024) - End hinge for taller multi-section doors.

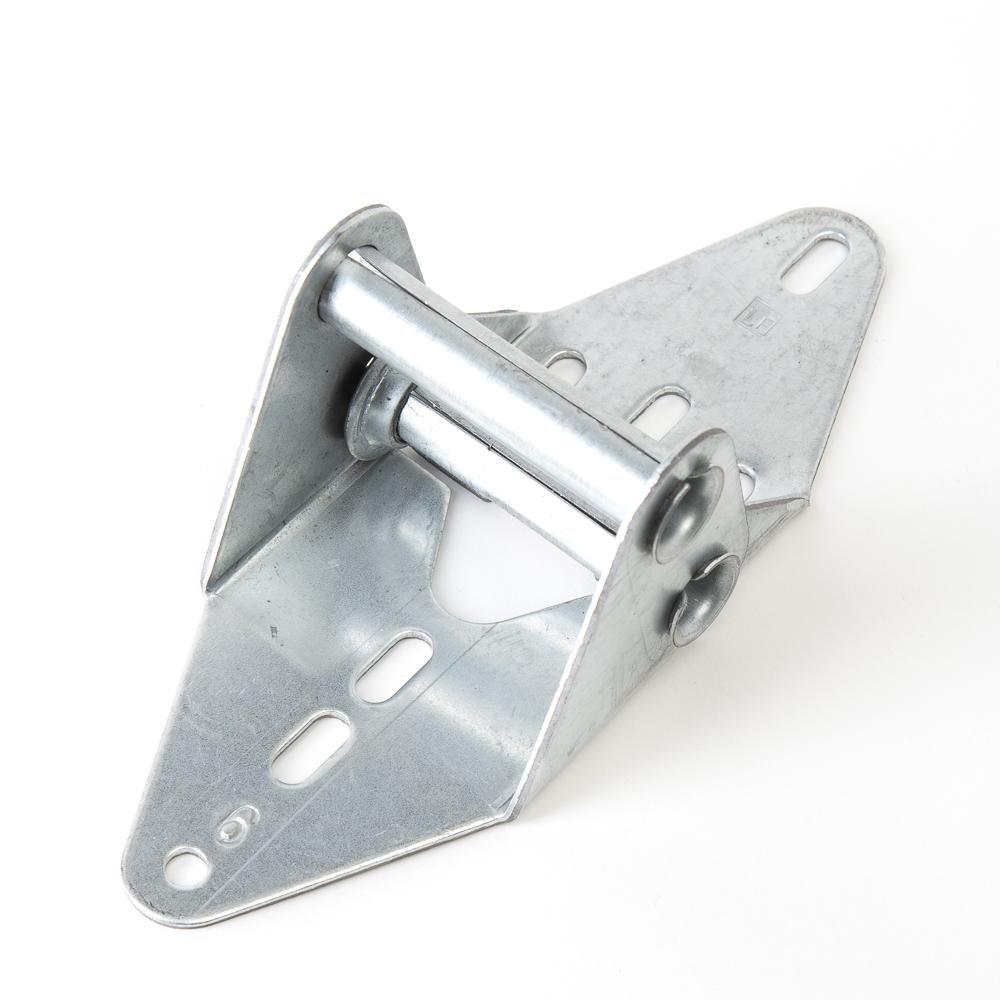

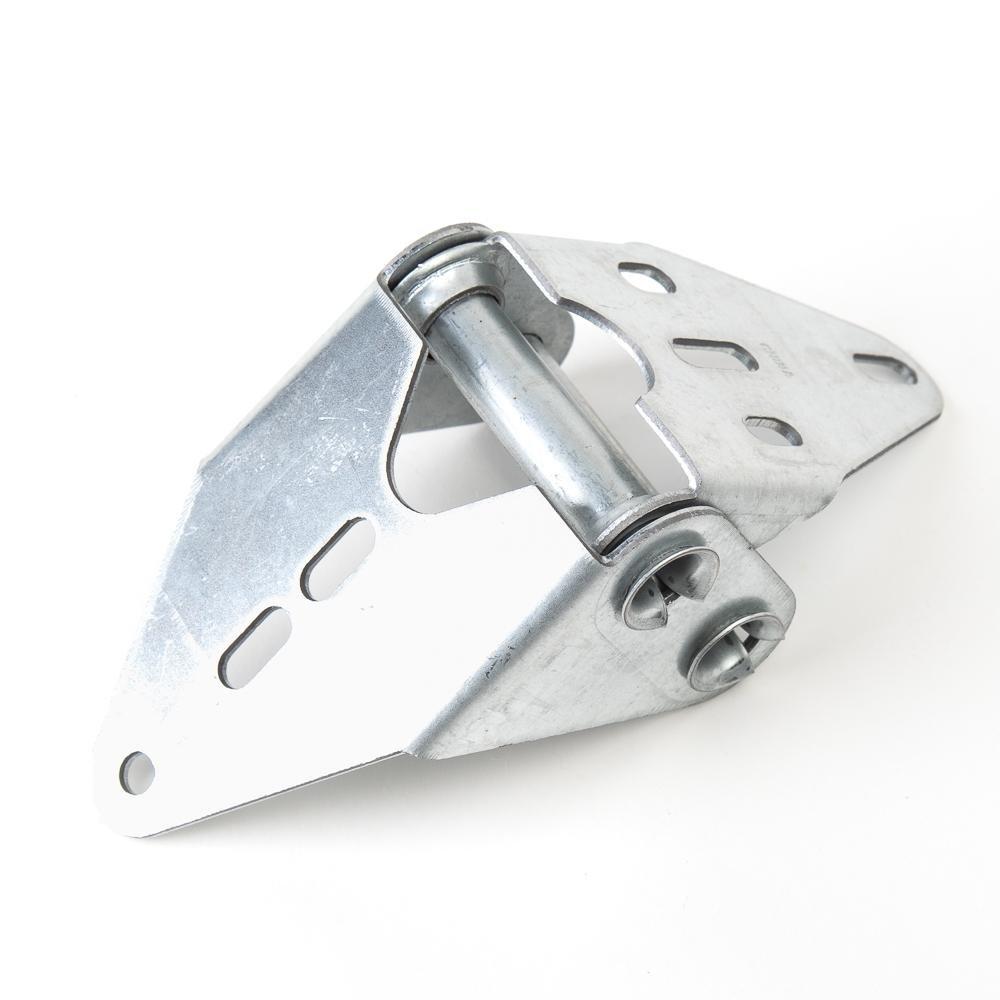

• #6 (RS-300-10025) - End hinge for tallest residential stacks.

Match the number stamped on your hinge. Prefer this 14 gauge set for heavier wood or higher-quality doors. For standard residential thickness see 16 gauge wide body hinges. Pair with rollers and a quieting kit when refreshing hardware.
