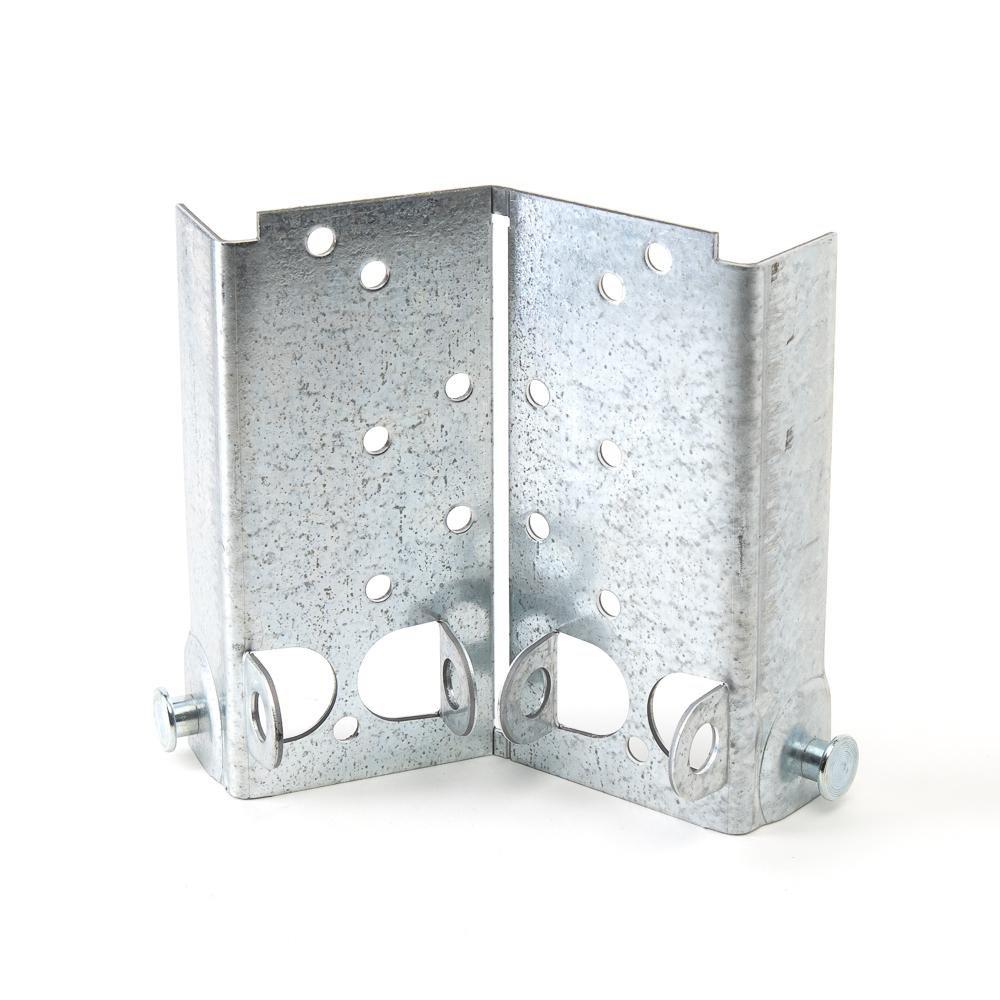

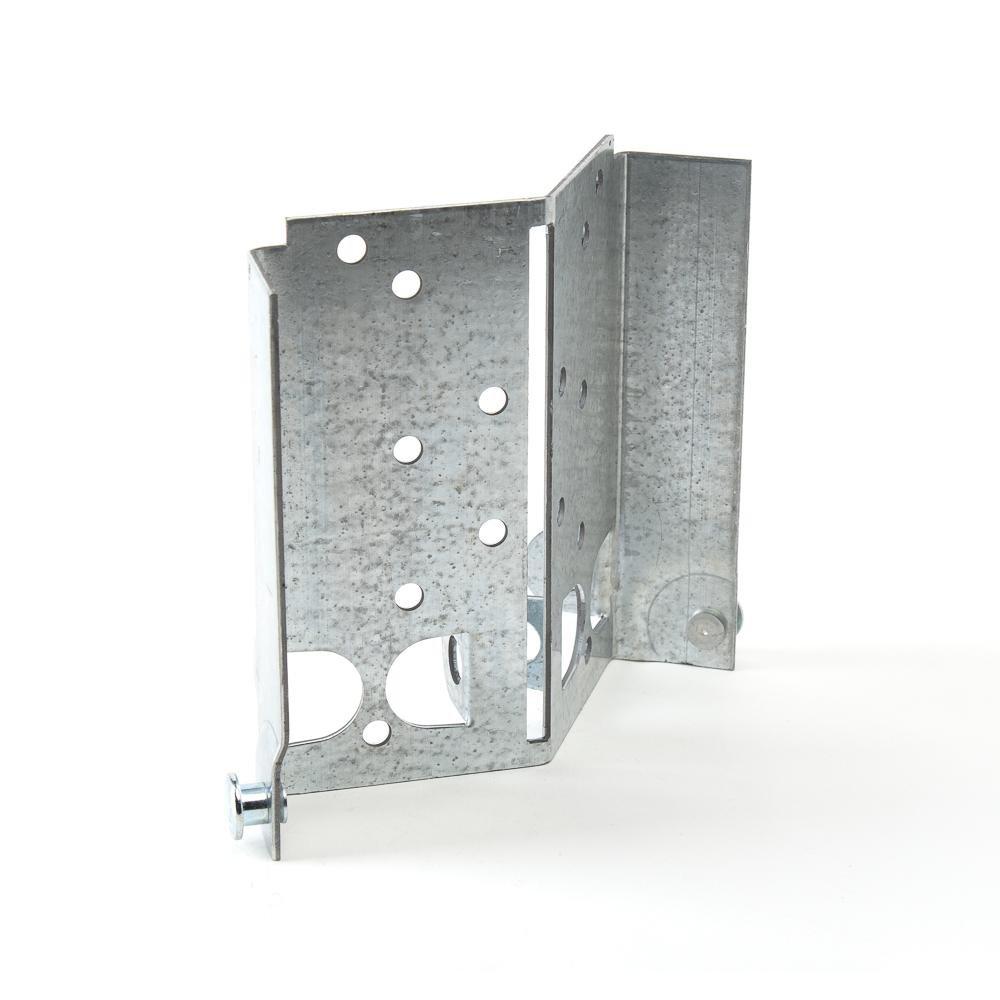

Residential Milford Pin Bottom Bracket BB-1 Pair

Residential Milford pin bottom bracket pair for 2" track. Often replaced with end hinges and rollers when refreshing bottom fixtures. See BB-100 for the alternate size.

Install and safety: Bottom brackets sit under full spring tension. Disconnect the opener, release spring tension before removing cables or brackets, and replace one side at a time. If you are not trained for spring work, use a qualified technician.

BB-1 vs BB-100: Use BB-1 when matching this Milford-pin pattern and size (about 2 5/8" wide, 5 5/8" high, 1/4" side flange). Choose BB-100 when your existing bracket matches the BB-100 footprint (taller/wider pattern with 1-1/4" side flange). Measure width, height, flange, and pin before ordering.

Related: Residential Milford Pin Bottom Bracket BB-100 Pair, 2" Nylon Roller with 11 Ball Bearings - 4" Zinc Plated Stem, Residential Wide Body Hinge 16 Gauge.

• Pair of Brackets
• Pins & Cotters Included

Specifications

• 13 Gauge
• Milford Pin - 7/16" post diameter, 11/16" post length, 11/16" diameter end cap.
• 2 5/8" width
• 5 5/8" height
• 1 1/2" thick
• 1/4" side flange

Features:

• Top quality galvanized steel.
• for 2" track
• for 1 3/8 - 2" doors
