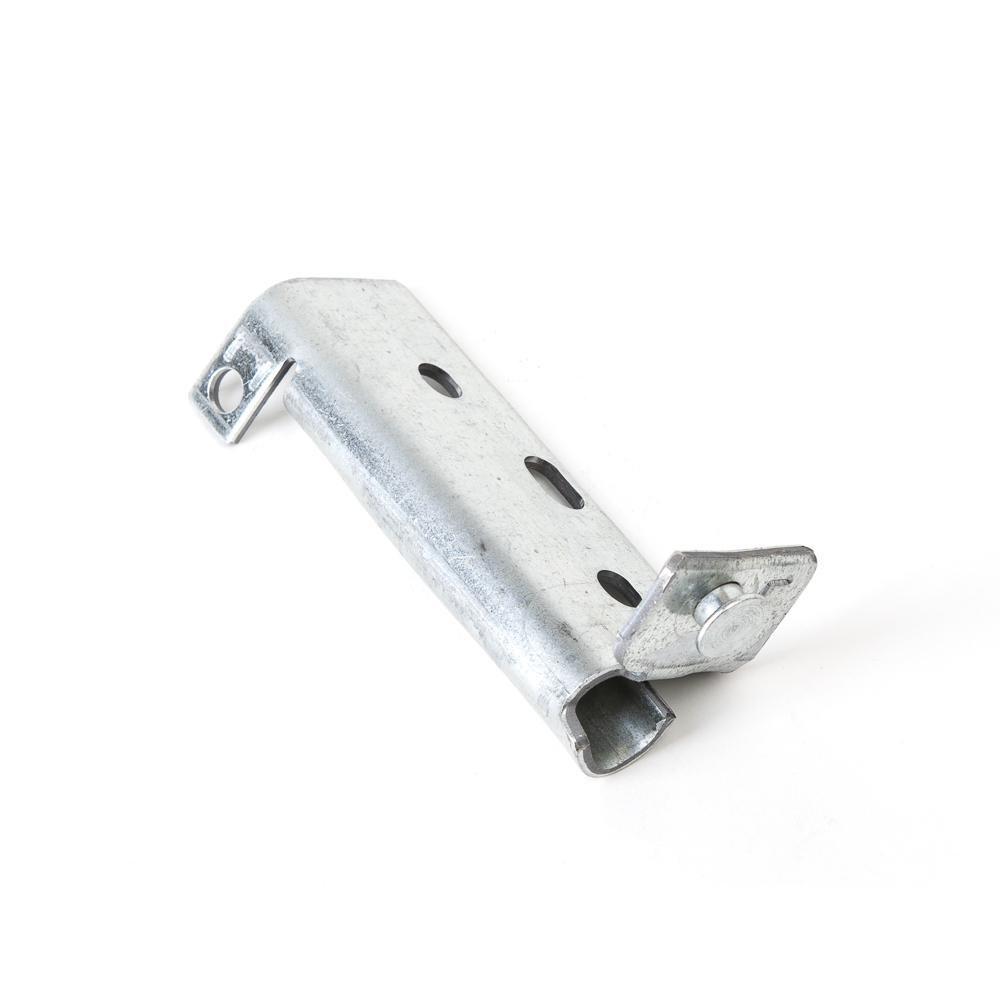

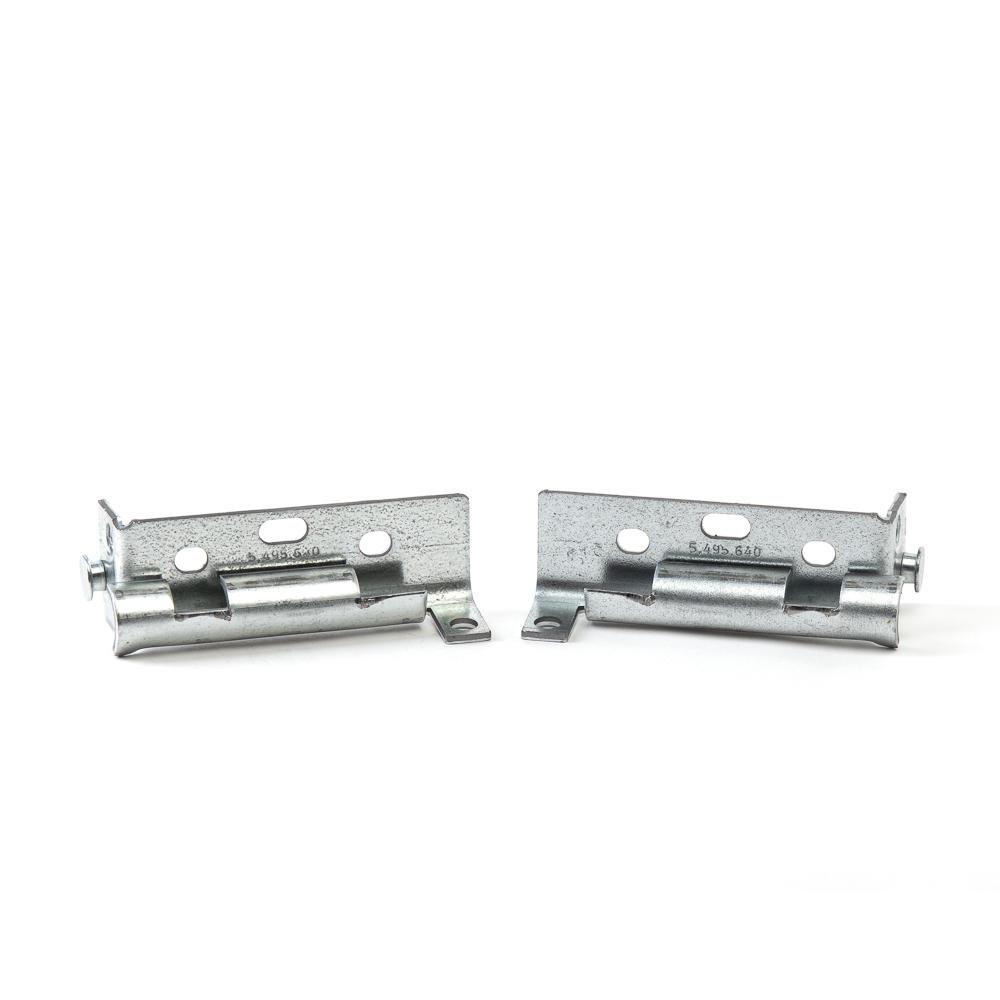

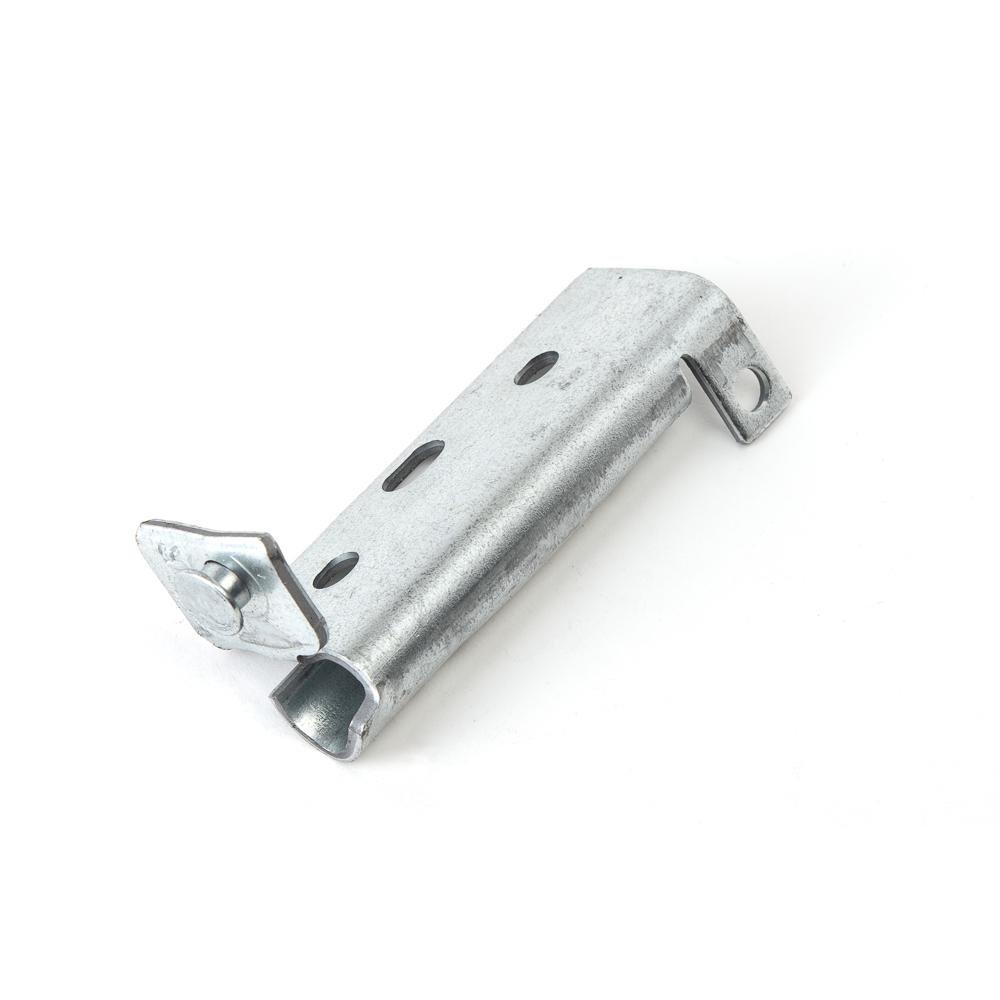

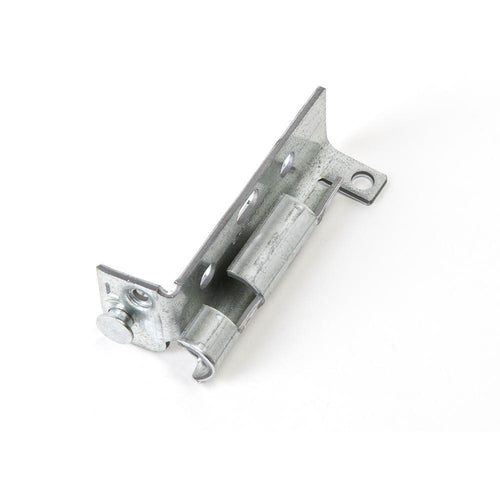

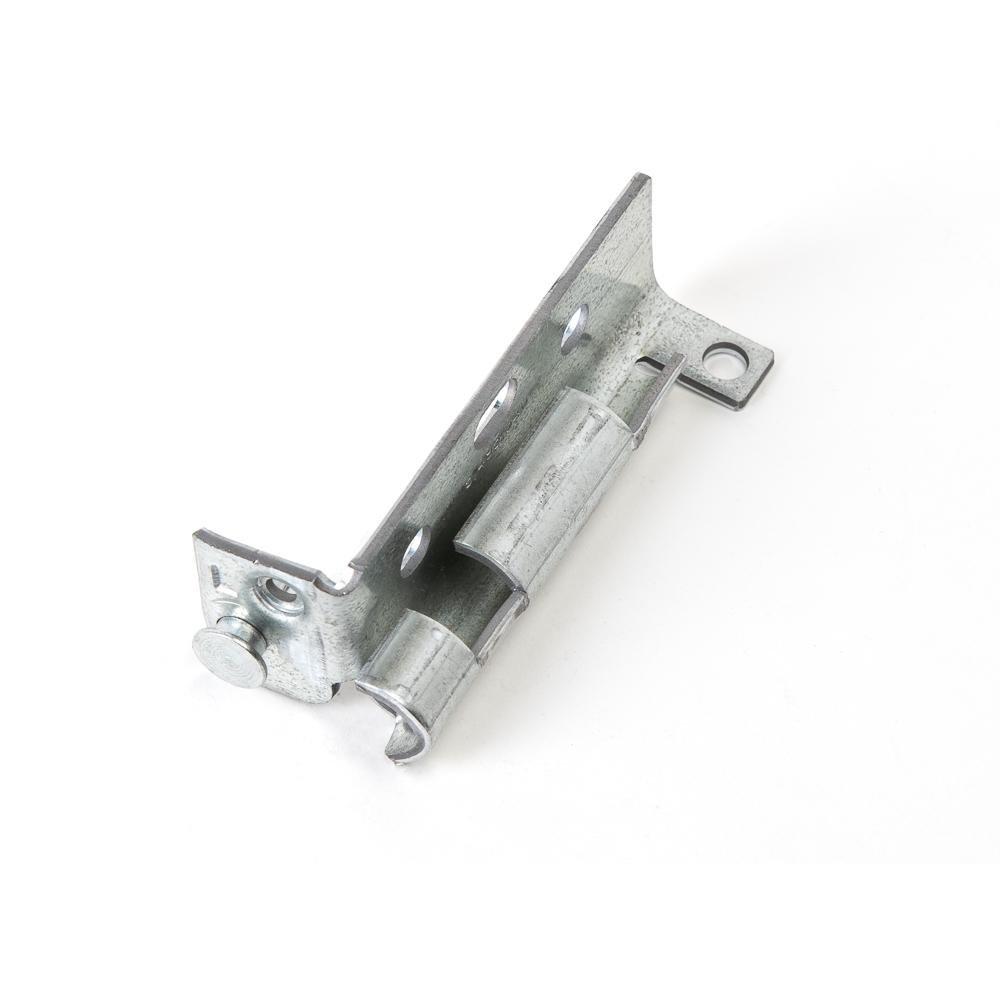

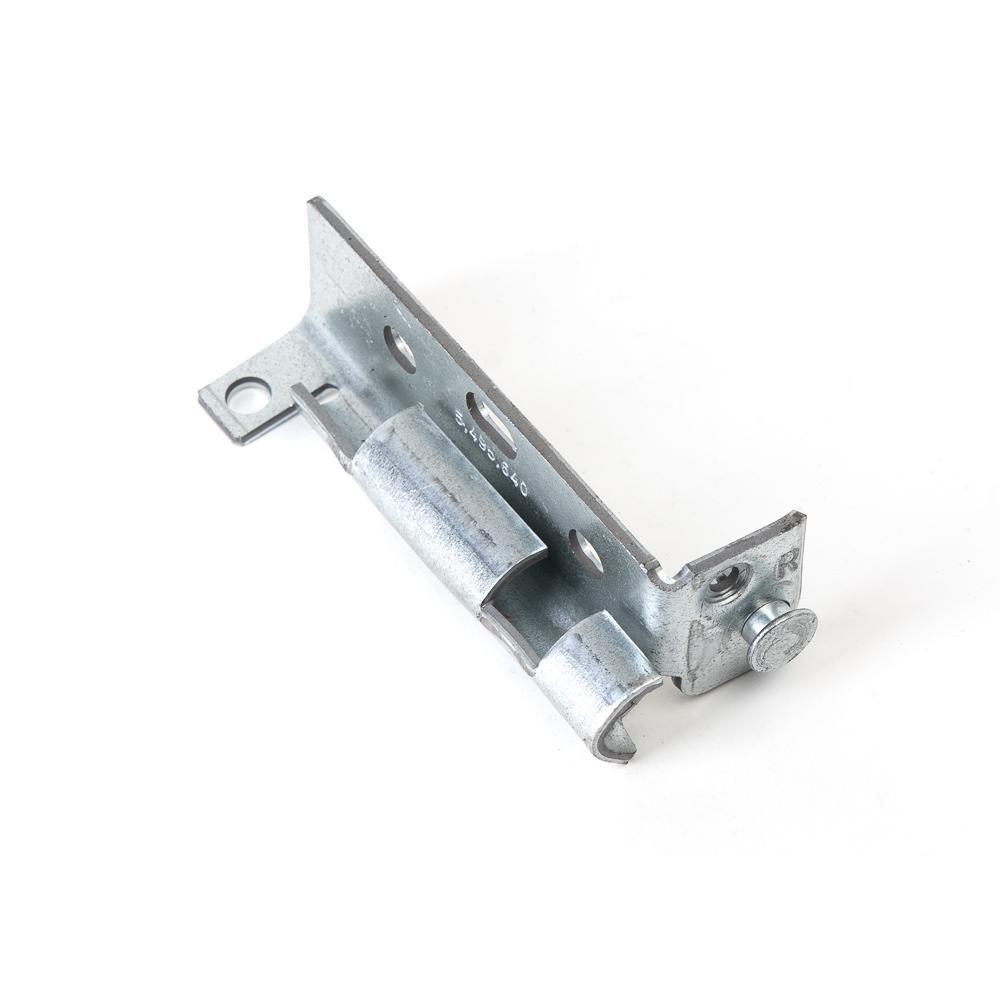

Wayne Dalton Residential Milford Pin Bottom Bracket Set

SKU: WD-236515-set

Old Part Number: 236515, 236514
Description

Wayne Dalton Residential Milford Pin Bottom Bracket Set

Compatible with Wayne Dalton 9100, 9400, 9600, 9800, Foamcore II garage door models.
Always use caution when replacing bottom fixtures as they can be under extreme tension. All spring tension must be removed prior to replacement.
Sold as a pair, or individually left and right hand.

Includes:
  • Left and Right Side Bracket (when selecting pair)
  • Pins & Cotters Included
Features:
  • Top quality galvanized steel.
Specifications:
  • 4" Wide
  • 1.25" High
  • 1" side flange with milford pin
Compatibility
Compatible with:
  • Compatible with Wayne Dalton Model 5120, 5140, 6100, 9100, 9400, 9600, 9700, Foamcore II, and several other Garage Door models.
  • Always use caution when replacing bottom fixtures as they can be under extreme tension.
Old Part Number: 236515, 236514
