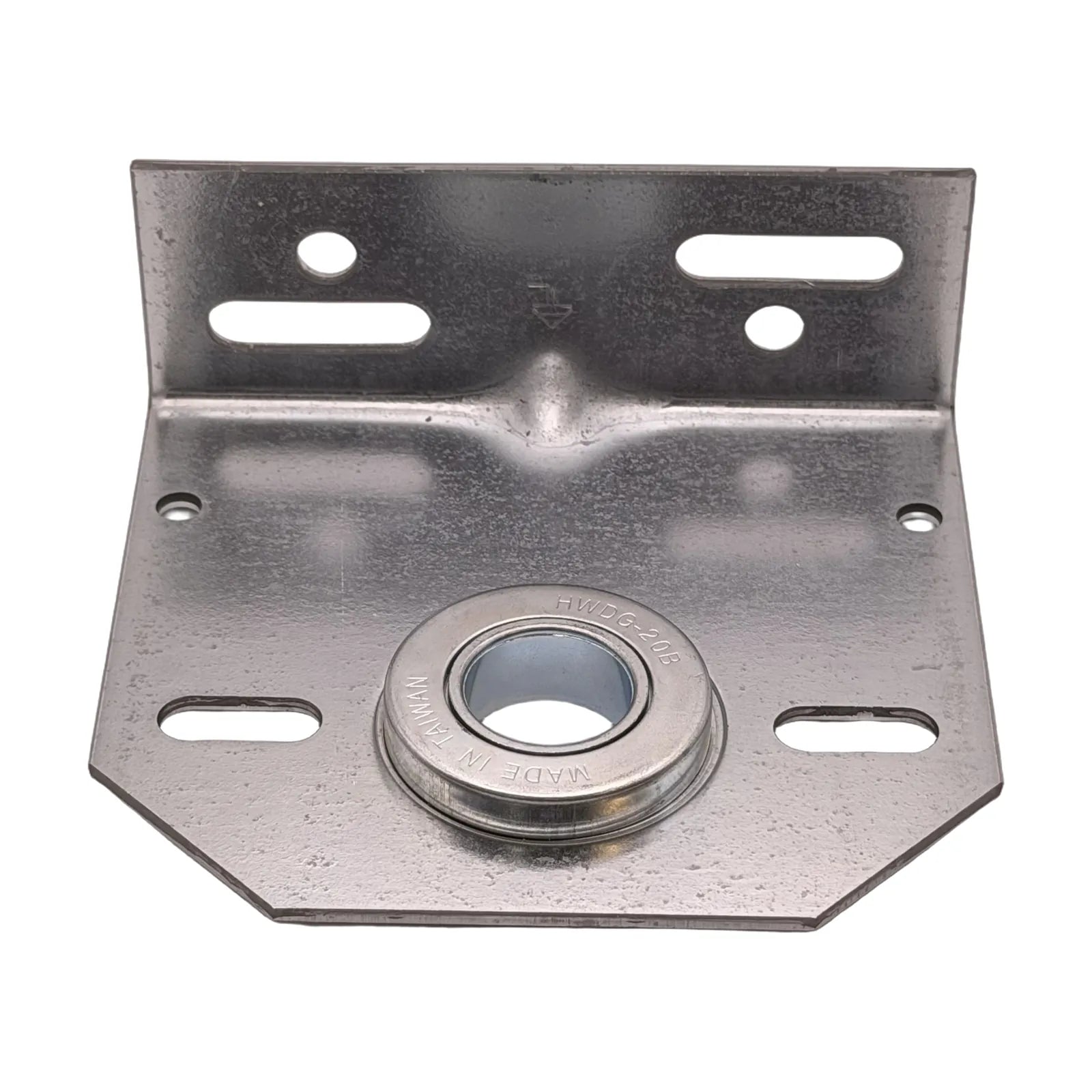

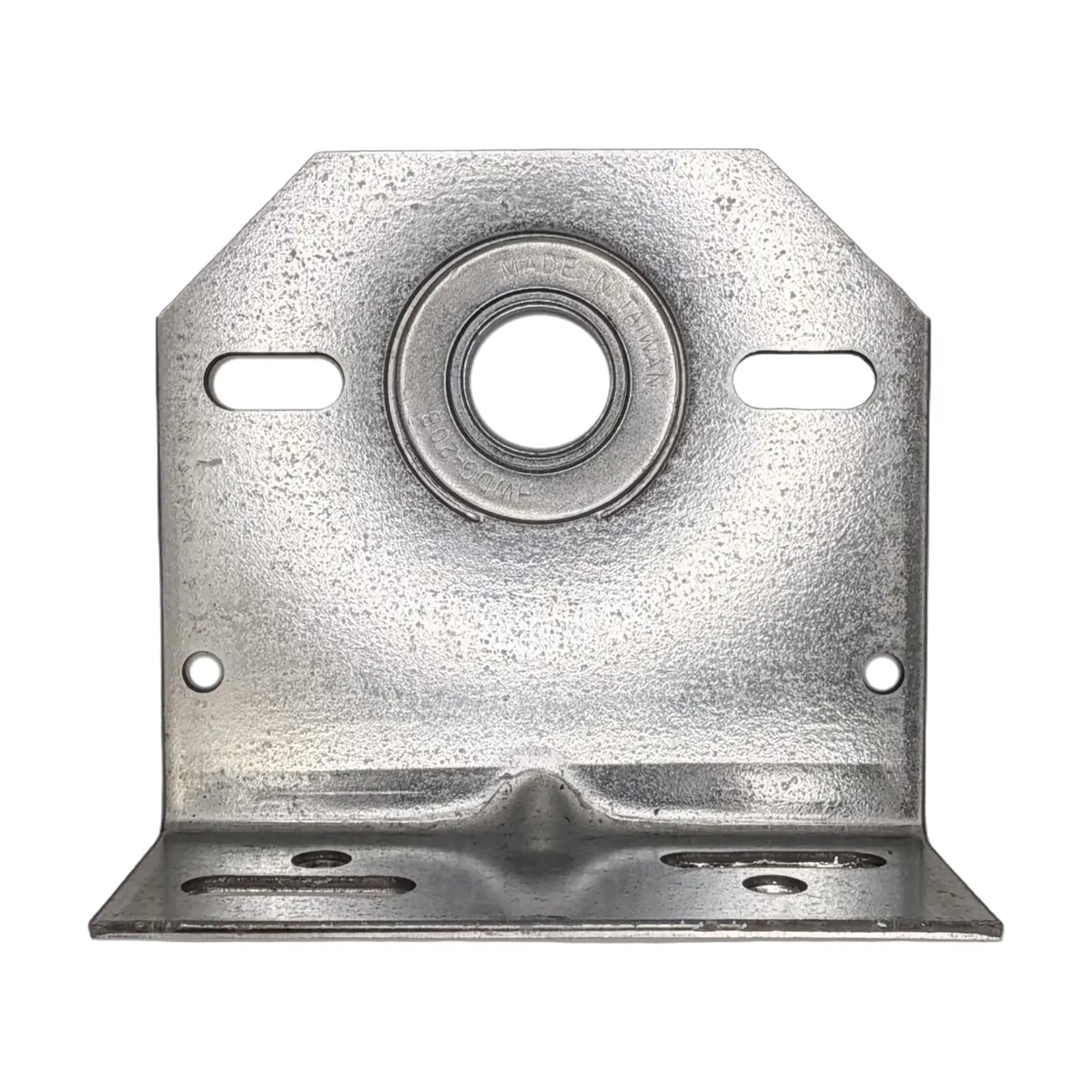

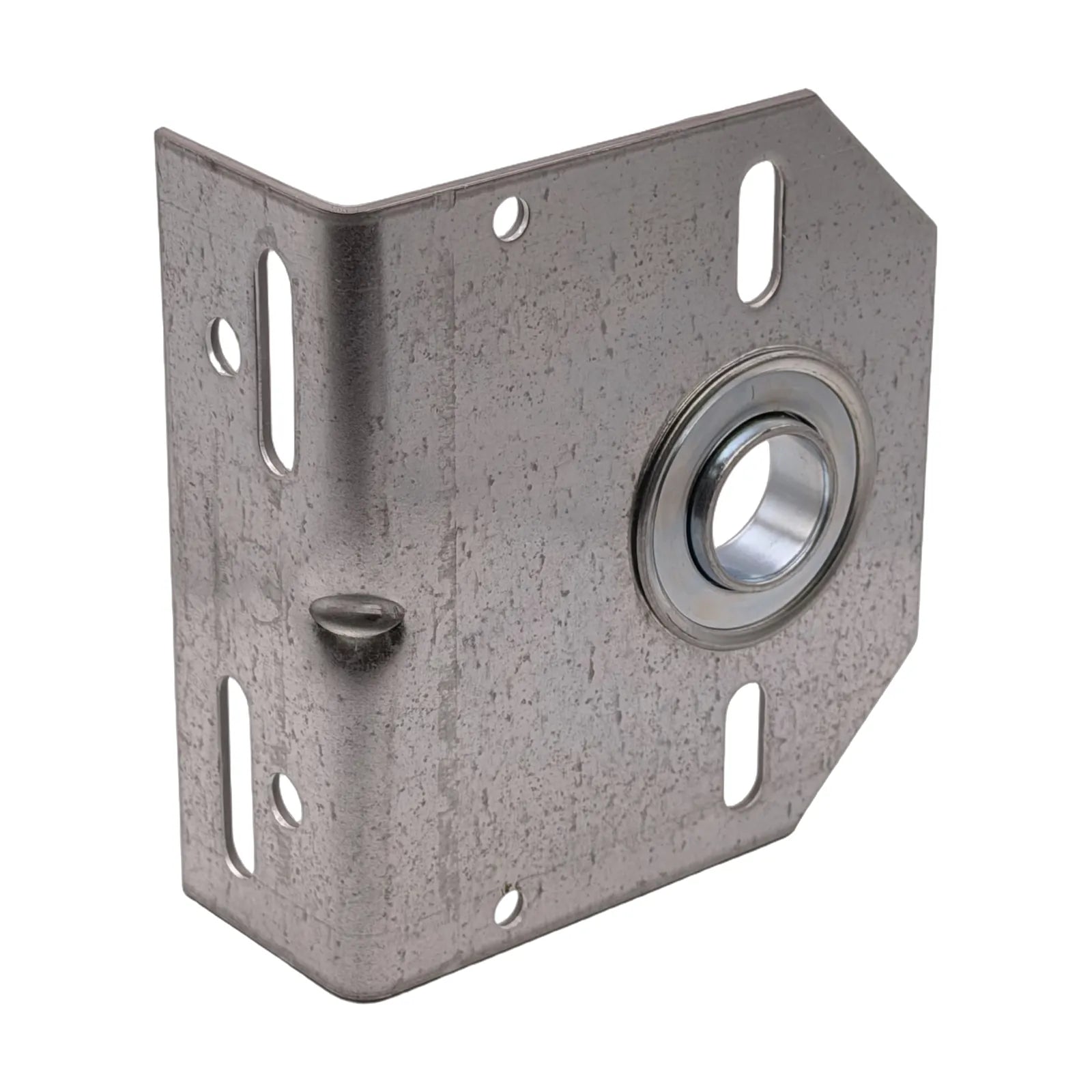

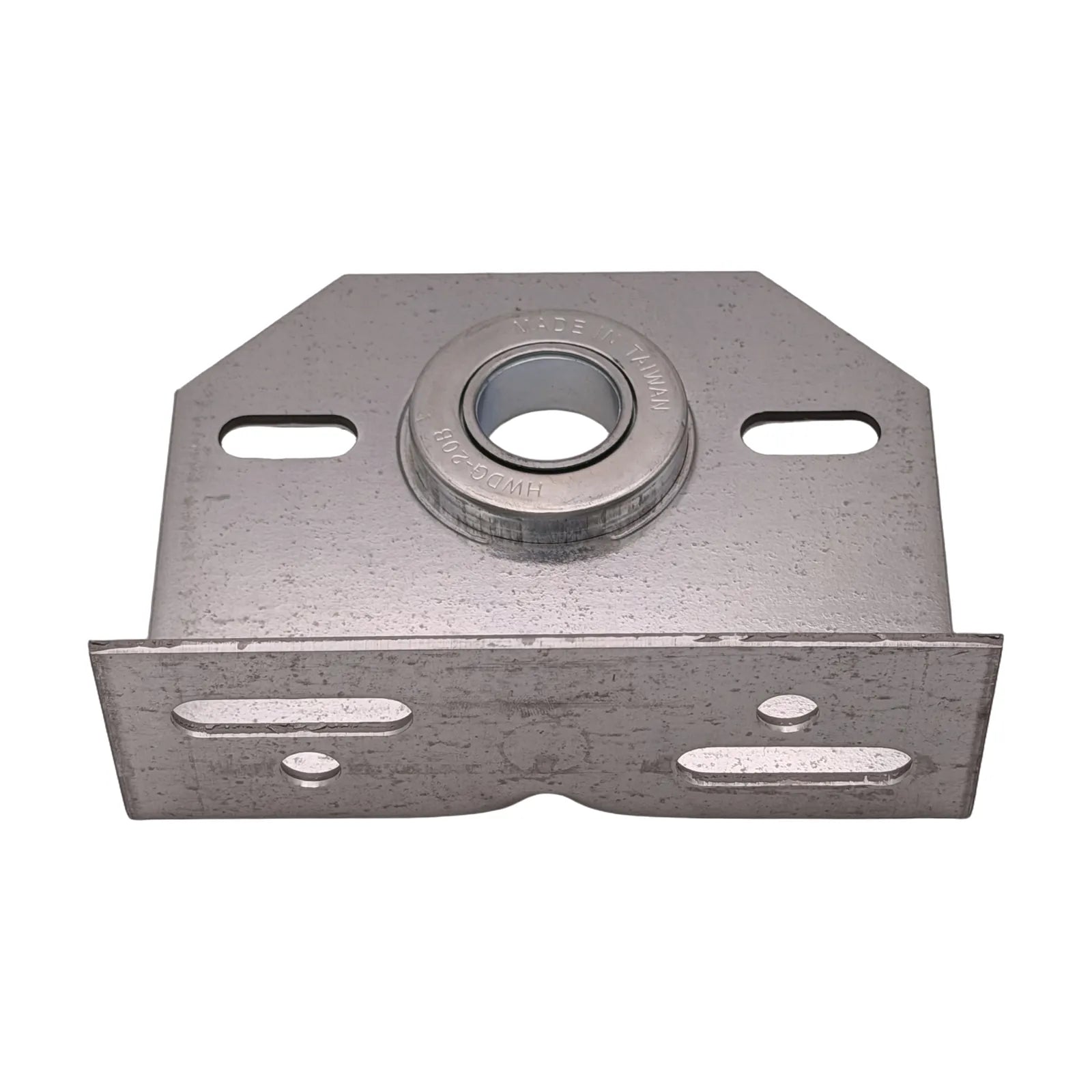

3 3/8 in. Offset 11 ga. Center Bearing Support with Bearing

Keep your torsion spring system solid and smooth with this 3 3/8 in. offset center bearing support. It mounts to the header above the middle of your garage door, holds a standard 1 in. torsion shaft in place with its built in bearing, and gives the stationary end of the springs a sturdy place to anchor.

It is made from 11 gauge galvanized steel, so it stands up to spring tension and resists rust in a damp garage. The bearing comes already pressed into the plate, so it is ready to install right out of the box.

Great for

• Replacing a bent, cracked, or rusted center bearing plate
• Fixing a worn or noisy center bearing in one step
• Torsion spring installs and spring conversion projects

Specs and dimensions

• Offset: 3 3/8 in.
• Material: 11 gauge steel
• Finish: Galvanized
• Bearing: HWDG-20B flanged bearing, pre installed
• Shaft size: Fits standard 1 in. torsion shafts (1 in. ID x 2 in. OD bearing)
• Plate height: About 5 1/2 in.
• Plate width: About 5 in.
• Mounting flange depth: About 2 in.
• Bearing center: About 2 3/4 in. from the top and bottom edges (centered on the plate)
• Mounting: Slotted and round holes on both the wall flange and the bearing plate for easy adjustment

What's included

• 1 center bearing support with bearing (sold individually)

Plate measurements are approximate, taken by hand.

Before you order: measure the offset on your current plate (the distance from the mounting surface to the center of the shaft) to make sure 3 3/8 in. is the right fit. Not sure? Reach out to our team at Express Garage Doors and we will help you match it.

Safety note: torsion springs are under high tension. Always unwind the springs fully before removing or replacing a center bearing support.
