Wayne Dalton Garage Door Lock Kit Assembly

Wayne Dalton

PART NUMBER: WD-237138

In Stock
Wayne Dalton Lock Kit Assembly

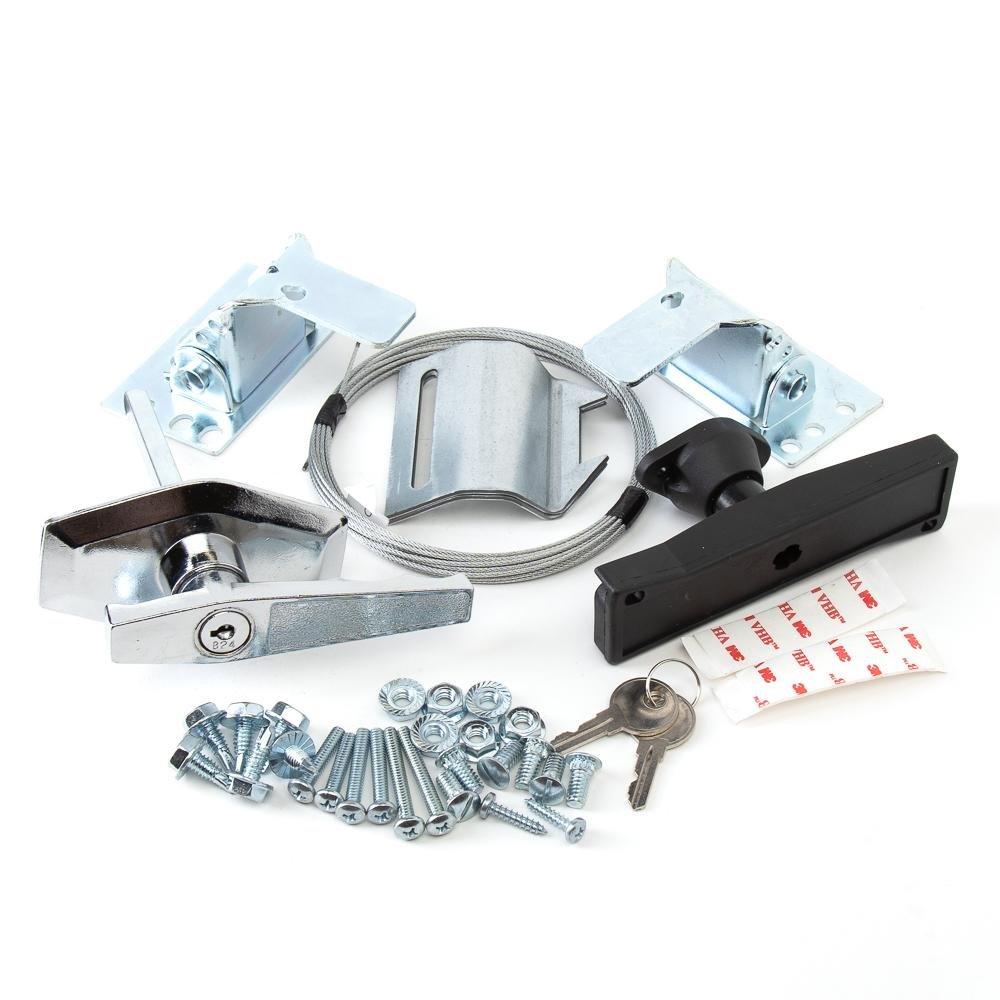

Genuine Wayne Dalton garage door replacement lock kit. This Wayne Dalton lock kit includes outside Lock Handle, Striker Plates, Autolatch flippers, Inside door handle, Lock cable, screws, nuts and bolts. Does not include lock stile.

Have more than one door you want to use the same key for? Get them keyed alike! You can now select the option above to have multiple lock kits keyed the same.

Includes

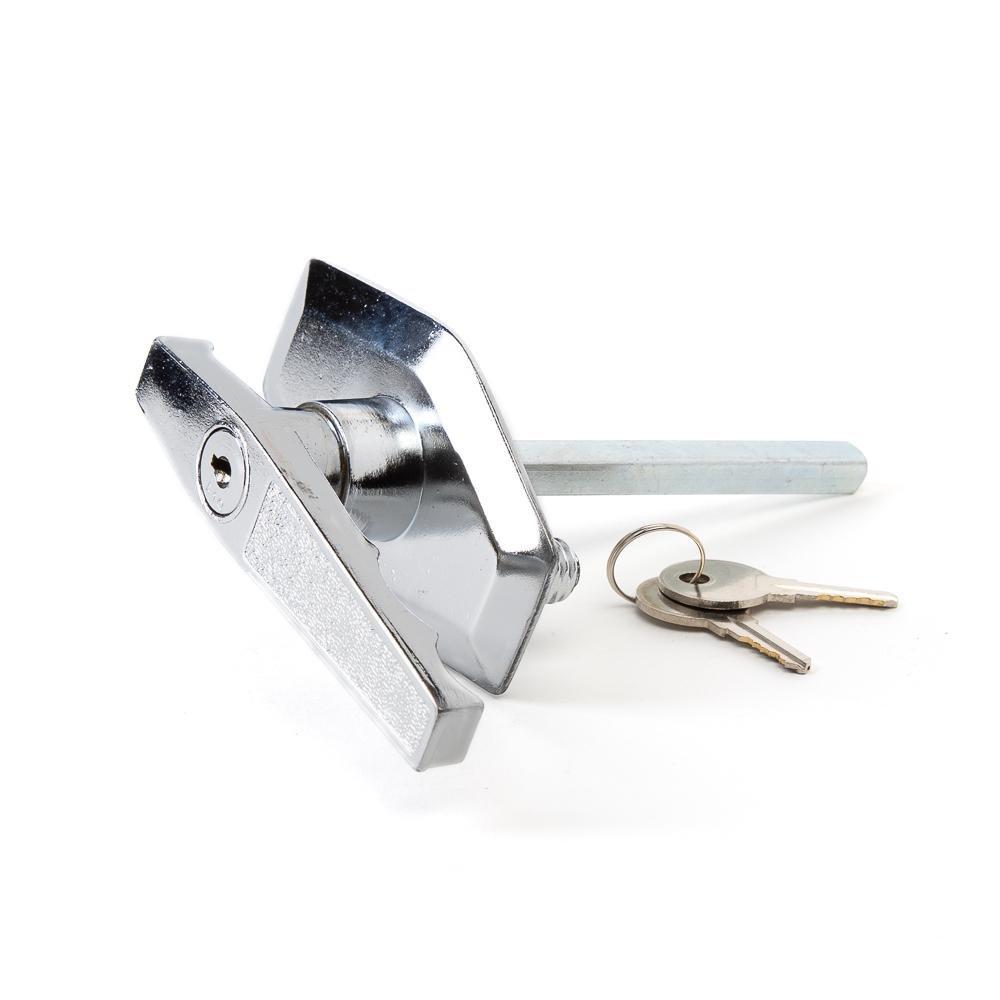

  • Outside Lock Handle
  • 2 Striker Plates
  • 2 Autolatch flippers
  • Inside door handle
  • Lock cables
  • 2 Keys
  • screws, nuts, and bolts
  • Installation Instructions

Specs:

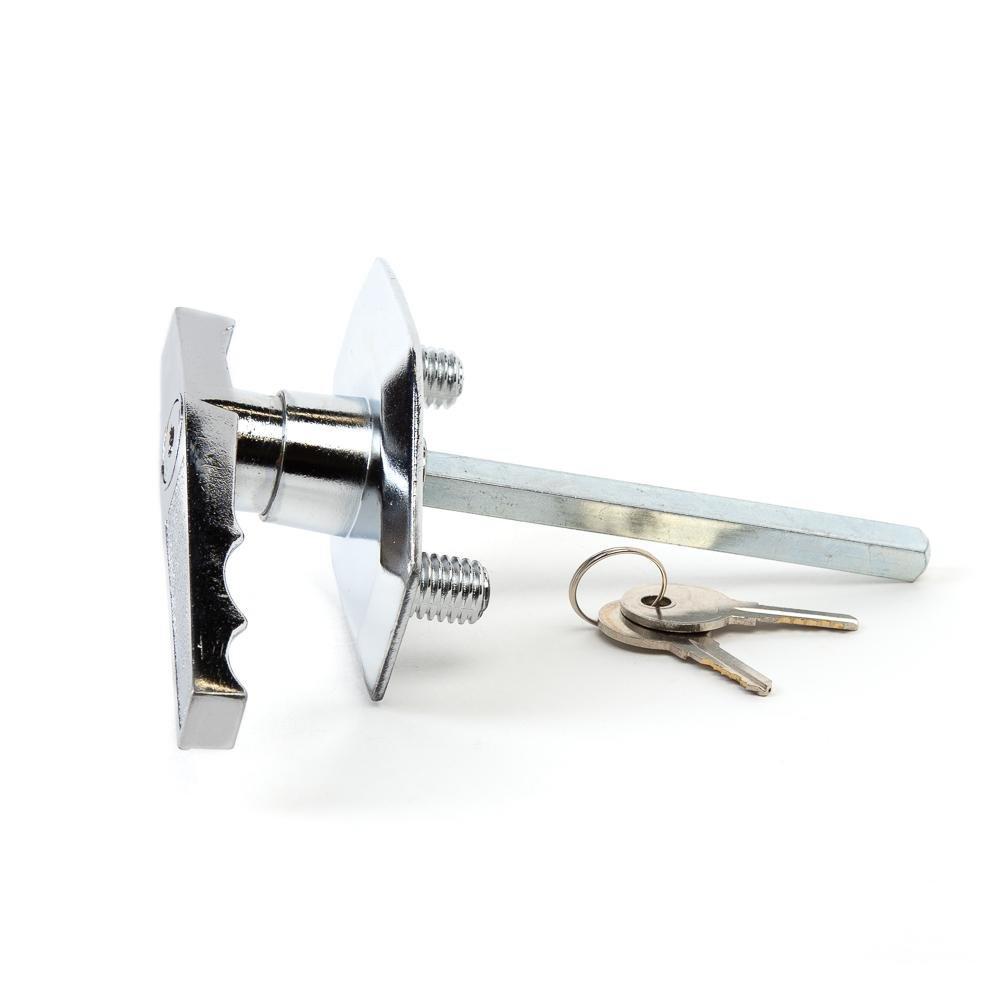

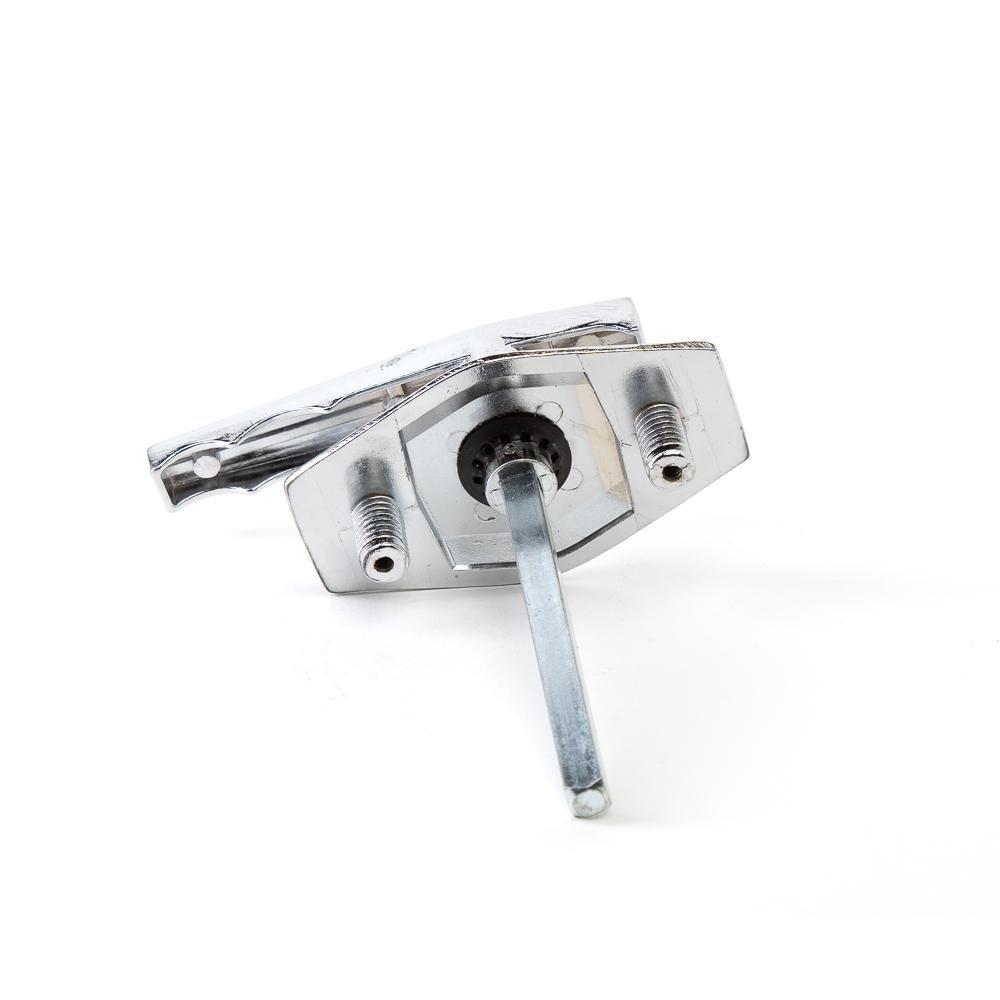

  • Screw posts distance center to center - 2-1/2"
  • Screw post outer diameter 7/16" x 9/16" length
  • Screw post to square shaft center to center - 1-1/4"
  • Square lock shaft - 5 /16" x 4" length
  • Shaft length - 4"
  • Handle length - 5-1/2"
  • Plate - 3-13/16"height x 2-3/8"width
  • Works with #8 self tapping screws of varying lengths (depending on door thickness)

Please Note: The lock backup plate (only needed for some wood doors), and the lock stile are not included in this kit. The items listed above and pictured are all that is included. Order the lock stile if you need it here - Wayne Dalton Universal Lock Stile

Features:
  • Easy installation
  • Manufacturer replacement part
Specifications:
  • Part No: 237138
  • Old part numbers: 311953, 307895
  • Manufacturer: Wayne Dalton
  • Warranty: Mfg 1 year
Compatible with:
  • Wayne Dalton Garage Door Models 6100, 8000, 8100, 8200, 8300, 8500, 9000, 9100, 9600, and wood doors
