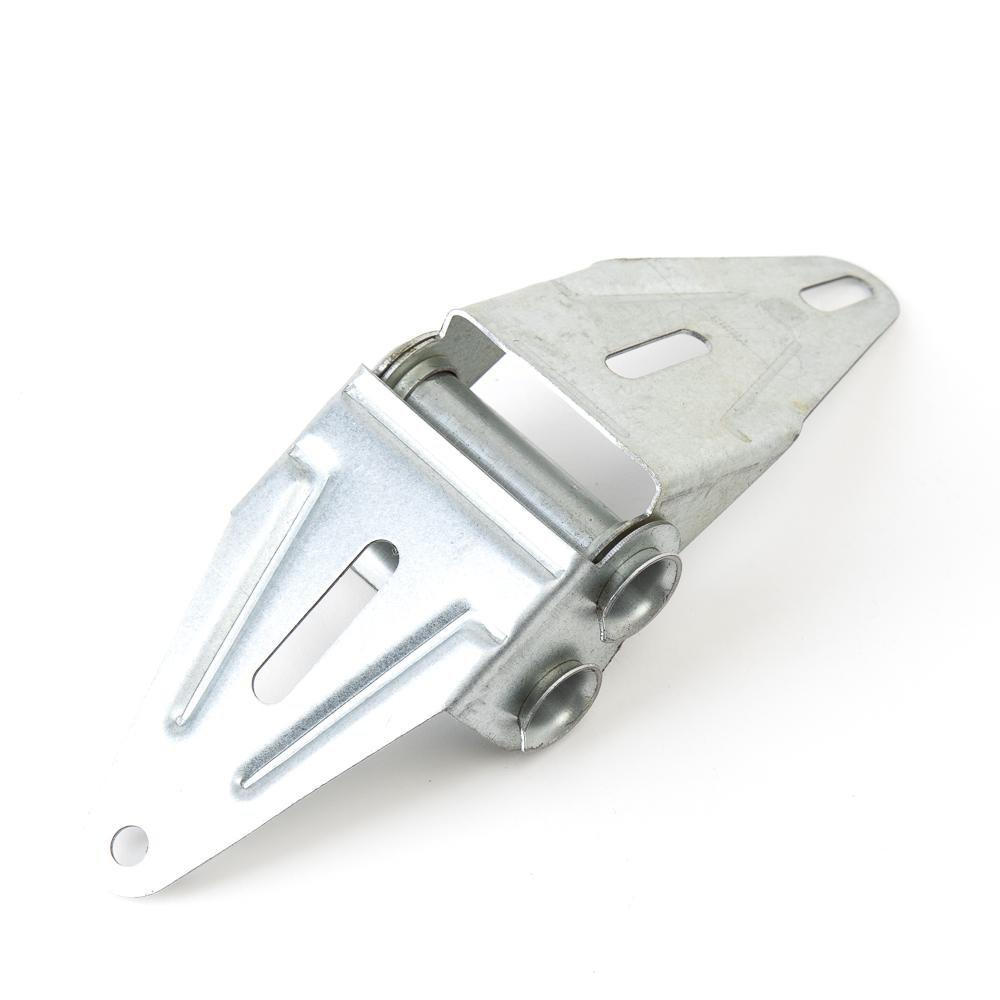

Residential Narrow Body Hinge 18 Gauge #1-#4

Residential 18-gauge narrow body hinges. Use the stamped number (#1-#4) to match end vs center positions. Pair with matching rollers when refreshing a door.

Related: 2" Nylon Roller with 11 Ball Bearings - 4" Zinc Plated Stem, Universal Quieting Garage Door Kit, Residential Wide Body Hinge 16 Gauge.

• Top quality 18 Gauge (about the thickness of a dime) galvanized steel.
• Used for Residential: Aluminum, Wood, and Steel applications.
• Assorted hinge bracket hole combinations.
• Look at your existing garage door hinge and find the number stamped on hinge to determine correct number size.

These hinges are approximately 2.25" wide and 7.25" long. Overall leaf size is the same across numbers; the stamped number (#1-#4) sets roller carrier height for the door's track angle.

Sizes:

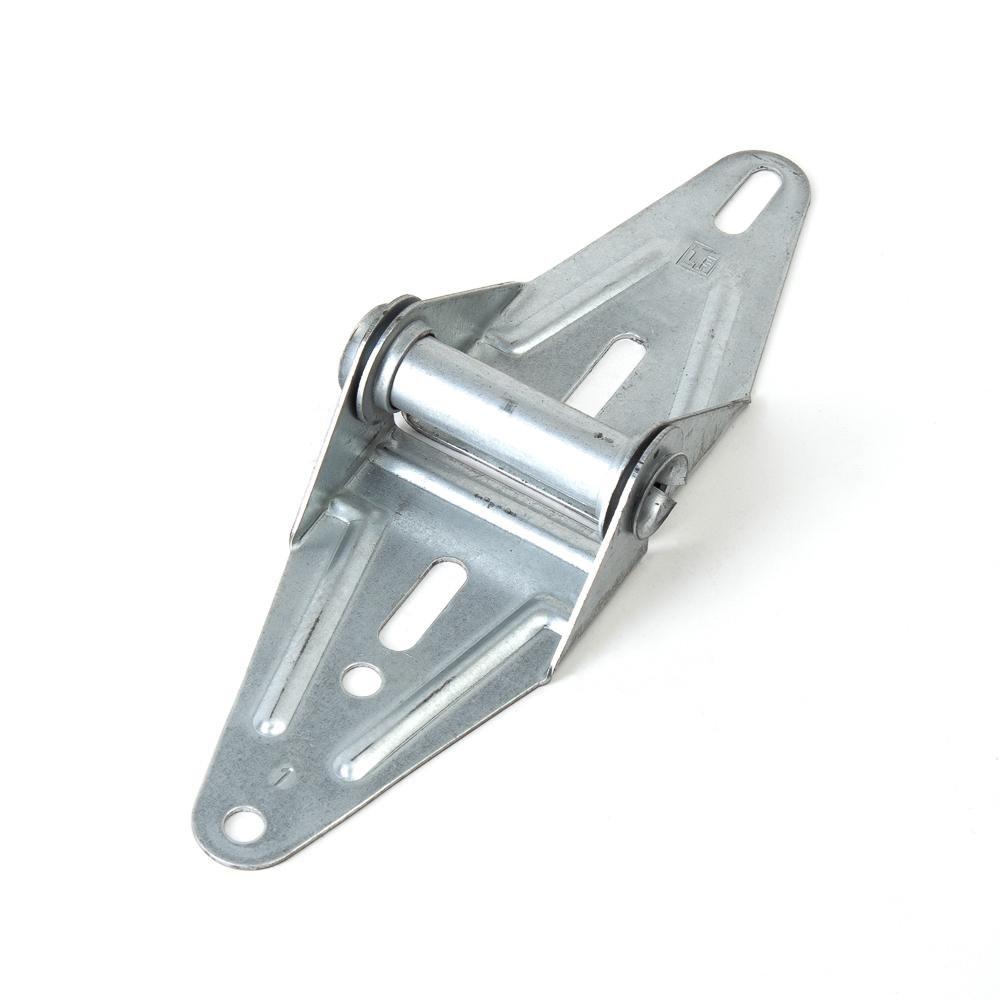

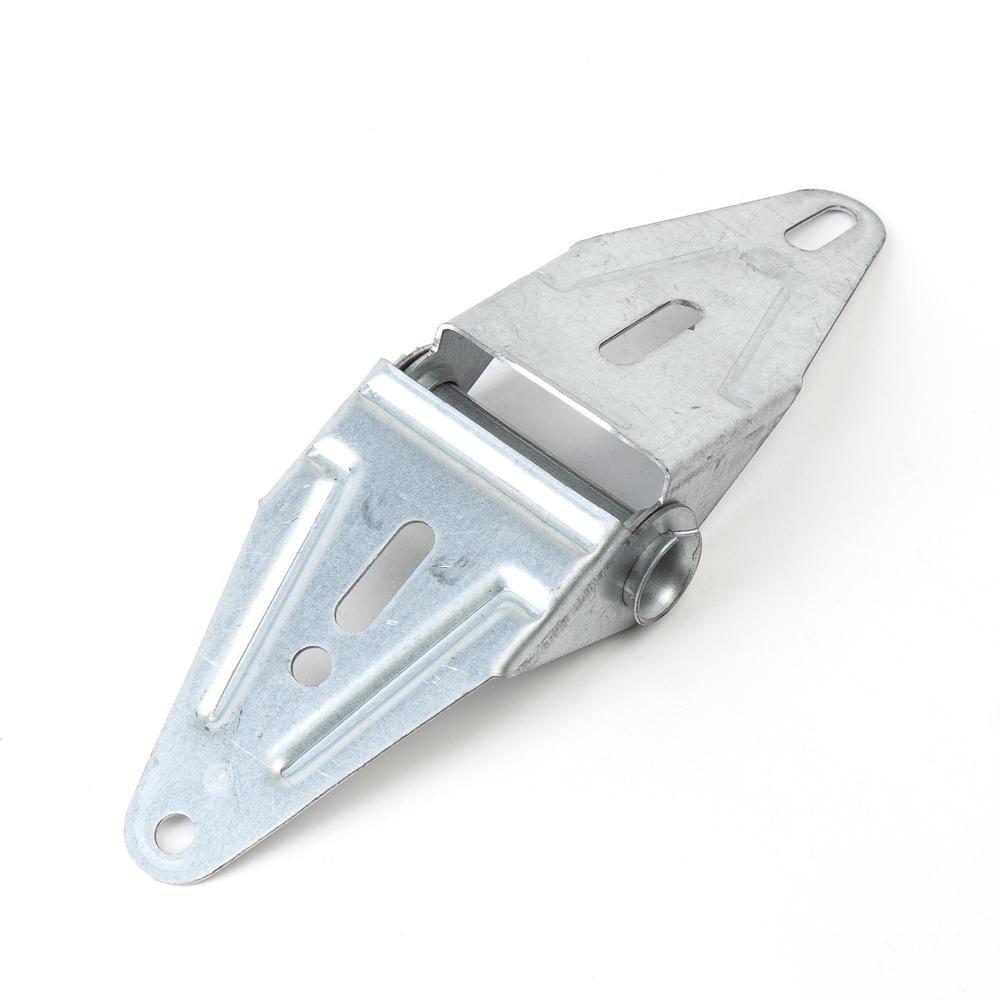

• #1 (RS-300-10000) - Center hinges; often end hinge on bottom section.

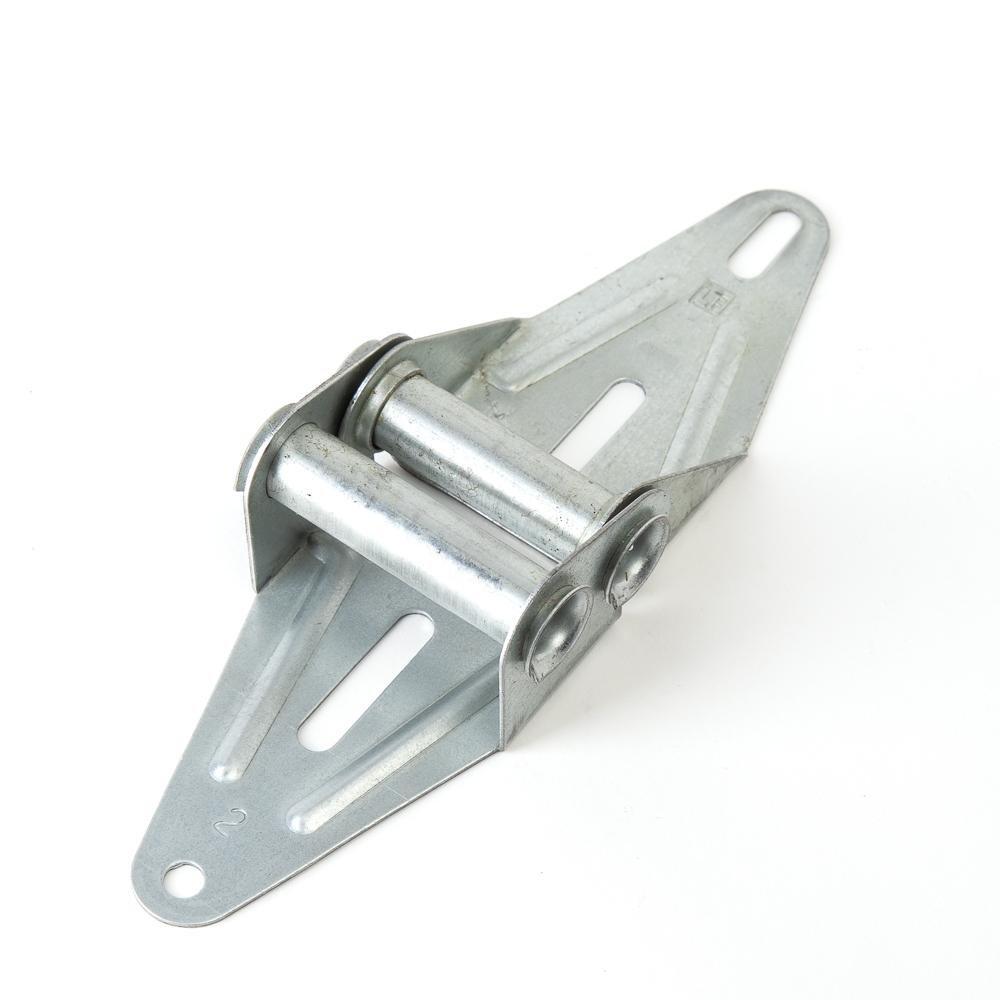

• #2 (RS-300-10002) - End hinge between 2nd and 3rd panels (higher roller stand-off than #1).

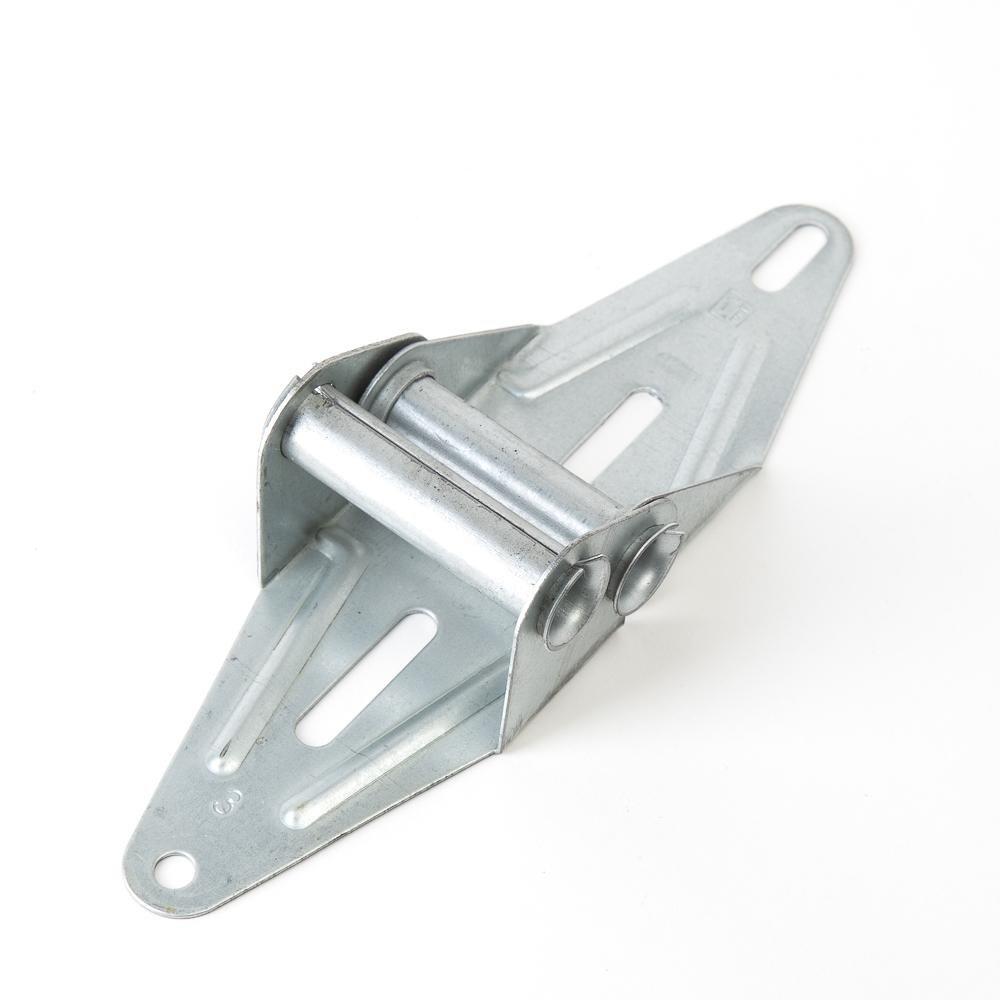

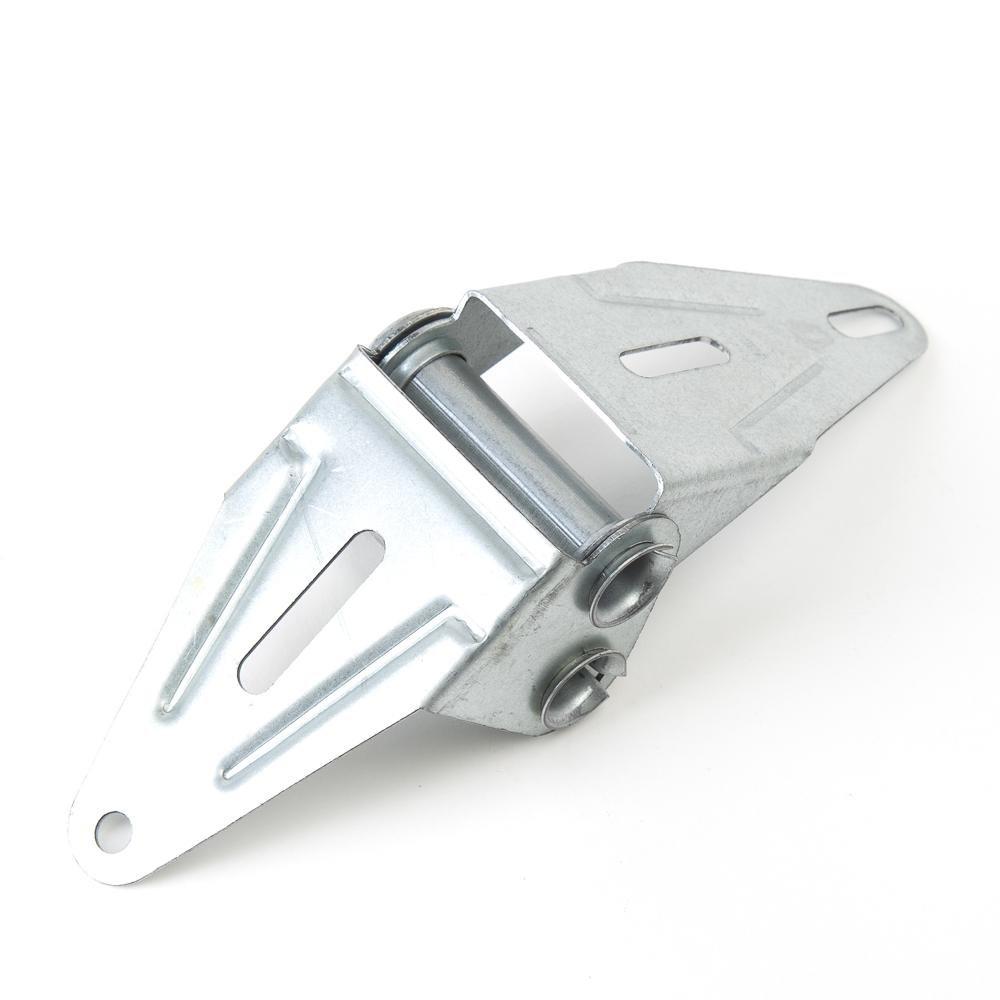

• #3 (RS-300-10003) - End hinge between 3rd and 4th panels.

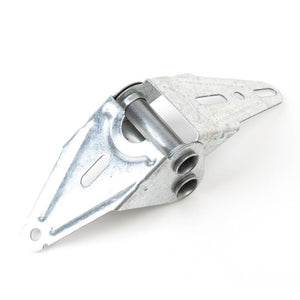

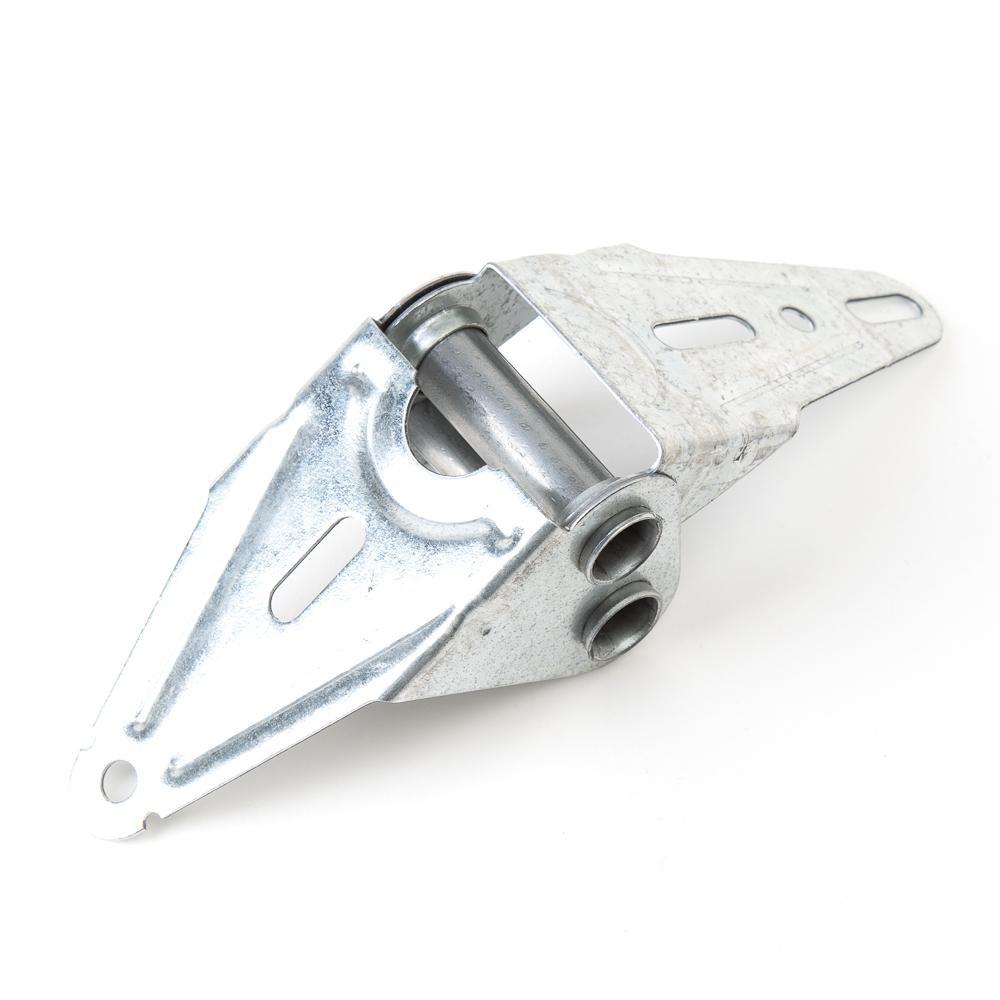

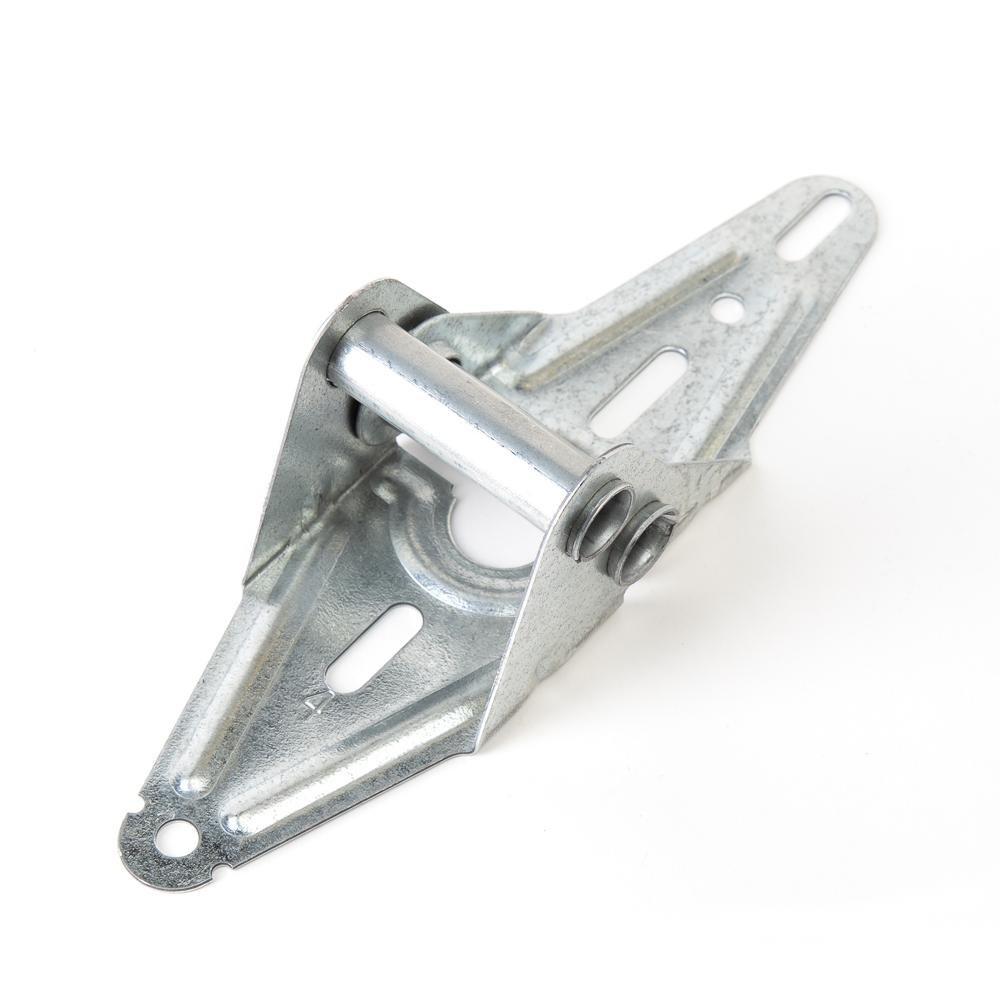

• #4 (RS-300-10004) - End hinge on taller door stack.

Match the number stamped on your hinge. Need a wider leaf? See 16 gauge wide body hinges (~2.75" wide) or 14 gauge wide body hinges for heavier doors. Pair with rollers and a quieting kit when refreshing hardware.
